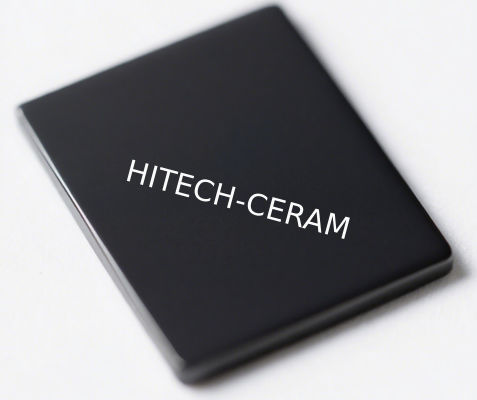

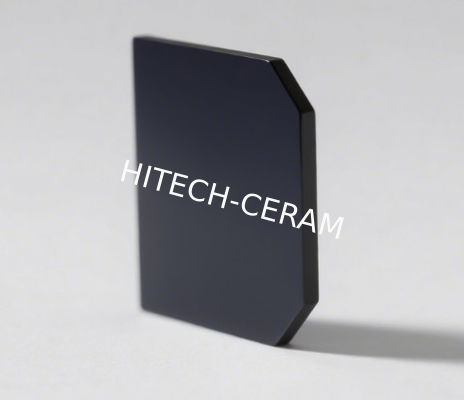

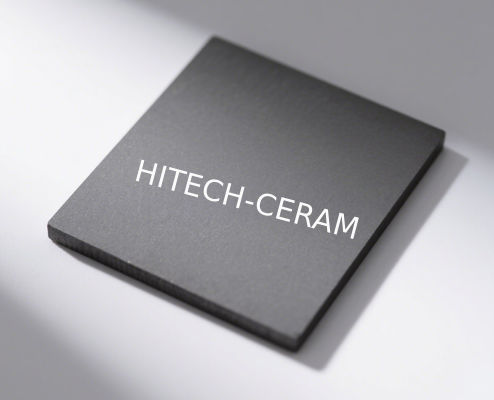

NIJ Certified Silicon Carbide Body Armor with Multi-Hit Capability and Lightweight Defense for Ballistic Protection
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Summary
Silicon Carbide Ceramic Armor: Superior Ballistic Protection Our advanced silicon carbide (SiC) ceramic armor represents the pinnacle of ballistic materials technology, combining exceptional hardness (9.5 Mohs) with significantly reduced weight to deliver unmatched protection for personnel and ...
Product Details
Highlight:
Vehicle Armor Silicon Carbide Ceramics
,Bulletproof Silicon Carbide Ceramics
,Body Armor Plates SIC Ceramics
Material:
SiC
Composition:SiC:
>98%
Color:
Black
Density:
>3.05g/cm3
Max. Service Temp:
1650°C
Flexural Strength:
380MPa
Usage:
Industry Usage
Chemical Composition:
Al2O3, SiO2
Sic Content:
85%
Maximum Temperature:
1600℃
Characteristics:
High Wear Resistance
Thermal Expansion Coefficient:
4.0-4.5 × 10^-6 /K
Material Composition:
4%Si >96%Sic
Working Temperature:
1650
Advantage:
Wear And Abrasion Resistance
Purity:
98%
Material:
Silicon Carbide Ceramic
Acid Alkaline Proof:
Excellent
Solubility:
Insoluble
Open Porosity:
<0.1%
Flexural Strength:
350-550 MPa
Product Description
Silicon Carbide Ceramic Armor: Superior Ballistic Protection
Our advanced silicon carbide (SiC) ceramic armor represents the pinnacle of ballistic materials technology, combining exceptional hardness (9.5 Mohs) with significantly reduced weight to deliver unmatched protection for personnel and vehicles against high-velocity and armor-piercing threats.
Key Ballistic Advantages
- Multi-Hit Capability: Maintains structural integrity under successive impacts, ensuring reliability in dynamic engagements
- Lightweight Defense: Up to 70% lighter than steel armor at equivalent protection levels, reducing wearer fatigue and increasing mobility
- Full NIJ Standard Compliance: Independently certified performance across protection levels I through IV
- Customizable Geometry: Available in square, hexagonal, cylindrical, and other configurations to fit any armor system design
- Advanced Manufacturing: Utilizing both Pressureless Sintering (SSiC) and Reaction-Bonding (RSiC) to optimize performance and cost-efficiency
Technical Performance Specifications
| Protection Level | Test Rounds | Velocity Range | Certification Standard |
|---|---|---|---|
| I - III-A | .22 LR - .44 Magnum | 322 - 436 m/s | NIJ 0101.04 |
| III - IV | 7.62mm NATO - .30 Cal AP | 847 - 878 m/s | NIJ 0101.04 |
Material Selection Guide
The optimal type of silicon carbide depends on your specific requirements for ballistic performance, temperature resistance, and budget.
NIJ 0101.04 Ballistic Test Summary
| Class | Test Bullet | Bullet Weight | Velocity (m/s) | Distance (m) | Max BFD (mm) |
|---|---|---|---|---|---|
| I | .22 Caliber LR LRN | 2.6 g (40 gr) | 329 ± 9 | 5 | 44 |
| I | .380 ACP FMJ RN | 6.2 g (95 gr) | 322 ± 9 | 5 | 44 |
| II-A | 9mm FMJ RN | 8.0 g (124 gr) | 341 ± 9 | 5 | 44 |
| II-A | .40S&W FMJ RN | 11.7 g (180 gr) | 322 ± 9 | 5 | 44 |
| II | 9mm FMJ RN | 8.0 g (124 gr) | 367 ± 9 | 5 | 44 |
| II | .357 Mag JSP | 10.2 g (158 gr) | 436 ± 9 | 5 | 44 |
| III-A | 9mm FMJ RN | 8.2 g (124 gr) | 436 ± 9 | 5 | 44 |
| III-A | .44 Mag JHP | 15.6 g (240 gr) | 436 ± 9 | 5 | 44 |
| III | 7.62mm NATO FMJ | 9.6 g (148 gr) | 847 ± 9 | 15 | 44 |
| IV | .30 Caliber M2 AP | 10.8 g (166 gr) | 878 ± 9 | 15 | 44 |
BFD: Back Face Signature (Trauma Impression)
Primary Applications
- Personal Protection Systems
- Tactical Body Armor Plates
- Special Operations Equipment
- Vehicle Armor Solutions
- Light Tactical Vehicles
- Naval Craft Protection
- Critical Asset Shielding
Engineering & Customization Support
Our ballistic experts provide comprehensive technical consultation to integrate our ceramics into your armor solution.
- Threat Level Assessment
- Armor System Integration
- Custom Shape & Geometry Development
- Performance Validation Testing
