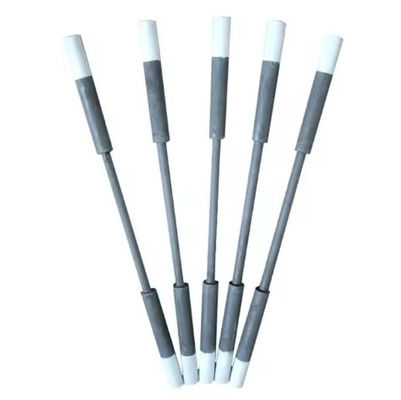

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Large Image :  Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Description
Material: SiC Composition:SiC: ＞98%
Color: Black Density: ≥3.05g/cm3
Max. Service Temp: 1650℃ Flexural Strength: 380MPa
Composition:SiC: ＞85% Density: ≥3.0g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Size: Customized Density: 2.5～2.6 G/cm3
Heat Conduction: 23.26 W/(m·℃) Resistivity: 1000～2000 Ω·mm2/m
Tensile Strength: 39.2～49 MPa Flexural Strength: 70～90 MPa
Density: 2.5~2.6g/cm³ Max. Service Temp.: 1500℃
Flexural Strength: 70-90 MPa Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

customized heating elements

,

customized sic heater elements

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Description
Highlight:

Straight Sic Silicone Carbide Heating Rods

,

Sic Silicone Carbide Heating Rods

,

Sic Heating Elements Industrial


Straight sic silicone carbide heating rods with cold zone and hotzone silicon carbide element

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 0


FEATURES

¯¯¯¯¯¯¯¯¯¯¯¯¯¯

  • 1. Withstands as high as 1500 (surface temperature).
  • 2. Generates high heat output per unit surface area, approximately 5-10 times the output of Nichrome wire.
  • 3. High strength and excellent shock resistance.
  • 4. Heat source is free of noise and air pollution.


Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 1

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 2Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 3Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 4Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 5


Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 6

Item RSiC NSiC SiSiC Si3N4-SiC
Bulk Density(g/cm3) 2.60-2.74 2.75-2.82 >3.02 2.68
Porosity (%) 15 10-12 <0.1 <16
Compression Strength(MPa) ≥600 600-700 -- 180
Bending Strength(MPa) 90-100(20℃) -- 250(20℃) ≥45(20℃)
100-120(1100℃) 160-180(1100℃) 280(1200℃) ≥50(1200℃)
Young’s Modulus(GPa) 280(20℃) 220-260 -- ≥16(1200℃)
Thermal Conductivity(W/MK) 26(1200℃) 15(1200℃) 45(1200℃) --
Thermal Expansion(20-1000 ℃) 4.8×10-6 5.099×10-6 4.5×10-6 ≤4.7×10-6
Max. Working Temperature(℃) 1650 1500 1380 1500
PH Resistance 1-14 -- Excellent --
Moh’s Scale of Thermal Expansion -- -- 13 --
Si3N4 (%) 0 20-40 -- ≥22
a-SiC(%) 98.5 60-80 -- ≥75


Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 7


Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 8


Quality control:

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element 9

Tag:

Silicon Carbide Heating Elements,

Sic Heating Elements,

Sic Heater Elements
