High Purity 1400°C Silicon Carbide Heating Elements Manufacturer

High Purity 1400°C Silicon Carbide Heating Elements Manufacturer
High Purity 1400°C Silicon Carbide Heating Elements Manufacturer High Purity 1400°C Silicon Carbide Heating Elements Manufacturer High Purity 1400°C Silicon Carbide Heating Elements Manufacturer High Purity 1400°C Silicon Carbide Heating Elements Manufacturer

Large Image :  High Purity 1400°C Silicon Carbide Heating Elements Manufacturer

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month

High Purity 1400°C Silicon Carbide Heating Elements Manufacturer

Description
Material: SiC Composition:SiC: >98%
Color: Black Density: ≥3.05g/cm3
Max. Service Temp: 1650℃ Flexural Strength: 380MPa
Composition:SiC: >85% Density: ≥3.0g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Size: Customized Density: 2.5~2.6 G/cm3
Heat Conduction: 23.26 W/(m·℃) Resistivity: 1000~2000 Ω·mm2/m
Tensile Strength: 39.2~49 MPa Flexural Strength: 70~90 MPa
Density: 2.5~2.6g/cm³ Max. Service Temp.: 1500℃
Flexural Strength: 70-90 MPa Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

customized silicon carbide elements

,

customized silicon carbide heating elements

High Purity 1400°C Silicon Carbide Heating Elements Manufacturer


Description

Highlight:

Silicon Carbide Heating Elements Manufacturer

High Purity Silicon Carbide Heating Elements

1400°C Silicon Carbide Heating Elements



Product Description:


1400°C SiC heating element/ SiC heater /Silicon Carbide Heating Rods is made of top quality green silicon carbide which is characterized by high-applied temperature, anti-oxidization, anti-corrosion , long service life, ltttle deformation and easy installation &maintence.

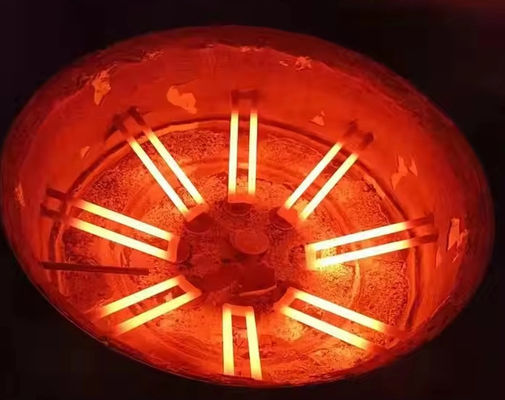

The SiC heater are usually used as furnace heaters, working temperature from 600-1400°C is available.It can be directly used in an air atmosphere without any protection atmosphere;

it is also widely used in various high temperature electric furnaces and other electric heating debices, such as in the industrial of magnet, ceramics, powder metallurgy, glass, metallurgy and michinery etc.


Product Display:

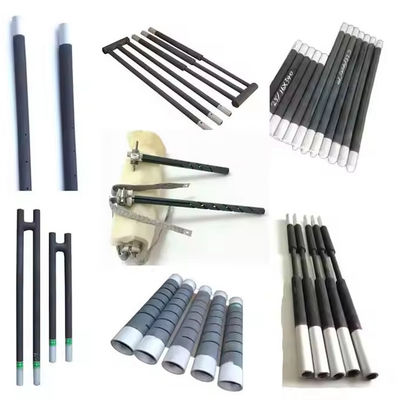

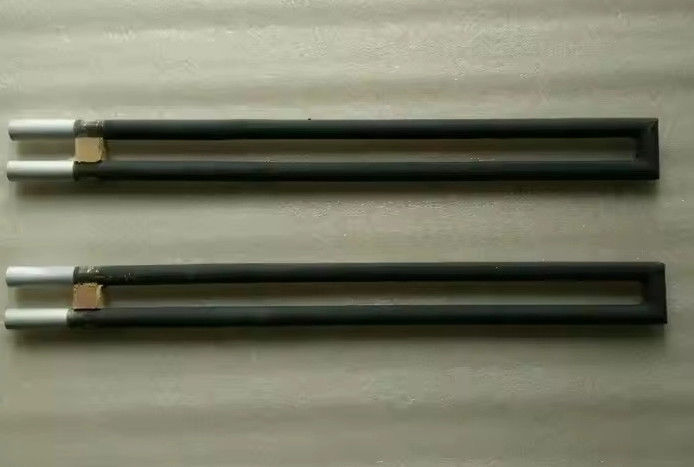

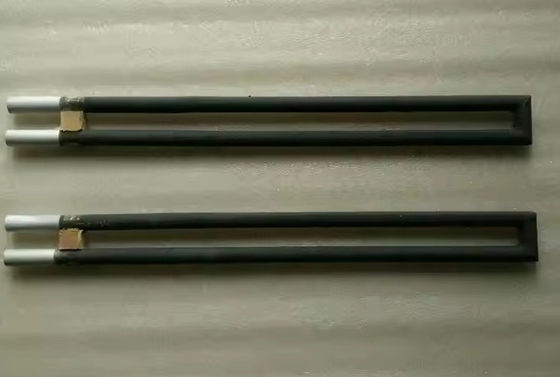

High Purity 1400°C Silicon Carbide Heating Elements Manufacturer 0High Purity 1400°C Silicon Carbide Heating Elements Manufacturer 1

Features of SiC heating elements:

1. Anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintenance.

2. High strength and excellent shock resistance.

3. Heat source is free of noise and air pollution.

4. Easy to installation and maintenance.

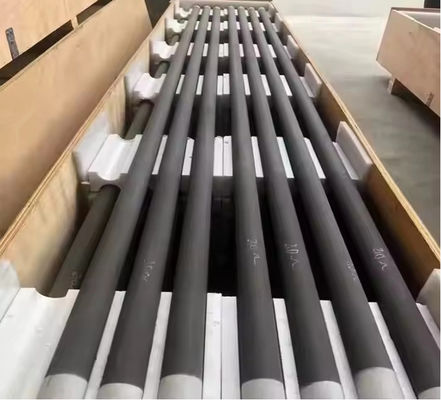

Packaging & Shipping:

We use foam plastic and plastic film for filling, and standard foreign trade wooden boxes/paper boxes for double-layer packaging to prevent the silicon carbon rods from being damaged during transportation.

We could send the cargo by express, by air, by sea, or by railway via reliable forwarder.

High Purity 1400°C Silicon Carbide Heating Elements Manufacturer 2High Purity 1400°C Silicon Carbide Heating Elements Manufacturer 3

1. How can we guarantee quality?

Final inspection by professional engineers before shipment.

2. How long is the warranty period?

One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user. Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.


3. How to order your product?

When you are ready to order, please contact us to confirm current pricing, payment arrangements, availability and delivery times for your equipment or accessories. to ensure that your order is properly processed.


4.Do you have customization or OEM service?

We can customize as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
