ic Resistor ED Type Sic Heating Elements 1450°C For Stove

Large Image : ic Resistor ED Type Sic Heating Elements 1450°C For Stove

Product Details:

Place of Origin:	China
Brand Name:	KEGU
Model Number:	Customizable

Payment & Shipping Terms:

Price:	200-500 yuan/kg
Packaging Details:	Strong wooden box for Global shipping
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2,000 pcs/month

Contact Now

ic Resistor ED Type Sic Heating Elements 1450°C For Stove

Description

Material:	SiC	Composition:SiC:	＞98%
Color:	Black	Density:	≥3.05g/cm3
Max. Service Temp:	1650℃	Flexural Strength:	380MPa
Composition:SiC:	＞85%	Density:	≥3.0g/cm3
Max. Service Temp:	1380℃	Flexural Strength:	250MPa
Size:	Customized	Density:	2.5～2.6 G/cm3
Heat Conduction:	23.26 W/(m·℃)	Resistivity:	1000～2000 Ω·mm2/m
Tensile Strength:	39.2～49 MPa	Flexural Strength:	70～90 MPa
Density:	2.5~2.6g/cm³	Max. Service Temp.:	1500℃
Flexural Strength:	70-90 MPa	Linear Thermal Expansion Coefficient (20-1500℃):	5×10⁻⁶/℃
Electrical Resistivity:	1000~2000Ω·mm²/m
Highlight:	ed type sic heating elements , ed type sic heater elements , customized sic heater elements

Sic Resistor ED Type Sic Heating Elements 1450°C For Stove

Description

Highlight:

1450°C Sic Heating Elements

ED Type Sic Heating Elements

Stove Sic Heating Elements

Product Description:

1500C ED Type SIC Heating Elements SIC Heater Silicon Carbide Heating Element is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It can usually make use for furnance which temperature from 600ºC.-1600ºC. It is widely used in various electric heating element of glass,chemical, electronic material and so on.
According to the market demand,we produce different types of silicon carbide rod
(diameter: 8mm to 60mm,length:300mm to 450mm), while direct at the glass heating with electricity,we have such products as equal diameter ones,groove-shaped,u-shaped,gun-shaped and so on.

Characteristics:

1)Low expansion coefficient ,
2)little deformation,
3)stable chemical property,
4)long service life ,
5)easy installation and maintenance.

Specification:

Examples include:nominal loading(at 1050℃)

diamete(mm)	hot zone length (mm)	cold end length (mm)	overall length (mm)	hot zone Suface Area (c㎡)	Voltage(v)	Power(w)	resistance(Ω)
12	150	200	450	56	41	896	1.85
14	200	200	600	88	41	1408	1.22
16	300	250	800	150	62	2400	1.75
20	300	400	1100	188	59	3008	1.45

NOTE:
Specification above are parts of our products for your reference, and we can manufacture according to your special specification.

Recommend surface load of silicon carbide heating elements:

Furnace Temp (°c )	1100	1200	1300	1350	1400	1500
Surface load of hot zone (W/cm²)	<17	<13	<9	<7	<5	<4

Details Images:

ic Resistor ED Type Sic Heating Elements 1450°C For Stove 0

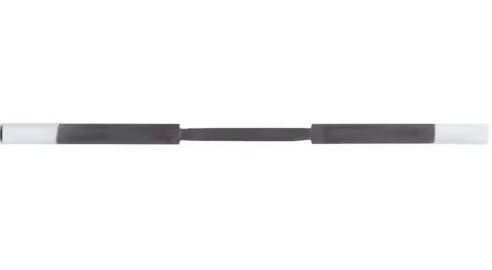

Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)

Usage:

It is widely used in various high temperature laboratory furnace and other electric heating devices, such as in the industries of magnet, ceramics, ceramics, power metallurgy.

Packing & Delivery:

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.

ic Resistor ED Type Sic Heating Elements 1450°C For Stove 2

FAQ:

1. Are you trading company or manufacturer ?
--We are factory and manufacturer.

2. Can you accept OEM?
--Yes! We can manufacture as per your specification.

3. Can you deliver the goods via our shipping agent?
--Yes, we could help you make the delivery using your shipping agent.

4. How long is your delivery time?
--Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock. And order quantity also plays a part in delivery time.

5.When we can contact you?
--You can contact us 24 hours every day. It is our pleasure to service you at any time.

6. What about your After-sales service?
--Yes. We have a professional after-sales team to help you solve problems.

Quality control:
