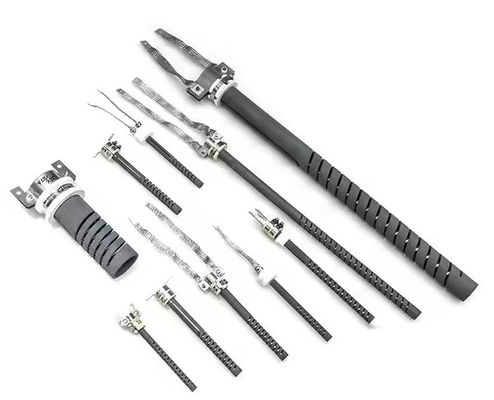

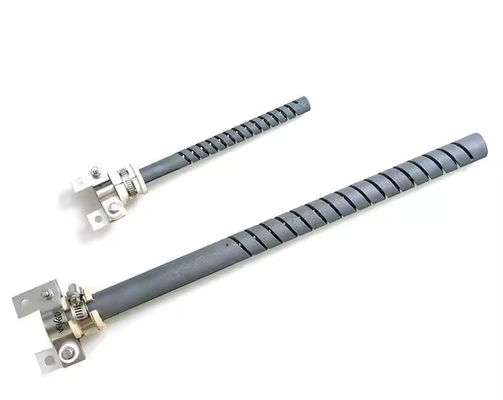

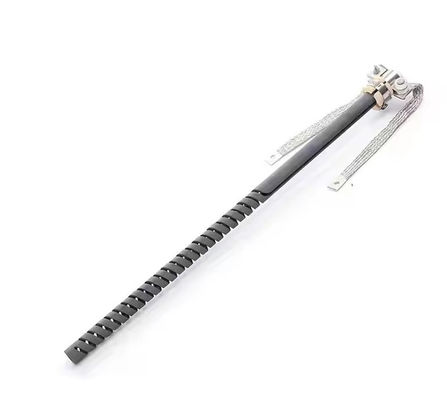

Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces

Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces
Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces

Large Image :  Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: 2.5~2.6g/cm³
Max. Service Temp: 1380℃ Flexural Strength: 70-90 MPa
Size: Customized Heat Conduction: 23.26 W/(m·℃)
Resistivity: 1000～2000 Ω·mm2/m Tensile Strength: 39.2～49 MPa
Max. Service Temp.: 1500℃ Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

Double Spiral Silicon Carbide Elements

,

SGR Type Silicon Carbide Elements

,

99% SIC Elements

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces

Description
Highlight:

1625°C Sic Heating Element

,

Various Furnaces Sic Heating Element

,

Double Spiral Sic Heating Element




Product Description
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 0
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 1
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 2
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 3
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 4
Specification

Material

Silicon Carbide Powder

Voltage

220 volts, 380 volts, 110 volts

Shapes

U Shape', W Shape, Spiral Shape, Straight Type, L Type, etc

SiC Content

＞99%

Color

Black

Resistence

Uniform resistance

Power

Adjustable

Working temperature

up to 1625°C





Recommend Products

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 5

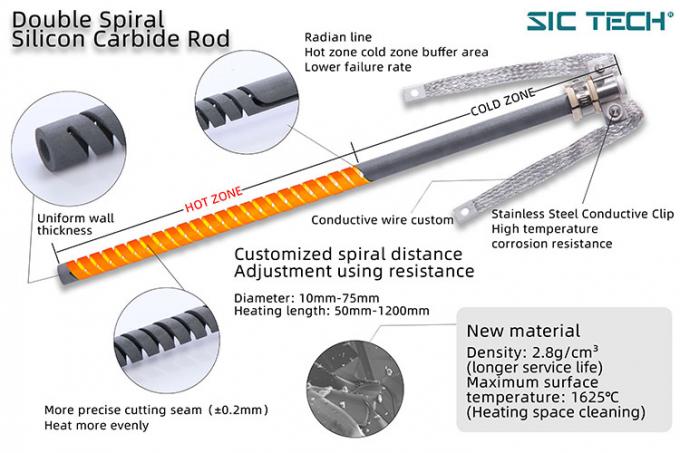

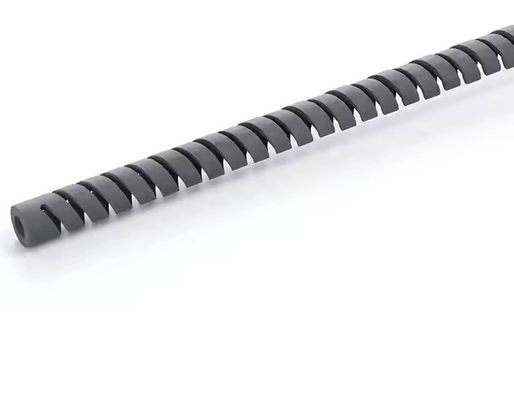

SGR Type

Double spiral type sic heater could max reach 1625 ℃



1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 6



SG Type

Single spiral type sic heater could max reach 1625 ℃



1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 7



U Type

Ideal for drop through design, radiant tube systems or where one element will not span the heating chamber

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 8



W Type

W shape sic heater is widely used in glass industry, particularly for float glass tin bath



1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 9



Straight Shape

These are the mostly used sic heater, widely used for various electric furnaces



1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 10



Accessories

Except heating element, we also provide many related accessories



Packing & Delivery

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 11

FAQ

Q1: Are you trading company or manufacturer ?

A1: We focus on manufacturing silicon carbide heater over 20 years.

Q2: What's your MOQ?

A2: We could provide only 1 pcs sample order for checking our quality

Q3: Does your heater has any warranty?

A3: Usually our sic heater provide 6 months warranty. For some more high quality elements, our heating element could reach one to several years span life.

Q4: How to get exact quotation on your sic heater?

A4: We need information of overall length, heating zone length, diameter, resistance and quantity

Q5: As the sic heater is very fragile, do you have any safety package and warranty?

A5: First, we will pack each element safely. Second, we promise return back money of the broken elements.

Q6: How long is your delivery time?

A6: For regular sizes, our lead time is 1-15 days; For special sizes, our delivery time is within 30 days.



Quality control:Double Spiral 99% SIC Silicon Carbide Elements SGR Type 1625°C For Furnaces 12
