Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant

Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant
Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant

Large Image :  Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month

Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant

Description
Material: SiC Composition:SiC: >85%
Color: Black Density: 2.5~2.6g/cm³
Max. Service Temp: 1380℃ Flexural Strength: 70-90 MPa
Size: Customized Heat Conduction: 23.26 W/(m·℃)
Resistivity: 1000~2000 Ω·mm2/m Tensile Strength: 39.2~49 MPa
Max. Service Temp.: 1500℃ Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

1625C Silicon Carbide Heater Elements

,

Muffle Plant Sic Heater Elements

,

Scr Type Sic Heater Elements

1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant

Description
Highlight:

Sic Silicon Carbide Heating Elements

Scr Silicon Carbide Heating Elements





Specification
Condition
New
Material
Silicone
Type
Air Heater
Key Selling Points
Long Service Life
Power Source
Electric
Material
SIC/silicon
Place of Origin
China
Shape
Straight type, U type, W type and etc.
SiC Content
above 99%
Tube Diameter
8mm to 65mm
Weight
1KG
Product name
Silicon Carbide Rod Heating Element
Voltage
110V-480V
Bulk Density
2.8g/cm³
Warranty
1 Year
After-sales Service Provided
Video technical support, Online support, Spare parts
Working Temperature Range
600℃-1625℃
Application
Furnace heating
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 0
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 1
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 2
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 3
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 4

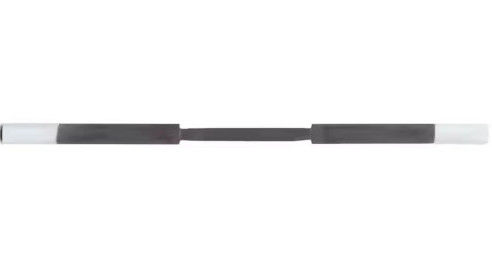

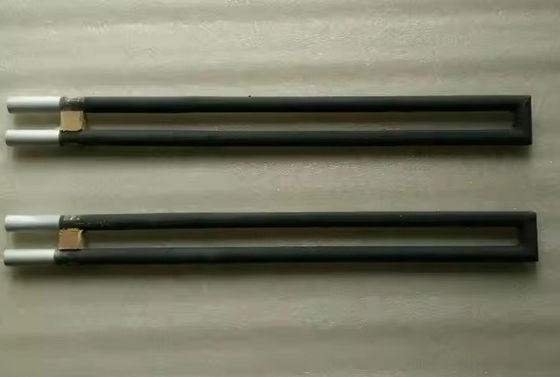

Type: HD type/U type/W type/SG type/SGR type
Outer diameter:OD
Hot zone length:HZ
Cold zone length:CZ
Overall Length:OL
Shank Spacing:A
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 5
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 6
Packing & Delivery
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 7
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 8
Packaging Details 1. Single package: pearl cotton package 2. Outer box packing: wooden box
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 9
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 10
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 11
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 12
1625°C Scr Type Sic Silicon Carbide Heating Elements For Sic Muffle Plant 13
FAQ

1.Who are we?
We are based in Jiangsu, China, start from 2010,sell to Domestic Market(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?

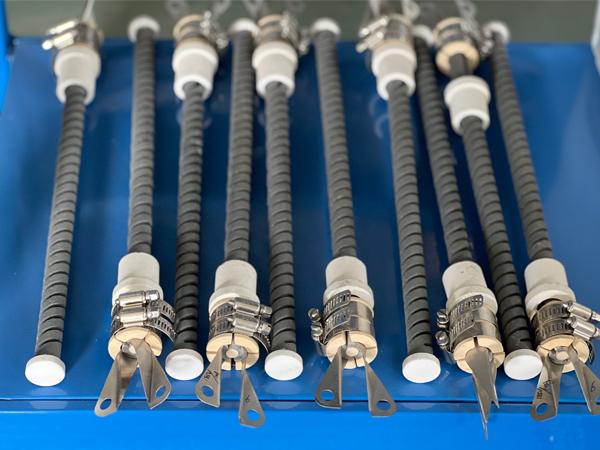

HD series( Straight shape)U series(U shape)W series(three phase type)SG series(single spiral type),SGR series(double spiral type)Can be customized according to customer design requirements of special gauge silicon carbon rod

4. why should you buy from us not from other suppliers?
(1)More than 40 years experence
(2)The operating temperature is 1625℃, and the density of the heating element is 2.8g/cm³
(3)The R&D team
(4)Laboratory

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,French



Quality control:

Scr Type Sic Silicon Carbide Heater Elements 1625°C For Sic Muffle Plant 14
