High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications

High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications
High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications

Large Image :  High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications

Description
Material: SiC Composition:SiC: ＞85%
Color: White Density: ≥3.65g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Hardness: ≥84HRA Water Absorption: ≤0.2%
Abrasion: < 0.02% Bending Strength: ≥290MPa
Highlight:

Grinding Alumina Ceramic Liner

,

Impact Resistant Alumina Ceramic Liner

,

Agitators Alumina Ceramic Liner

High-Performance Alumina Ceramic Tubes for Demanding Industrial Applications

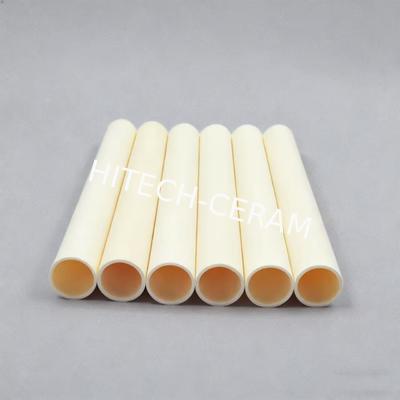

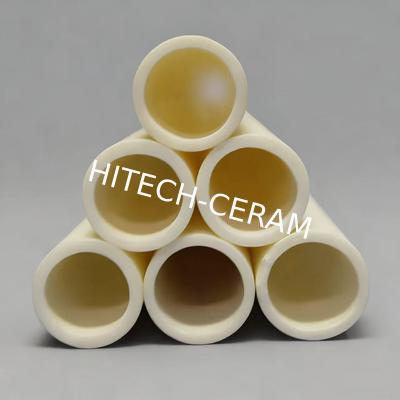

Alumina ceramic tubes are engineered from high-purity aluminum oxide (Al₂O₃) using advanced isostatic pressing and high-temperature sintering technology (1700°C). These technical ceramic components deliver exceptional mechanical, thermal, and electrical performance in the most challenging operating environments.
High-Performance Alumina Ceramic Tubes with 1700°C Sintering for Demanding Industrial Applications 0
Key Material Properties & Performance Advantages
  • Exceptional Hardness & Wear Resistance
    • Mohs hardness ≥ 80
    • Outstanding abrasion resistance for extended service life
  • Superior Mechanical Strength
    • Compressive strength ≥ 150 MPa
    • Maintains structural integrity under heavy loads
  • Excellent Thermal & Chemical Stability
    • Withstands extreme temperatures and thermal shock
    • Resists corrosion from acids, alkalis, and molten metals
  • High Electrical Insulation
    • Excellent dielectric properties for electrical applications
Technical Specifications & Manufacturing
Material Composition: High-purity Al₂O₃ (96%-99.8%)
Manufacturing Process: Isostatic pressing + 1700°C sintering

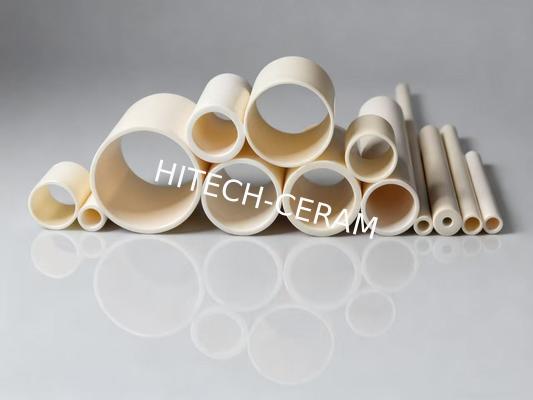

Available Sizes: Outer diameter 25mm to 500mm
Surface Finish: Precision grinding and polishing
Custom Options: Specialized coatings and custom geometries
Industrial Applications
Electronics & Semiconductor

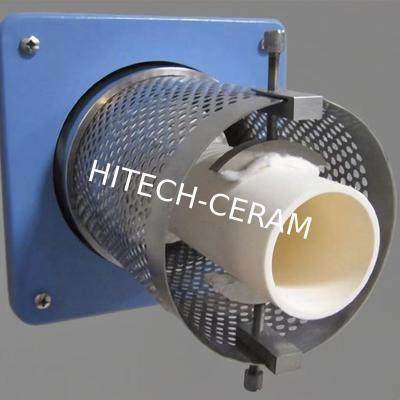

  • Insulating sleeves and thermocouple protection
  • Semiconductor processing components
  • Vacuum furnace fixtures
Chemical & Energy Processing
  • Chemical reaction chambers
  • Pipeline liners for abrasive slurries
  • Heat exchanger tubes
Aerospace & Defense
  • Sensor protection housings
  • Thermal barrier components
  • Radar and communication systems
Industrial Equipment
  • Wear-resistant guides and liners
  • High-temperature measurement systems
  • Material handling components
Customization & Service Support
We provide comprehensive technical solutions including:
  • Custom dimensions and tolerances
  • Special surface finishes and coatings
  • Engineering design consultation
  • Installation and application support
Need reliable ceramic solutions for challenging environments?
Contact our engineering team to discuss how our alumina ceramic tubes can solve your specific application challenges. We provide technical consultation and custom manufacturing to meet your exact requirements.
