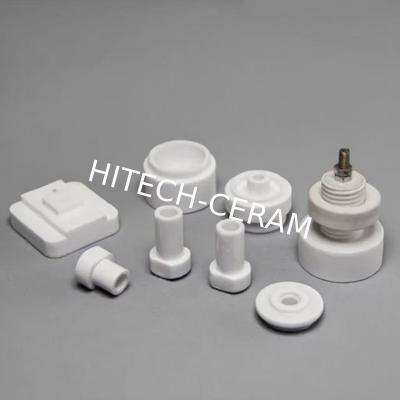

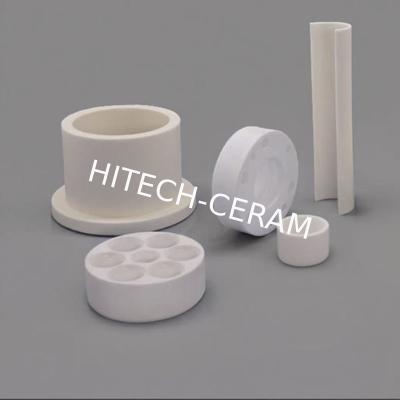

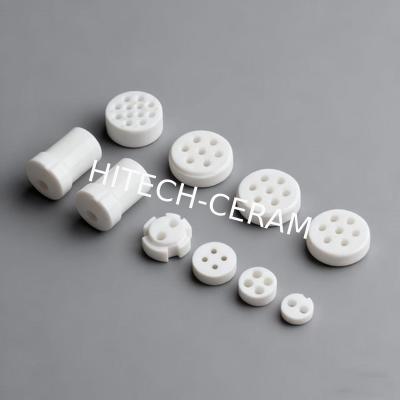

99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems

99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems
99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems 99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems 99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems 99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems 99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems

Large Image :  99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

99.8% High Purity Alumina Ceramic for Electrical Insulation in 126kV-1000kV Systems

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: ≥3.65g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Hardness: ≥84HRA Water Absorption: ≤0.2%
Abrasion: < 0.02% Bending Strength: ≥290MPa
Highlight:

99.8% Al2O3 High Alumina Ceramic

,

Metallized High Alumina Ceramic

,

High Whiteness Metallized Ceramics

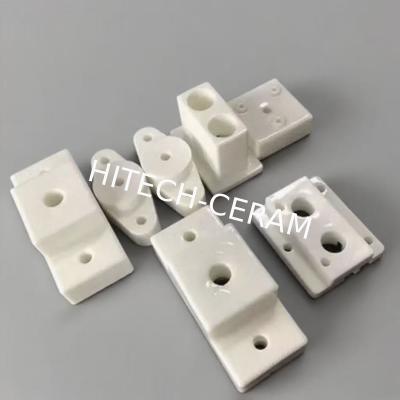

99.8% High Alumina Ceramic for Electrical Insulation | High-Voltage Switchgear & GIS Components
Product Description
99.8% Al2O3 metallized ceramics for high-voltage insulation (126kV-1000kV). Ultra-white, low sodium content, optimized for SF6 circuit breakers & GIS. Custom formulations available.
Engineered for critical high-voltage applications, our 99.8% Al2O3 alumina ceramics provide superior electrical insulation and mechanical stability in demanding environments from 126kV to 1000kV systems. These ultra-white, low-sodium ceramics are specifically formulated for SF6 circuit breakers, GIS insulation, and epoxy resin casting systems.
Key Electrical Insulation Properties
  • Ultra-High Purity: 99.8% Al2O3 content with controlled impurity levels (Na₂O ≤ 0.20%)
  • Superior Dielectric Performance: Low conductivity (40-100 μS/cm) ensures reliable insulation
  • Optimized Processing: Controlled viscosity (3000 cp) and pot life for seamless epoxy resin integration
  • Precision Engineering: Tight particle size distribution (D50: 3-22μm) for consistent performance
Technical Specifications - Electrical Grade Alumina
Parameter ALF-02 Series ALF-03 Series ALF-09/10 Series Unit
Al₂O₃ Content ≥ 99.8 ≥ 99.8 ≥ 99.8 %
Na₂O Content ≤ 0.10 ≤ 0.15-0.20 ≤ 0.04-0.05 %
Particle Size (D50) 12-21 10-18 3-15 μm
Conductivity ≤ 40 ≤ 80 ≤ 80-100 μS/cm
Pot Life 50-65 60-95 100-200 min
Critical High-Voltage Applications
  • SF6 Circuit Breakers: 126kV-550kV insulation components
  • Gas Insulated Switchgear (GIS): Primary insulation for 126kV-1000kV systems
  • High-Voltage Cable Accessories: Insulation and filling for cable joints
  • Transformer Components: Mutual inductor GIS insulation

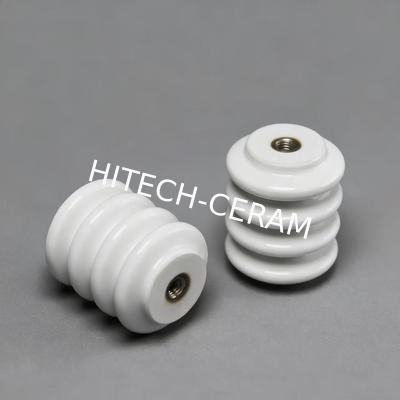

  • Electrical Bushings & Insulators
Material Advantages for Electrical Systems
Enhanced Reliability
  • Consistent dielectric properties across temperature variations
  • Excellent compatibility with epoxy resin casting systems
  • Minimal ionic contamination for long-term stability
Manufacturing Efficiency
  • Predictable rheology for automated production processes
  • Multiple grades tailored to specific potting system requirements
  • Custom formulations available for specialized applications
Custom Electrical Solutions
We provide tailored alumina formulations to match your specific:
  • Epoxy resin system compatibility requirements
  • Voltage class specifications (126kV to 1000kV)
  • Processing parameters and production workflows
Request Electrical-Grade Alumina Samples
Our technical team can help select the optimal ALF series grade for your high-voltage insulation application. Contact us for technical datasheets and sample evaluation to verify performance in your specific electrical system.
