Reaction Sintered Silicon Carbide Air Cooling Tubes for High-Temp Industrial Cooling with 1380℃ Max Service Temp and 250MPa Flexural Strength

Reaction Sintered Silicon Carbide Air Cooling Tubes for High-Temp Industrial Cooling with 1380℃ Max Service Temp and 250MPa Flexural Strength
Reaction Sintered Silicon Carbide Air Cooling Tubes for High-Temp Industrial Cooling with 1380℃ Max Service Temp and 250MPa Flexural Strength Reaction Sintered Silicon Carbide Air Cooling Tubes for High-Temp Industrial Cooling with 1380℃ Max Service Temp and 250MPa Flexural Strength

Large Image :  Reaction Sintered Silicon Carbide Air Cooling Tubes for High-Temp Industrial Cooling with 1380℃ Max Service Temp and 250MPa Flexural Strength

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Reaction Sintered Silicon Carbide Air Cooling Tubes for High-Temp Industrial Cooling with 1380℃ Max Service Temp and 250MPa Flexural Strength

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: ≥3.0g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Highlight:

Sintered Silicon Carbide Air Cooling Tube

,

Industrial SIC Air Cooling Tube

,

Reaction Sintered Silicon Carbide Tube

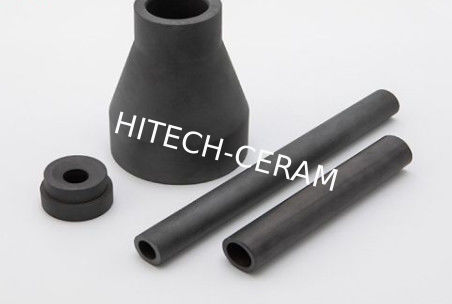

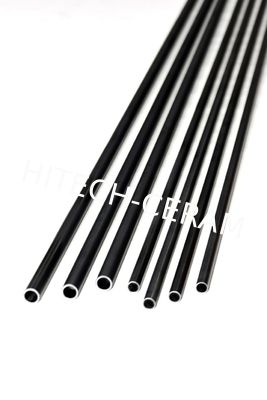

Reaction Sintered Silicon Carbide (SiSiC) Air Cooling Tubes
High-performance industrial cooling solutions engineered for extreme temperature conditions with exceptional thermal conductivity and corrosion resistance.
Product Overview
Discover Shaanxi Kegu's high-performance Reaction Sintered Silicon Carbide (SiSiC) air cooling tubes, engineered for extreme industrial conditions. These tubes offer excellent thermal shock resistance, high thermal conductivity, and superior corrosion resistance, making them ideal for kiln cooling zones with long-lasting efficiency.
Key Properties and Advantages
  • Exceptional Durability: Extreme hardness and high wear resistance for extended service life
  • Superior Thermal Performance: Excellent thermal shock resistance, high thermal conductivity, and maximum application temperature of 1380°C
  • Outstanding Chemical Stability: Resists acid, alkali, and oxidation corrosion
  • High Mechanical Strength: Maintains structural integrity and resists creep under heavy loads at high temperatures
Technical Specifications
Property Unit Value
Density g/cm³ ≥ 3.0
Open Porosity % 0.2
Vickers Hardness (HV1) kg/mm² ≥ 2100
Flexural Strength (20°C) MPa 250
Flexural Strength (1200°C) MPa 280
Coefficient of Thermal Expansion 10⁻⁶/K 4.5
Thermal Conductivity (1200°C) W/(m*K) 45
Modulus of Elasticity GPa 330
Max. Application Temperature °C 1380
Performance Features
10x Longer Lifespan: Significantly outlasts traditional alumina ceramic rods and stainless-steel pipes
Zero Deformation: Does not bend or warp, even after prolonged use at high temperatures
Energy Efficient: High thermal conductivity promotes effective and rapid cooling
Ideal Applications
  • Sanitary Porcelain and Ceramics
  • Daily-Use Porcelain
  • Architectural Ceramics and Tiles
  • Magnetic Materials Production
Manufacturing Excellence
Our advanced manufacturing processes include CNC Machining and Laser Cutting technologies to ensure precision and quality in every component.
Related Products
Wear-Resistant Components, Ceramic Bearings and Seals, Refractory Materials, Cutting Tools, Ceramic Filters, Electronics Components
