Black High Thermal Shock Resistance Customizable Silicon Nitride Ceramic for Non-Standard Structural Parts

Large Image : Black High Thermal Shock Resistance Customizable Silicon Nitride Ceramic for Non-Standard Structural Parts

Product Details:

Place of Origin:	China
Brand Name:	KEGU
Model Number:	Customizable

Payment & Shipping Terms:

Price:	200-500 yuan/kg
Packaging Details:	Strong wooden box for Global shipping
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2,000 pcs/month

Contact Now

Black High Thermal Shock Resistance Customizable Silicon Nitride Ceramic for Non-Standard Structural Parts

Description

Material:	Silicon Nitride	Composition:SiC:	＞85%
Color:	Black	Density:	3.20-3.26g/cm3
Max. Service Temp:	1450℃	Flexural Strength:	250MPa
Sample:	Customizable	Chemical Stability:	High
Apparent Porosity:	0-0.1%	Elastic Modulus:	300-320GPa
Compression Strength:	>1500MPa	Vickers Hardness(HV0.5):	15-16GPa
Thermal Conductivity:	20-25W/(m.k)	Specific Resistivity:	10^14Ω·cm
Highlight:	Si3N4 Silicon Nitride Ceramics , OEM Silicon Nitride Ceramics , Black Si3N4 Ceramics

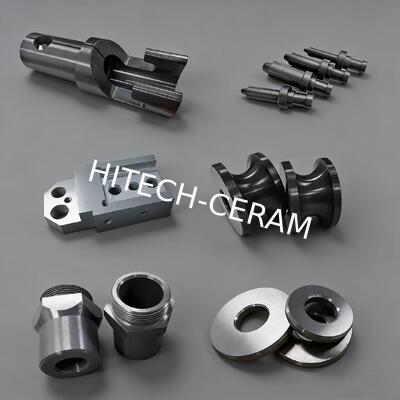

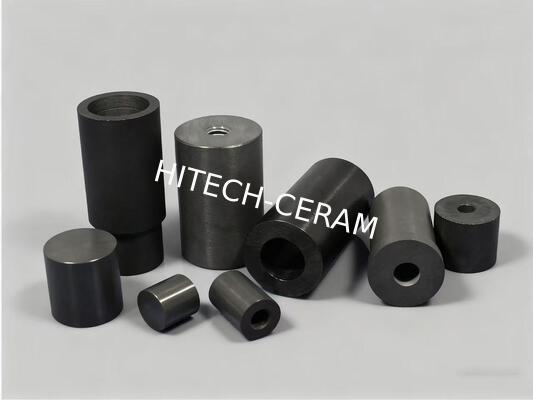

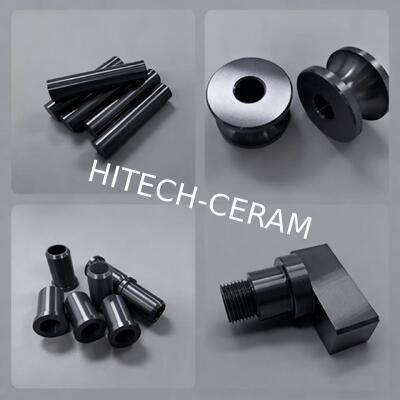

Black OEM Si3N4 Silicon Nitride Ceramics for Custom Non-Standard Structural Parts

Advanced silicon nitride ceramic materials, specifically engineered for the aluminum industry, offer superior thermal and mechanical properties compared to conventional alternatives. Building on this innovation, products like the L-shaped high thermal conductivity submerged heating appliance are set to deliver revolutionary improvements in aluminum industrial equipment performance.

Custom structural components demanding exceptional thermal shock resistance represent a key growth area for silicon nitride ceramics. In high-temperature, highly corrosive, and high-wear applications, silicon nitride is increasingly replacing traditional materials such as cemented carbide, alumina, zirconia, and silicon carbide.

Silicon Nitride Ceramics: Property Comparison Data

Category	Property	Unit	99% Al₂O₃	S-SiC	ZrO₂	Si₃N₄
Physical	Density	g/cm³	3.9	3.1	6.0	3.2
Physical	Water Absorption	%	0	0.1	0	0.1
Physical	Sintering Temperature	°C	1700	2200	1500	1800
Mechanical	Hardness (HV)	HV	1700	2200	1300	1400
Mechanical	Flexural Strength	kgf/mm²	3500	4000	9000	7000
Mechanical	Compressive Strength	kgf/mm²	30000	20000	20000	23000
Thermal	Max Working Temperature	°C	1500	1600	1300	1400
	Thermal Expansion Coefficient (0-1000°C)	/°C	8.0 * 10⁻⁶	4.1 * 10⁻⁶ (0-500°C)	9.5 * 10⁻⁶	2.0 * 10⁻⁶ (0-500°C)
			5.2 * 10⁻⁶ (500-1000°C)			4.0 * 10⁻⁶ (500-1000°C)
	Thermal Shock Resistance	ΔT (°C)	200	250	300	400-500
	Thermal Conductivity (25°C)	W/m*K	31	100	3	25
Thermal	Thermal Conductivity (300°C)	W/m*K	16	100	3	25
Electrical	Volume Resistivity (20°C)	Ω*cm	>10¹²	10⁶-10⁸	>10¹⁰	>10¹¹
	Volume Resistivity (100°C)	Ω*cm	10¹²-10¹³	-	-	>10¹¹
	Volume Resistivity (300°C)	Ω*cm	>10¹²	-	-	>10¹¹
	Dielectric Breakdown Strength	kV/mm	18	Semiconductor	9	17.7
	Dielectric Constant (1 MHz)	ε	10	-	29	7
	Dielectric Loss Tangent	tan δ	0.4 * 10⁻³	-	-	-

Key Advantages of Silicon Nitride (Si₃N₄)

Excellent Thermal Shock Resistance (ΔT 400-500°C)
High Mechanical Strength & Toughness
Good Thermal Conductivity with low thermal expansion
Superior Wear & Corrosion Resistance
High-Temperature Stability up to 1400°C
Electrical Insulation Properties

Applications: Ideal for custom structural components in metallurgy, automotive, aerospace, energy, and industrial wear parts requiring reliability under extreme conditions.
