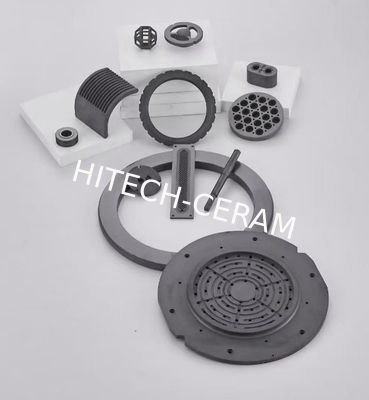

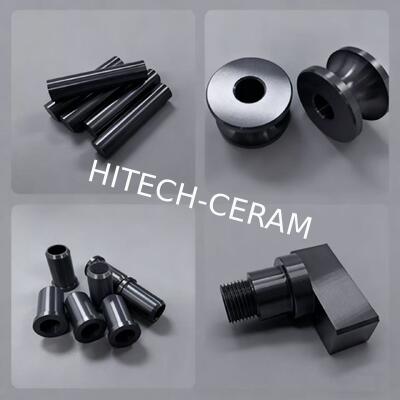

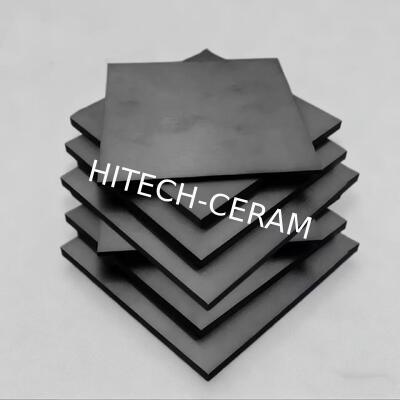

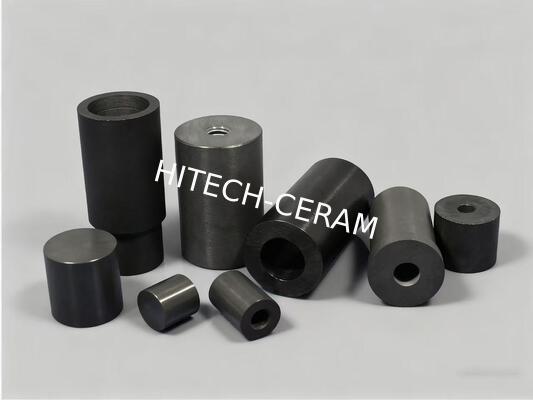

High Temperature Resistant Silicon Nitride Ceramic with Exceptional Mechanical Strength and Excellent Fracture Toughness
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Silicon Nitride (Si3N4) Ceramics: The Ultimate Guide to Properties, Types & Applications Unlock Peak Performance with Advanced Silicon Nitride Ceramics Silicon Nitride (Si3N4) stands as the premier technical ceramic material, offering the most versatile combination of mechanical, thermal, and ...
Product Details
Highlight:
Si3n4 Ceramics Rotating Ball
,Si3n4 Ceramics Rollers Bearings
,Silicon Nitride Ceramics Rotating Ball
Material:
Silicon Nitride
Composition:SiC:
＞85%
Color:
Black
Density:
3.20-3.26g/cm3
Max. Service Temp:
1450℃
Flexural Strength:
250MPa
Sample:
Customizable
Chemical Stability:
High
Apparent Porosity:
0-0.1%
Elastic Modulus:
300-320GPa
Compression Strength:
>1500MPa
Vickers Hardness(hv0.5):
15-16GPa
Thermal Conductivity:
20-25W/(m.k)
Specific Resistivity:
10^14Ω·cm
Product Description
Silicon Nitride (Si3N4) Ceramics: The Ultimate Guide to Properties, Types & Applications
Unlock Peak Performance with Advanced Silicon Nitride Ceramics
Silicon Nitride (Si3N4) stands as the premier technical ceramic material, offering the most versatile combination of mechanical, thermal, and electrical properties available. This high-performance material delivers exceptional hardness, outstanding thermal shock resistance, and superior impact resistance—making it ideal for the most demanding industrial applications.
Why Choose Silicon Nitride Ceramics?
Superior Material Properties:
- Exceptional Mechanical Strength: Maintains high strength across extreme temperature ranges
- Excellent Fracture Toughness: Withstands intense mechanical stress and impact
- Outstanding Thermal Shock Resistance: Performs reliably through rapid temperature changes
- High Wear & Corrosion Resistance: Ideal for harsh environments and abrasive conditions
- Excellent Electrical Insulation: Functions as reliable insulator across temperature spectrum
- Low Thermal Expansion: Maintains dimensional stability under thermal cycling
Comprehensive Property Data
Mechanical Properties
| Unit | Value |
|---|---|
| Density (g/cm3) | 3.21 |
| Compressive Strength (MPa) | 3000 |
| Flexural Strength (MPa) | 800 |
| Weibull-Modulus m (-) | 15 |
| Fracture Toughness KIc (MPa m^1/2) | 6.5 |
| Young's Modulus E (GPa) | 320 |
| Poisson Ratio (-) | 0.28 |
| Hardness Vickers (HV 1) (GPa) | 16 |
Thermal Properties
| Unit | Value |
|---|---|
| Max Temp (Inert Gas) (°C) | 1200 |
| Max Temp (Air) (°C) | 1100 |
| Thermal Conductivity @ 20°C (W/mK) | 28 |
| Thermal Conductivity @ 1000°C (W/mK) | 16 |
| Thermal Expansion @ 20-100°C (10-6/K) | 2 |
| Thermal Expansion @ 20-1000°C (10-6/K) | 3.5 |
| Thermal Shock Parameter R1 (K) | 600 |
| Thermal Shock Parameter R2 (W/mm) | 15 |
Electrical Properties
| Unit | Value |
|---|---|
| Resistivity at 20°C (Ωcm) | 10^12 |
| Resistivity at 800°C (Ωcm) | 10^7 |
| Dielectric Constant (1 MHz) | 6 |
Silicon Nitride Manufacturing Processes
Gas Pressure Sintered Silicon Nitride (GPSN)
- Most popular method for high-strength components
- Produces complex geometries with excellent mechanical properties
- Ideal for custom components and precision applications
- Suitable for rods, bearings, and engineered ceramic parts
Reaction-Bonded Silicon Nitride (RBSN)
- Porous structure (70-85% density)
- Excellent for high-temperature thermal shock applications
- Cost-effective for specific use cases
Hot Pressed Silicon Nitride (HPSN)
- Superior mechanical properties
- Limited to simple shapes due to manufacturing constraints
- Requires diamond grinding for complex geometries
Hot Isostatically Pressed Silicon Nitride (HIP-SN)
- Highest density and mechanical performance
- Premium process for critical applications
- Enhanced reliability and defect reduction
Key Applications & Industries
Industrial Components:
- Rotating Ball & Roller Bearings
- Cutting Tools & Inserts
- Engine Components (valves, rocker arm pads, seal faces)
- Turbine Blades & Vanes
- Welding & Brazing Jigs
- Heating Element Components & Protection Tubes
Specialized Applications:
- Induction Heating Coil Supports
- Crucibles & Metallurgical Containers
- Metal Tube Forming Rolls and Dies
- TIG / Plasma Welding Nozzles
- Thermocouple Sheaths & Tubes
- Semiconductor Process Equipment
Custom Manufacturing & Machining Capabilities
Precision Manufacturing:
- Maximum diameter: 430mm
- Maximum length: 1350mm
- Full customization available
- Green-state and dense machining
- Diamond grinding for tight tolerances
Machining Services:
- Green-state machining for complex geometries
- Diamond tool machining for sintered components
- Precision grinding for tight tolerance requirements
- Custom component design and fabrication
Technical Advantages Summary
Performance Benefits:
- Superior to metals in high-temperature capabilities
- Excellent creep and oxidation resistance
- Low thermal conductivity with high wear resistance
- Mechanical fatigue resistant
- Lightweight with high stiffness
- Good chemical corrosion resistance
Industry Solutions:
- Perfect for applications requiring high-temperature and high-load capabilities
- Ideal for thermal shock prone environments
- Excellent for wear-resistant components
- Superior electrical insulation in demanding conditions
