1650°C Max Service Temp Pressureless Sintered SSiC Saggers: Custom High-Temperature Solutions for Demanding Applications
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Summary
1650°C Pressureless Sintered Silicon Carbide (SSiC) Saggers Custom high-temperature solutions engineered for peak performance in demanding thermal processing applications. Our pressureless sintered silicon carbide (SSiC) saggers are engineered for peak performance in the most demanding high...
Product Details
Highlight:
Pressureless Sintered SiC Saggar
,Metallurgy Industries Pressureless Sintered SiC
,Lithium Battery Pressureless Sintered SiC
Material:
SiC
Composition:SiC:
>98%
Color:
Black
Density:
>3.05g/cm3
Max. Service Temp:
1650°C
Flexural Strength:
380MPa
Usage:
Industry Usage
Chemical Composition:
Al2O3, SiO2
Sic Content:
85%
Maximum Temperature:
1600℃
Characteristics:
High Wear Resistance
Thermal Expansion Coefficient:
4.0-4.5 × 10^-6 /K
Material Composition:
4%Si >96%Sic
Working Temperature:
1650
Advantage:
Wear And Abrasion Resistance
Purity:
98%
Material:
Silicon Carbide Ceramic
Acid Alkaline Proof:
Excellent
Solubility:
Insoluble
Open Porosity:
<0.1%
Flexural Strength:
350-550 MPa
Product Description

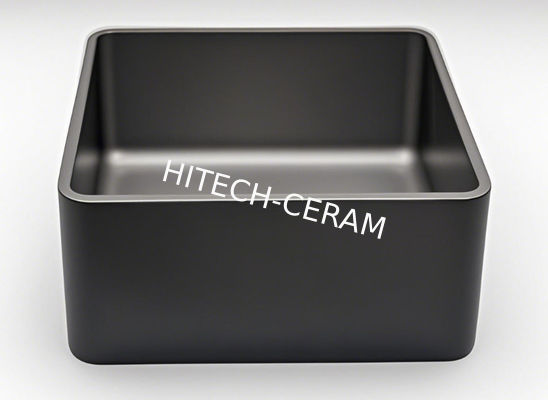

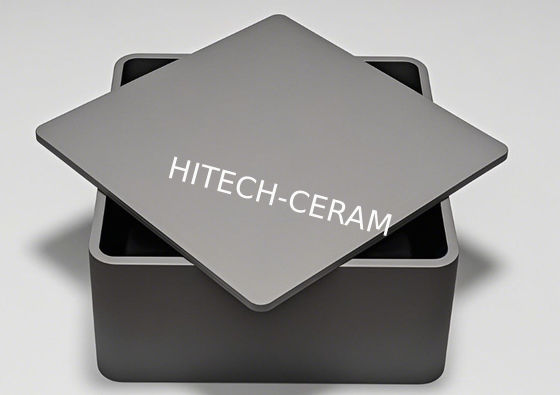

1650°C Pressureless Sintered Silicon Carbide (SSiC) Saggers
Custom high-temperature solutions engineered for peak performance in demanding thermal processing applications.
Our pressureless sintered silicon carbide (SSiC) saggers are engineered for peak performance in the most demanding high-temperature environments. Utilizing advanced forming processes—including isostatic pressing, slip casting, and dry pressing—we deliver custom-shaped components that ensure exceptional durability and thermal stability for your critical thermal processing applications.
Key Industries Served
Saggers play a critical role in kiln operations, serving as high-temperature vessels that ensure the safe transit and structural integrity of valuable products during firing processes.
- Lithium-Ion Battery Production: Ideal for cathode powder calcination
- Advanced Ceramics: Reliable performance for sintering technical ceramics
- Metallurgy & Heat Treatment: Robust solutions for metal purification and processing
- Electronics & Semiconductor: Precision saggers for wafer handling
- Glass & Photovoltaics: Consistent performance in glass manufacturing
Why Choose Our SSiC Saggers?
| Feature | Benefit |
|---|---|
| High Mechanical Strength | Withstands heavy loading and mechanical stress at high temperatures |
| Exceptional Thermal Shock Resistance | Maintains integrity through rapid temperature changes (>350°C) |
| Superior Corrosion Resistance | Excellent resistance to acids, alkalis, and harsh atmospheres |
| Extended Service Life | Reduces downtime and replacement frequency, lowering long-term costs |
| Customizable Designs | Tailored dimensions, shapes (round/square), and structures to fit your kiln |
Technical Specifications: Pressureless Sintered SiC (SSiC)
| Property | Value / Performance |
|---|---|
| Max. Service Temperature (in air) | 1650 °C |
| Density | ≥ 3.06 g/cm³ |
| Flexural Strength (@ 20 °C) | 320 - 400 MPa |
| Thermal Conductivity (@ 20 °C) | 196 W/(m*K) |
| Coefficient of Thermal Expansion | 4.0 x 10⁻⁶/K |
| Hardness (HV1) | 2350 kg/mm² |
Material Comparison: SSiC vs. Alternatives
| Material | Max Temp | Thermal Shock | Oxidation Resistance | Key Advantage |
|---|---|---|---|---|
| Pressureless Sintered SiC (SSiC) | 1650 °C | Excellent | Excellent | Superior all-around performance |
| Alumina (Al₂O₃) | 1800°C | Poor | Excellent | High max temp, but brittle |
| Graphite | 3000°C | Good | Poor (requires atmosphere) | Best conductivity, but oxidizes |
| Reaction-Bonded SiC (RB-SiC) | 1380°C | Good | Good | Cost-effective for lower temps |
Our Customization Services
We provide tailored solutions to meet your exact needs:
- Dimensional Customization: Round or square configurations; flat, semi-flat, or spherical bases
- Structural Modifications: Flange additions, precision drilling, and other custom features
Material Recommendations
Primary Choice (SSiC): For high-temperature applications (>1380°C) requiring superior corrosion resistance, mechanical strength, and thermal shock resistance. Perfect for lithium battery materials and advanced ceramics.
Cost-Effective Alternative (RB-SiC): For applications under 1380°C where cost is a primary driver.
Alumina (Al₂O₃): Suitable for very high temperatures (up to 1800°C) in stable, non-thermal-shock environments.
