1500℃ Max Service Temp SiC Heating Element Double Helix Type Corrosion Resistant for High Temperature Furnaces
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
1500°C SiC Resistance High Temperature Heating Element - Double Helix Type High-performance silicon carbide heating elements designed for extreme temperature applications up to 1500°C, featuring double helix construction for optimal heat distribution and efficiency. Product Overview Production ...
Product Details
Highlight:
1500c heating elements
,1500c sic heater elements
,customized heating elements
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description

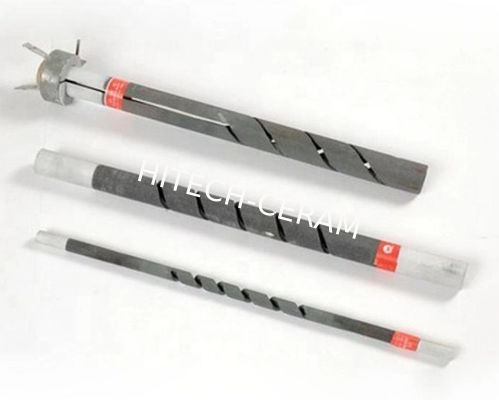

1500°C SiC Resistance High Temperature Heating Element - Double Helix Type
High-performance silicon carbide heating elements designed for extreme temperature applications up to 1500°C, featuring double helix construction for optimal heat distribution and efficiency.
Product Overview
- Production Process: Manufactured from blanks, silicided under high temperature, and re-crystallized
- Key Characteristics: High temperature resistance, oxidation resistance, corrosion resistance, long service life, minimal deformation, easy installation and maintenance
- Applications: Ideal for high temperature electric furnaces and heating devices in magnetic, ceramic, metallurgical, glass, and machinery industries
Physical Properties
| Specific Gravity | 2.6~2.8 g/cm³ | Bend Strength | >300 kg |
| Hardness | >9 MOH'S | Tensile Strength | >150 kg/cm³ |
| Porosity Rate | <30% | Radiancy | 0.85 |
Usage Guidelines
- Conduct resistance distribution testing before installation to ensure uniform furnace temperature and charge distribution
- Handle with care during installation and maintenance as elements are brittle and susceptible to damage
- When starting furnace operation, gradually increase voltage - never apply full load immediately
Technical Specifications
Required Information for Specification:
- Type
- OD: Outer Diameter
- HZ: Hot Zone
- CZ: Cold Zone
- OL: Overall Length
- Resistance (Ohms - Ω)
Standard Dimensions & Resistance Ranges
| Outer Diameter (mm) | Hot Zone (mm) | Cold Zone (mm) | Overall Length (mm) | Resistance Range (Ω) |
|---|---|---|---|---|
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Key Features
- Withstands temperatures up to 1600°C
- High strength with excellent shock resistance
- Noise-free, pollution-free heat source
- Superior oxidation and corrosion resistance
- Easy installation and maintenance
Ordering Information
Please provide the following details when placing your order:
- Type: rod, U, W, H, spiral, or double-spiral
- OD, HZ, CZ, OL dimensions
- For U or W types, specify terminal distance
- Any special resistance requirements
- Quantity needed
Industrial Applications
- Thermoforming & Vacuum Forming Machines
- PVC Pipe Belling / Socketing Machines
- Hot Stamping Machines
- Heat Therapy Equipment
- Shrink Packaging Systems
