Electric Double Helix SiC Heating Elements with 1500℃ Max Service Temp and Customized Size for Industrial Furnaces
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Electric Double Helix SiC Heating Elements For Electric Furnaces Silicon Carbide (SiC) heating elements are non-metallic electric heating components manufactured from high-purity green hexagonal SiC crystals generated at temperatures exceeding 2200°C. These elements can operate at temperatures up to ...
Product Details
Highlight:
customized sic heater elements
,customized sic heating elements
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description

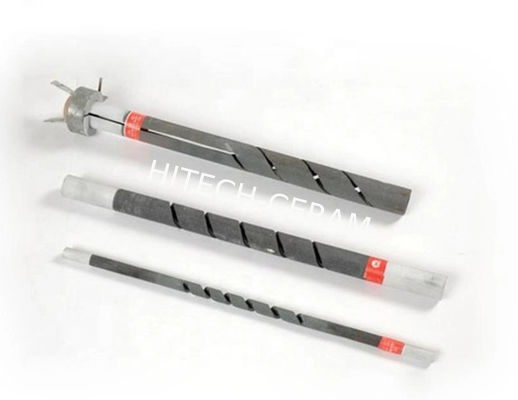

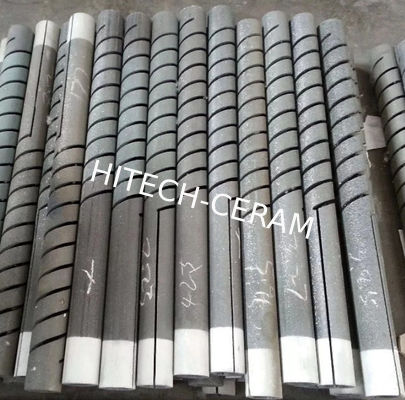

Electric Double Helix SiC Heating Elements For Electric Furnaces
Silicon Carbide (SiC) heating elements are non-metallic electric heating components manufactured from high-purity green hexagonal SiC crystals generated at temperatures exceeding 2200°C. These elements can operate at temperatures up to 1450°C and provide continuous service for over 2000 hours in vacuum atmospheres without requiring protective gas environments.
Physical Properties
| Property | Value | Property | Value |
|---|---|---|---|
| Specific Gravity | 2.6-2.8 g/cm³ | Bend Strength | >300 kg |
| Hardness | >9 MOH'S | Tensile Strength | >150 kg/cm³ |
| Porosity Rate | <30% | Radiancy | 0.85 |
Usage Guidelines
- Conduct resistance distribution testing before installation to ensure uniform furnace temperature and charge distribution across all elements
- Handle with care during installation and maintenance as elements are brittle and susceptible to damage
- When starting furnace operation, gradually increase voltage in stages - never apply full load immediately
Required Specifications for Ordering
When ordering Silicon Carbide Heating Elements, please provide the following specifications:
- Type
- OD: Outer Diameter
- HZ: Hot Zone length
- CZ: Cold Zone length
- OL: Overall Length
- Resistance in Ohms (Ω)
Standard Dimensions and Resistance Ranges
| OD (mm) | Hot Zone (mm) | Cold Zone (mm) | Overall Length (mm) | Resistance Range (Ω) |
|---|---|---|---|---|
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Key Features
- Withstands temperatures up to 1600°C
- High mechanical strength with excellent thermal shock resistance
- Noise-free and pollution-free heat source
- Superior oxidation and corrosion resistance
- Easy installation and maintenance
Ordering Information

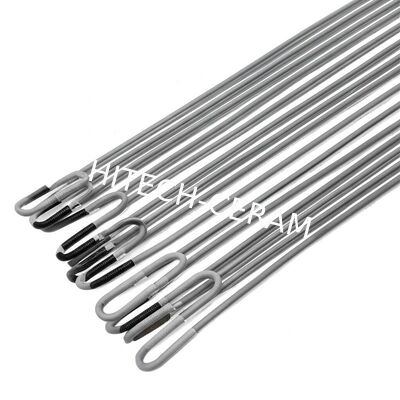

- Type: rod, U, W, H, spiral, or double-spiral configurations
- Dimensions: OD, HZ, CZ, OL
- For U or W types, specify terminal distance
- Special resistance requirements if applicable
- Quantity needed
Applications
- Thermoforming & Vacuum Forming Machines
- PVC Pipe Belling / Socketing Machines
- Hot Stamping Machines
- Heat Therapy Equipment
- Shrink Packaging Systems
