1400°C Max Temperature U W Rod Shape Silicon Carbide Heating Element Corrosion Resistant SiC Rod Heater for Furnace or Kiln
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
1400°C U/W Rod Shape Silicon Carbide Heating Element Silicon carbide heating elements are non-metallic high-temperature heating components manufactured from premium green silicon carbide. Through high-temperature siliconization and recrystallization processes, these elements deliver exceptional ...
Product Details
Highlight:
1400c silicon carbide rod
,1400c silicon carbide heating rod
,furnace silicon carbide rod
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description
1400°C U/W Rod Shape Silicon Carbide Heating Element
Silicon carbide heating elements are non-metallic high-temperature heating components manufactured from premium green silicon carbide. Through high-temperature siliconization and recrystallization processes, these elements deliver exceptional performance in demanding thermal environments, making them the preferred economical heating solution for industrial applications.
Product Overview
Technical Specifications
| Outer Diameter (OD, mm) | Hot Zone (HZ, mm) | Cold Zone (CZ, mm) | Overall Length (OL, mm) | Resistance Range (ohms) |
|---|---|---|---|---|
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
The specifications above represent a selection of our standard products. Custom specifications can be manufactured according to your specific requirements.

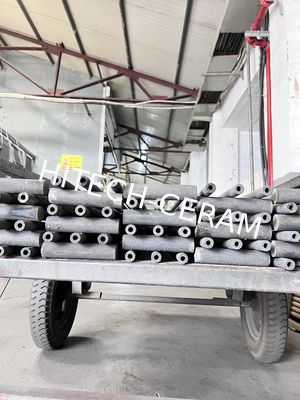

Detailed Product Images

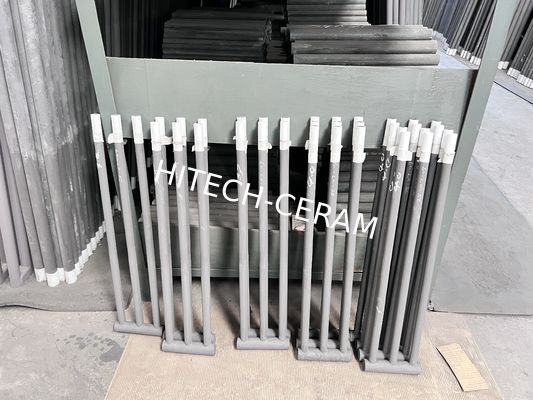

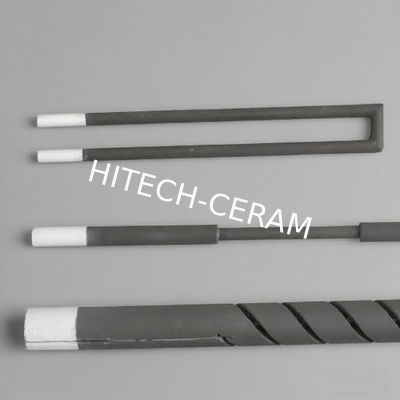

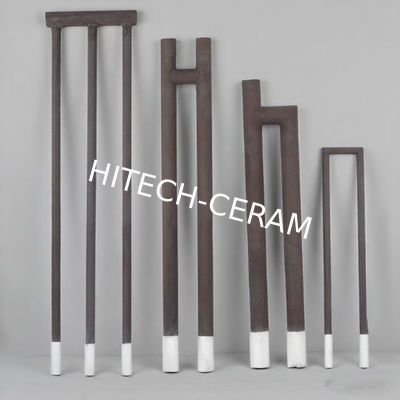

Available Configurations
Key Dimensions: Outer Diameter (OD, mm) | Hot Zone Length (HZ, mm) | Cold Zone Length (CZ, mm) | Overall Length (OL, mm) | Shank Spacing (A, mm) | Bridge (D, mm)
Quality Assurance
Performance Characteristics
Operating Temperature
Maximum 1400°C
Oxidation Resistance
High
Element Type
U Shape (U Type)
Service Life
10,000 hours
Application
Electrical Furnace
Product Category
Electric Heating Elements
Corrosion Resistance
Excellent
Primary Applications: Furnace Silicon Carbide Rod Heating Element, Carbide Rod Heating Element For Kiln
