MoSi₂ Heating Elements with 1800°C Max Service Temp, Self-Forming Protective Layer, and Stable Electrical Resistance for Industrial Applications
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Super MoSi₂ Heating Elements Premium high-temperature performance for industrial applications worldwide Our high-performance Molybdenum Disilicide (MoSi₂) heating elements are engineered to excel in extreme high-temperature settings across the globe. Ideal for use in ceramics, magnets, glass, ...
Product Details
Highlight:
mosi2 heater furnace
,customized mosi2 heater
,customized furnace heating element
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Volume Density:
5.5~5.6kg/cm³
Water Absortion:
1.2%
Size:
Customized
Porosity Rate:
7.4%
Vickers-Hadness:
(HV)570kg/mm2
Max. Service Temp.:
1800℃
Hot Extensiblity:
4%
Bend Strength:
15-25kg/cm2
Product Description

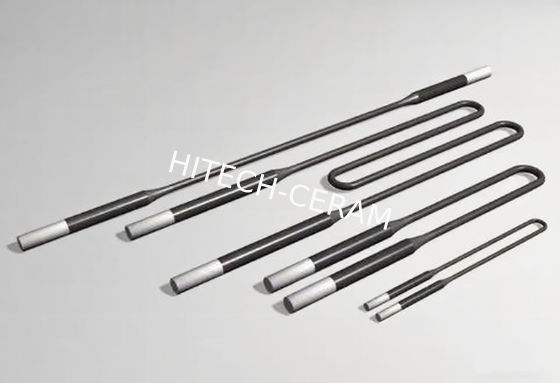

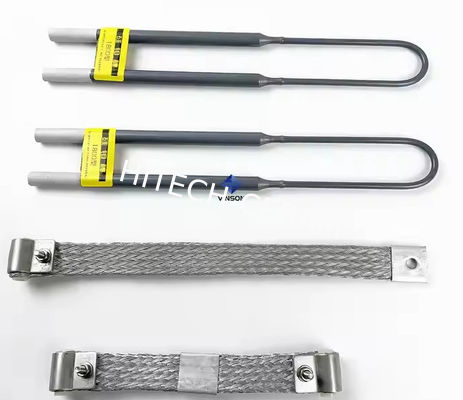

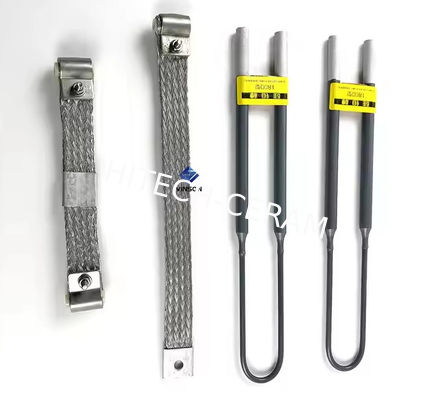

Super MoSi₂ Heating Elements
Premium high-temperature performance for industrial applications worldwide
Our high-performance Molybdenum Disilicide (MoSi₂) heating elements are engineered to excel in extreme high-temperature settings across the globe. Ideal for use in ceramics, magnets, glass, metallurgy, and refractory material industries, these elements offer superior durability, energy efficiency, and long-term reliability.
Key Features & Advantages
Exceptional High-Temp Performance
Reliable operation from 500°C up to 1700°C, with a maximum withstand temperature of 1800°C.
Self-Forming Protective Layer
In oxidizing atmospheres, a quartz glass layer forms automatically, preventing oxidation and extending service life.
Stable Electrical Resistance
Predictable resistivity increase with temperature and consistent performance over time—allowing easy combination of old and new elements.
Robust Mechanical Properties
- Volume Density: 5.5-5.6 g/cm³
- Bend Strength: 15-25 kg/cm²
- Vickers Hardness: 570 kg/mm²
Easy Installation & Minimal Maintenance
Simplified integration and dependable operation reduce downtime and total cost of ownership.
Avoid prolonged use between 400-700°C to prevent low-temperature oxidation.
Product Specifications & Selection Guide
We provide end-to-end technical support and a complete portfolio of MoSi₂ heating elements, including:
- Maximum Temperature: 1700°C / 1800°C

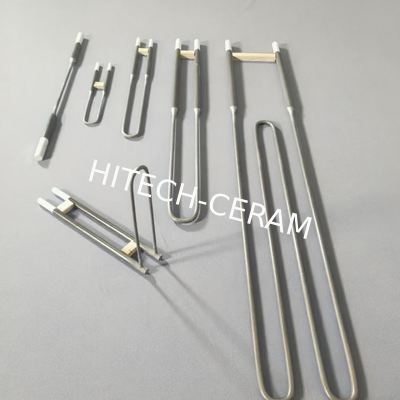

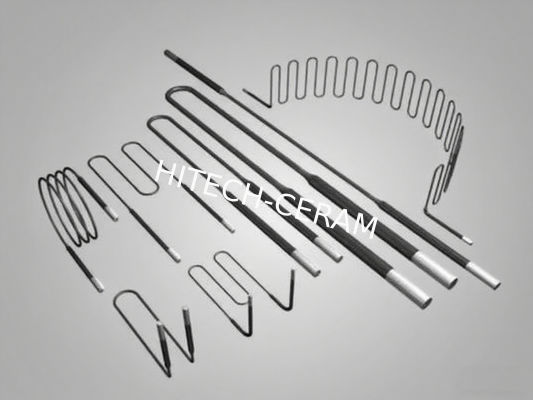

- Shapes Available: U-Type, W-Type, I-Type, L-Shaped (U & W), Spiral
Two High-Purity Grades for Different Applications
| Parameter | Standard Market Elements | Our 1700-Grade | Our 1800-Grade |
|---|---|---|---|
| Purity | ≤99.9% | 99.9% | 99.999-99.9999% |
| Al/Fe Content | 500-1000 ppm | <100 ppm | <1 ppm |
Technical Comparison: 1700-Grade vs. 1800-Grade
| Parameter | 1700-Grade MoSi₂ | 1800-Grade MoSi₂ |
|---|---|---|
| Element Temperature | 1500°C | 1700°C |
| Furnace Temperature | 1300°C | 1600°C |
| Current (A) | 150-275 | 45-120 |
| Surface Load (W/cm²) | 14.5-15 | 10-11.5 |
| Resistivity (Ω) | 0.048-0.115 (U-type) | 0.186-0.398 (U-type) |
Which Grade Is Right for You?
1700-Grade (99.9% Pure)
Perfect for standard dental furnaces and general industrial heating. Costs 15% less than 1800-grade and outperforms conventional commercial elements.
1800-Grade (99.9999% Pure)
Essential for high-end applications including:
- Zirconia sintering (BruxZir, Katana)
- Translucent multilayer ceramics
- High-purity material processing
