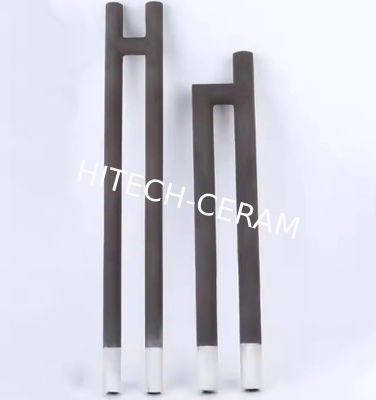

High Purity SiC Heating Rod with 1500°C Max Service Temp and Customizable Sizes for Industrial Furnaces
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace The 1500°C ED Type SiC Heating Element is a non-metallic high-temperature electric heating solution manufactured from selected high-purity green silicon carbide. Through processing at 2400°C, the material forms silicon crystal ...
Product Details
Highlight:
industrial sic heater elements
,industrial sic heating elements
,furnace sic heater elements
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description
Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace
The 1500°C ED Type SiC Heating Element is a non-metallic high-temperature electric heating solution manufactured from selected high-purity green silicon carbide. Through processing at 2400°C, the material forms silicon crystal blanks ideal for furnace applications operating between 600°C and 1600°C. These elements are widely utilized in glass, chemical, and electronic material heating applications.
Product Specifications
Diameter Range: 8mm to 60mm
Length Range: 300mm to 450mm
Available Configurations: Equal diameter, groove-shaped, U-shaped, gun-shaped
Length Range: 300mm to 450mm
Available Configurations: Equal diameter, groove-shaped, U-shaped, gun-shaped
Key Features & Advantages
- Maximum working temperature of 1600°C
- Rapid temperature rise with stable performance and extended service life
- Noise-free operation with zero air pollution
- Easy installation and minimal maintenance requirements
