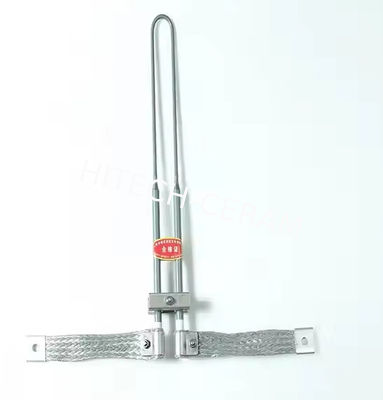

1800°C U-Shape MoSi2 Heating Element for Dental Furnace with Customizable Sizes and High Oxidation Resistance
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
1800°C U-Shape MoSi2 Heating Element for Dental Furnace MoSi₂ (Molybdenum Disilicide) heating elements are high-performance resistance elements made primarily from pure molybdenum disilicide. When exposed to an oxidizing atmosphere at high temperatures, the surface forms a protective quartz film ...
Product Details
Highlight:
u shape furnace heating element
,1800c furnace heating element
,1800c semiconductor heating element
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
5.5~5.6g/cm³
Max. Service Temp:
1800℃
Flexural Strength:
15-25kg/cm2
Size:
Customized
Vickers-Hadness:
(HV) 570kg/mm2
Hot Extensiblity:
4%
Porosity Rate:
7.4%
Water Absortion:
1.2%
Product Description

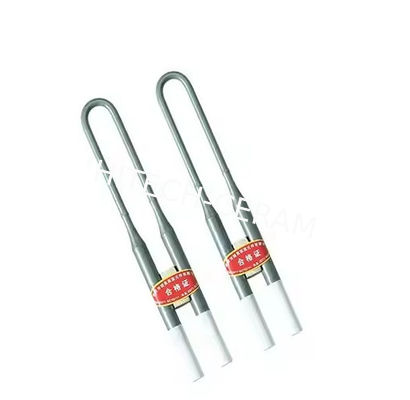

1800°C U-Shape MoSi2 Heating Element for Dental Furnace
MoSi₂ (Molybdenum Disilicide) heating elements are high-performance resistance elements made primarily from pure molybdenum disilicide. When exposed to an oxidizing atmosphere at high temperatures, the surface forms a protective quartz film that prevents further oxidation. These elements are ideal for high-temperature applications ranging from 500°C to 1800°C, including sintering and heat treatment in ceramics, magnets, glass, metallurgy, and refractories.
Product Specifications
| Parameter | Specifications |
|---|---|
| Temperature Grades | 1700°C, 1800°C |
| Available Shapes | U-type, W-type, I-type, L-type, WL-type, Spiral types |
| Standard Sizes (Diameter/Cold End) | M1700 Series: Φ3/6, Φ4/9, Φ6/12, Φ9/18, Φ12/24 M1800 Series: Φ3/6, Φ4/9, Φ6/12, Φ9/18, Φ12/24 |
Installation Guide for MoSi2 Heating Elements
Vertical Installation Method
MoSi2 heating elements are brittle at room temperature but become ductile at high operating temperatures. The recommended installation method for U-shaped elements is vertical suspension from the furnace top using specialized support clamps. This approach prevents mechanical stress from concentrating on the heating zone of the element, significantly reducing the risk of fracture and extending service life.
Key Installation Requirements

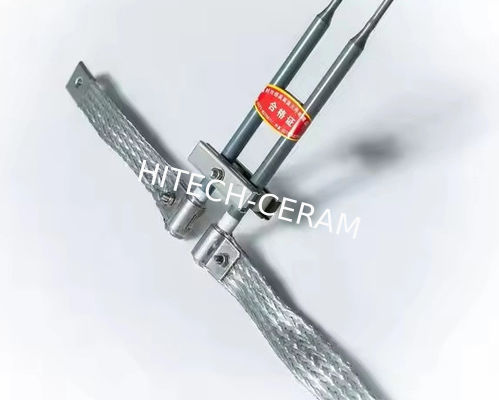

- Support Clamp Selection: Specific support clamps are designed for different element sizes (e.g., 6/12 and 9/18 types)
- Precise Alignment: Clamps must be carefully installed to ensure perfect vertical positioning
- Proper Insertion: The tapered lower end must fully extend into the furnace chamber to prevent localized overheating
- Weight Distribution: Support clamps must bear the entire element weight while maintaining secure positioning
Product Series Classification
| Series Type | Operating Temperature | Available Specifications | Configuration Types |
|---|---|---|---|
| 1700 Series | Up to 1700°C | Φ6-12 mm | W-type, U-type, L-type, Custom |
| 1800 Series | Up to 1800°C | Φ3-12 mm | U-type, W-type |
| 1800J Series | ≥1800°C | Φ3-12 mm | W-type |
| 1800T Series | ≤1800°C | Φ3-12 mm | U-type |
Voltage Settings for Small Furnaces (<100 kW)
| Temperature Range | Voltage Setting |
|---|---|
| 20-150°C | ⅓ Operating Voltage |
| 150-500°C | ⅔ Operating Voltage |
| 500°C to Target Temperature | Full Operating Voltage |
Voltage Settings for Large Furnaces (100-500 kW)
| Temperature Range | Voltage Setting |
|---|---|
| 20-300°C | ⅓ Operating Voltage |
| 300-700°C | ⅔ Operating Voltage |
| 700°C to Target Temperature | Full Operating Voltage |
Key Advantages
- Exceptional oxidation resistance at high temperatures
- Stable performance in oxidizing atmospheres
- Long service life (up to 10,000 hours)
- Customizable sizes and configurations
- Suitable for dental furnaces and zirconia sintering applications
Applications
- Dental zirconia sintering furnaces
- High-temperature ceramic processing
- Magnetic material heat treatment
- Glass manufacturing and processing
- Metallurgical heat treatment
- Refractory material production
Ordering Specifications
To proceed with your inquiry or order, please provide the following specifications:
D1: Hot Zone Diameter (mm)
D2: Cold End Diameter (mm)
Le: Length of Hot Zone (mm)
Lu: Length of Cold End (mm)
A: Shank Spacing / Center Distance (mm)
Please format your dimensions as follows:
D1/D2 * Le * Lu * A
(Example: 4/9 * 200 * 250 * 45mm)
(Example: 4/9 * 200 * 250 * 45mm)
Providing these exact parameters will ensure we can accurately meet your requirements.
Packaging & Delivery
Secure Packaging

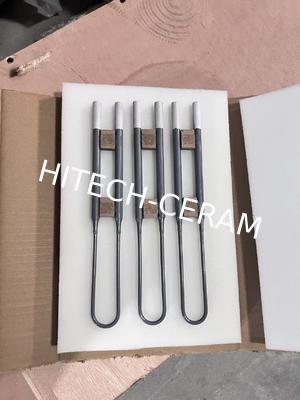

Each MoSi2 heating element is carefully packaged in a custom-sized wooden case. The interior is lined with high-density foam to provide maximum shock absorption and prevent damage during transit. This ensures the brittle elements arrive in perfect condition.
Global Delivery
We offer reliable worldwide shipping options to get your order to you quickly and safely.
