High-Temperature (1500°C) U-Shape Silicon Carbide Heating Elements with Customizable Designs and High-Purity Material
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements Our U-Shape Silicon Carbide (SiC) heating elements are engineered for extreme heat environments, offering reliable and durable performance in industrial high-temperature applications. With a maximum operating temperature of 1500°C, they ...
Product Details
Highlight:
u shape sic heating elements
,1400c sic heater elements
,1400c sic heating elements
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1400~1500℃
Flexural Strength:
>300kg/cm2
Size:
Customized
Heat Conduction:
10-14 M.hr.℃
Resistivity:
600～1400 Mm2/m
Tensile Strength:
>150kg/cm2
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5.2×10⁻⁶/℃
Product Description

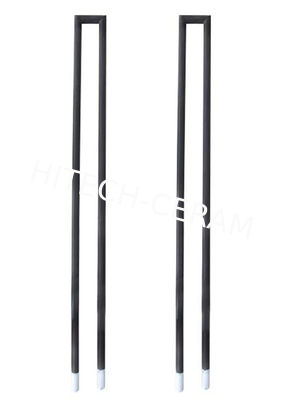

High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements
Our U-Shape Silicon Carbide (SiC) heating elements are engineered for extreme heat environments, offering reliable and durable performance in industrial high-temperature applications. With a maximum operating temperature of 1500°C, they are ideal for electric furnaces and heating systems across various industries.
Key Features
- High-Purity Material: Made from select green SiC powder ensuring top-quality performance
- High-Density Structure: Manufactured using a 500T press machine for uniform density and extended service life
- Optimized Resistance Design: Excellent resistance gradient between heating zone and cooling zone prevents overheating at terminals, protecting furnace integrity
- Advanced Oxidation Protection: A specialized protective coating on the heating zone significantly enhances antioxidant properties, prolonging element lifespan
- Customizable Designs: Available in various standard sizes and geometries, with full customization options

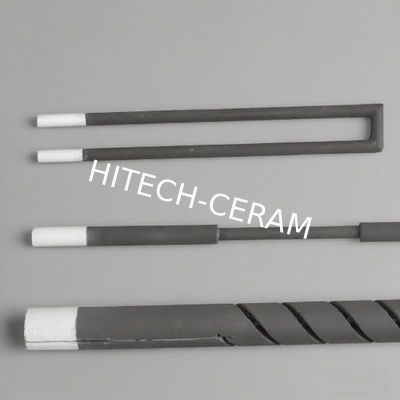

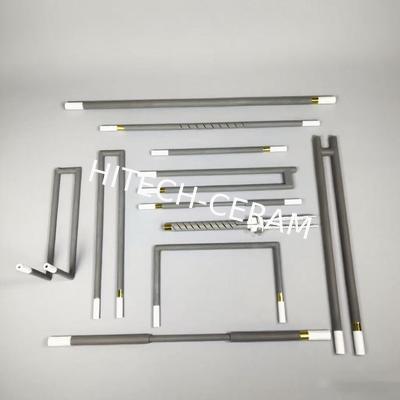

Available Element Types

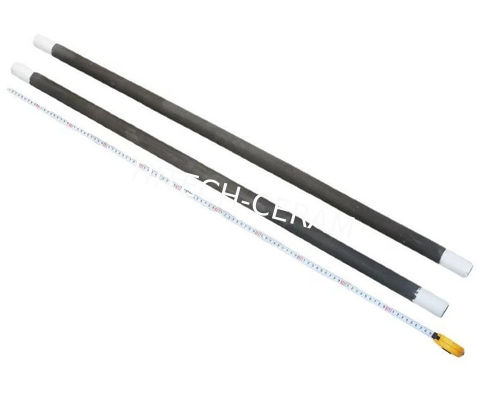

- Straight Rod (GD type)

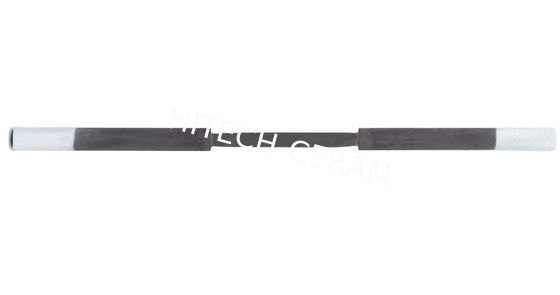

- Dumbbell Type (GC type)

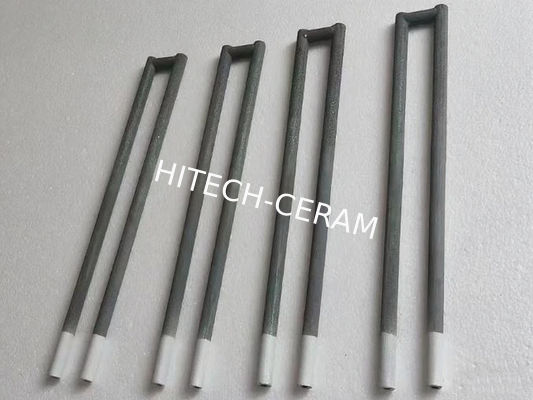

- U-Shape (U type)
- W-Shape (W type)
- Single Spiral (SD type)
- Double Spiral (SG type)
Ordering Information
To ensure optimal performance and perfect fit for your application, please confirm these specifications when ordering:
- Element Type (e.g., U-type, W-type, etc.)
- Outer Diameter (OD)
- Heating Zone Length (HZ)
- Cooling Zone Length (CZ)
- Overall Length (OL)
- Resistance Requirements (if specifically needed)
- Center Distance (For U-type and W-type elements)
All elements can be custom-designed to meet your specific process requirements and equipment specifications.
