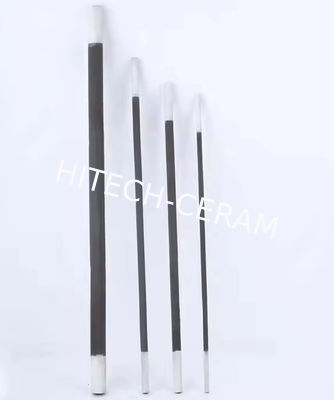

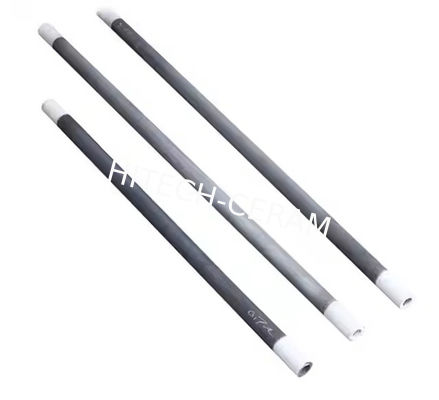

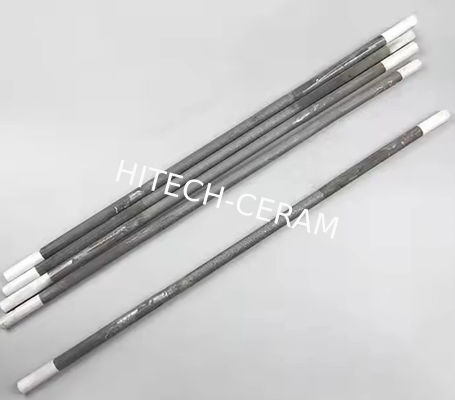

High Temperature Corrosion Resistant Silicon Carbide Rod SiC Heater with Customizable Size for Laboratory Furnaces
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
High Temperature Silicon Carbide Heating Elements Premium silicon carbide rod heaters designed for laboratory muffle and tube furnaces, offering exceptional performance at extreme temperatures up to 1600°C. Product Specifications Outer Diameter (mm) Hot Zone (mm) Cold Zone (mm) Overall Length (mm) ...
Product Details
Highlight:
furnace sic heater
,furnace silicon carbide rod
,customized sic heater
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description
High Temperature Silicon Carbide Heating Elements
Premium silicon carbide rod heaters designed for laboratory muffle and tube furnaces, offering exceptional performance at extreme temperatures up to 1600°C.
Product Specifications
| Outer Diameter (mm) | Hot Zone (mm) | Cold Zone (mm) | Overall Length (mm) | Resistance Range |
|---|---|---|---|---|
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Key Features
- Withstands temperatures up to 1600°C
- High strength and excellent thermal shock resistance
- Noise-free and pollution-free heat source
- Superior oxidation and corrosion resistance
- Easy installation and maintenance
Ordering Information
To place an order, please provide the following specifications:
- Type: rod, U, W, H, spiral, or double-spiral configurations
- Dimensions: Outer Diameter, Hot Zone, Cold Zone, Overall Length
- For U or W types: specify terminal distance
- Special resistance requirements (if applicable)
- Quantity needed
Applications
Thermoforming & Vacuum Forming Machines • PVC Pipe Belling/Socketing Machines • Hot Stamping Machines • Heat Therapy Equipment • Shrink Packaging
