High Temperature Spiral Rod Type Sic Heater Silicon Carbide Heating Element with Max. Service Temp 1500℃ for Furnace

Large Image : High Temperature Spiral Rod Type Sic Heater Silicon Carbide Heating Element with Max. Service Temp 1500℃ for Furnace

Product Details:

Place of Origin:	China
Brand Name:	KEGU
Model Number:	Customizable

Payment & Shipping Terms:

Price:	200-500 yuan/kg
Packaging Details:	Strong wooden box for Global shipping
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2,000 pcs/month

Contact Now

High Temperature Spiral Rod Type Sic Heater Silicon Carbide Heating Element with Max. Service Temp 1500℃ for Furnace

Description

Material:	SiC	Composition:SiC:	＞85%
Color:	Black	Density:	2.5~2.6g/cm³
Max. Service Temp:	1380℃	Flexural Strength:	70-90 MPa
Size:	Customized	Heat Conduction:	23.26 W/(m·℃)
Resistivity:	1000～2000 Ω·mm2/m	Tensile Strength:	39.2～49 MPa
Max. Service Temp.:	1500℃	Linear Thermal Expansion Coefficient (20-1500℃):	5×10⁻⁶/℃
Electrical Resistivity:	1000~2000Ω·mm²/m
Highlight:	spiral sic bar , spiral sic heater , furnace sic bar

U W I High Temperature Spiral Rod Type SiC Heater

Electric spiral silicon carbide heating elements are non-metallic high temperature electric heating components manufactured from selected high-purity green silicon carbide. These elements are formed into blanks and undergo silicon crystallization at temperatures up to 2400°C. Designed for furnace applications operating between 600°C to 1600°C, they are widely used in glass, chemical, and electronic material heating applications.

Product Specifications

Available in various configurations to meet market demands:

Diameter range: 8mm to 60mm
Length range: 300mm to 450mm

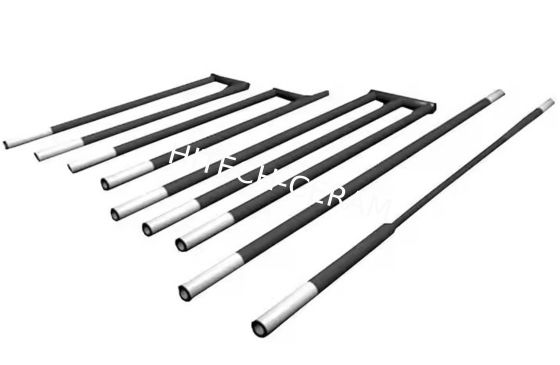

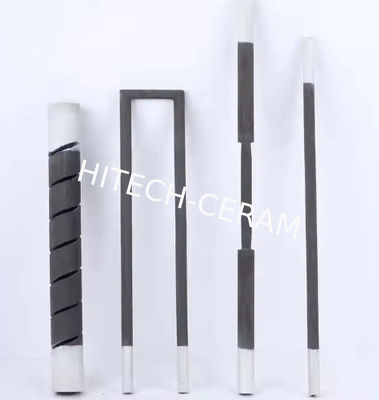

Specialized designs: equal diameter, groove-shaped, U-shaped, and gun-shaped configurations

Key Features and Advantages

1	Maximum working temperature of 1600°C
2	Rapid temperature rise with stable performance and extended service life
3	Noise-free operation with zero air pollution
4	Easy installation and minimal maintenance requirements

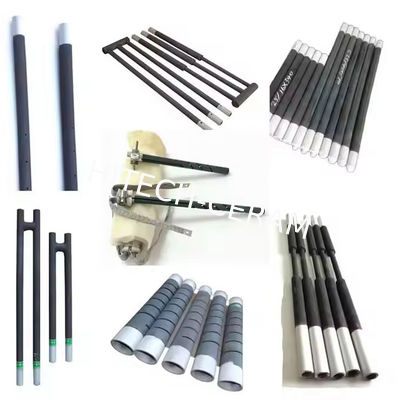

Product Gallery

Quality Control
