1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater

1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater
1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater 1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater 1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater 1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater 1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater

Large Image :  1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

1500°C High Temperature Double Spiral SiC Heating Element - Corrosion Resistant DB Type Silicon Carbon Heater

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: 2.5~2.6g/cm³
Max. Service Temp: 1380℃ Flexural Strength: 70-90 MPa
Size: Customized Heat Conduction: 23.26 W/(m·℃)
Resistivity: 1000～2000 Ω·mm2/m Tensile Strength: 39.2～49 MPa
Max. Service Temp.: 1500℃ Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

customized heating elements

,

customized sic heater elements

1500°C High Temperature SiC Heating Element DB Type

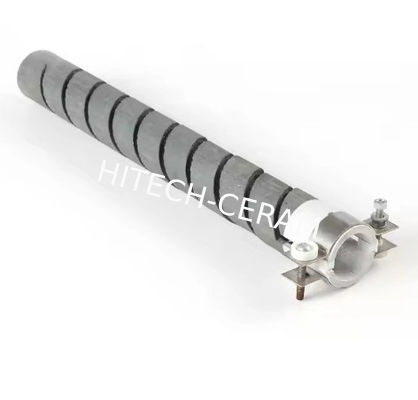

Double Spiral SiC Heating Elements feature a spiral-grooved heating section, offering superior heat and corrosion resistance compared to conventional products, making them ideal for rigorous operating conditions.
Product Features
  • Manufactured from selected super quality green silicon carbide
  • Maximum operating temperature: 1600°C
  • Energy-saving design with low-resistance, cold-end terminals
  • Low expansion coefficient
  • Minimal deformation
  • Stable chemical properties
  • Long service life
  • Easy installation and maintenance
Physical Properties
Specific Gravity 2.6~2.8 g/cm³ Bend Strength >300 kg
Hardness >9 MOH'S Tensile Strength >150 kg/cm³
Porosity Rate <30% Radiancy 0.85
Dimensions & Resistance Specifications
OD (mm) Hot Zone (mm) Cold Zone (mm) Overall Length (mm) Resistance Range (Ω)
8100-30060-200240-7002.1-8.6
12100-400100-350300-11000.8-5.8
14100-500150-350400-12000.7-5.6
16200-600200-350600-13000.7-4.4
18200-800200-400600-16000.7-5.8
20200-800250-600700-20000.6-6.0
25200-1200250-700700-26000.4-5.0
30300-2000250-800800-36000.4-4.0
35400-2000250-800900-36000.5-3.6
40500-2700250-8001000-43000.5-3.4
45500-3000250-7501000-45000.3-3.0
50600-2500300-7501200-40000.3-2.5
54600-2500300-7501200-40000.3-3.0
Ordering Information: Please specify OD (Outer Diameter), HZ (Hot Zone length), CZ (Cold Zone length), and OL (Overall Length). Special resistance requirements should be communicated during ordering.
Applications

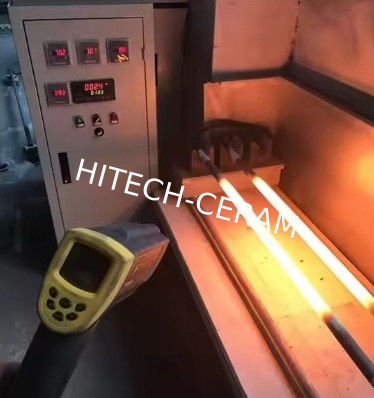

Suitable for furnace applications operating at 600-1600°C. Can be used directly in air atmosphere without protective gas. Widely used in metallurgy, ceramics, glass, machinery, analytical testing, semiconductor, and research applications.
Installation & Usage Guidelines
  • Protect heaters from moisture during storage and installation
  • Group heaters by resistance tolerance (within 10%) for even load distribution
  • Handle with care during assembly and maintenance due to brittle nature
  • Gradually increase voltage during initial operation; avoid full load immediately
  • Replace damaged heaters following resistance increase patterns
