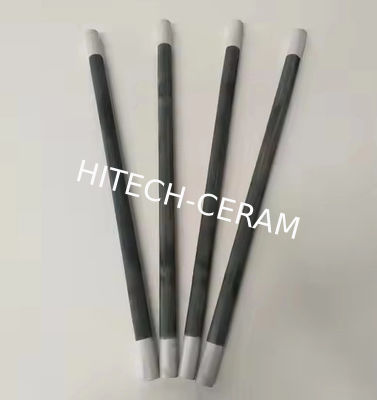

High-Temperature SiC Heating Elements for Ovens with 1500°C Max Service Temp Anti-Corrosion and Long Life
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
High-Temperature Silicon Carbide (SiC) Heating Elements Our premium Silicon Carbide (SiC) heating elements are engineered for extreme conditions, offering superior performance, exceptional longevity, and consistent heat up to 1600°C. Ideal for industrial furnaces and high-temperature processing ...
Product Details
Highlight:
Oven Silicon Carbide Heating Elements
,Anti Corrosion SIC Heating Elements
,Silicon Carbide Heating Elements 1500C
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description

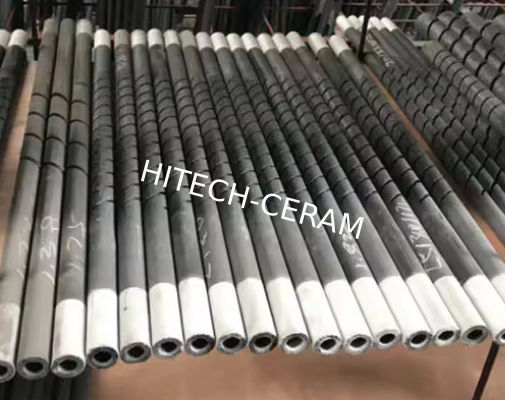

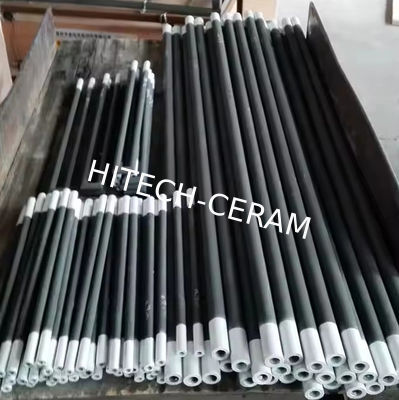

High-Temperature Silicon Carbide (SiC) Heating Elements
Our premium Silicon Carbide (SiC) heating elements are engineered for extreme conditions, offering superior performance, exceptional longevity, and consistent heat up to 1600°C. Ideal for industrial furnaces and high-temperature processing applications.
Product Specifications & Sizing Guide
Find the perfect element for your furnace with our comprehensive sizing chart. All dimensions are in millimeters (mm).
| Outer Diameter (mm) | Hot Zone (mm) | Cold Zone (mm) | Overall Length (mm) | Range of Resistance |
|---|---|---|---|---|
| 8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
Note: Custom dimensions and resistance values are available upon request.
Key Features & Benefits

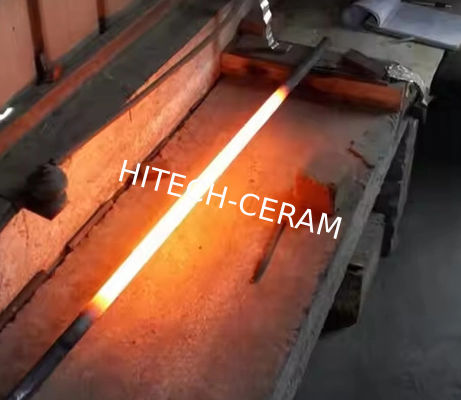

- Withstands Extreme Temperatures: Reliable operation up to 1600°C (2912°F) for the most demanding processes
- High Mechanical Strength: Excellent shock resistance and structural integrity for long service life
- Clean & Quiet Heat Source: Produces no noise or air pollution, ensuring a better working environment
- Superior Durability: Anti-oxidation and anti-corrosion properties reduce degradation and maintenance costs
- Easy Installation & Maintenance: Designed for straightforward integration and servicing to minimize downtime
How to Place Your Custom Order
To ensure you receive the correct SiC heating element, please provide the following information:
- Type: Rod, U-Type, W-Type, H-Type, Spiral, or Double-Spiral
- Critical Dimensions: Outer Diameter (OD), Hot Zone (HZ), Cold Zone (CZ), and Overall Length (OL)
- Terminal Distance (For U/W Types): Specify the required center-to-center terminal distance
- Specific Resistance (If required): Inform us of any precise resistance (Ω) requirements
- Quantity: Your required volume for accurate pricing
Uncompromising Quality Control
Every Silicon Carbide heating element undergoes rigorous testing to guarantee performance, dimensional accuracy, and electrical properties. We provide quality inspection reports to ensure you receive components you can trust.
Primary Applications
- Industrial & Laboratory Electric Furnaces
- Sintering, Annealing, and Heat Treatment Processes
- Ceramics, Glass, and Metallurgy Industries
- Thermoforming & Vacuum Forming Machines
- PVC Pipe Belling / Socketing Machines
- Hot Stamping Machines
- Heat Therapy Equipment
- Shrink Packaging Systems
