High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
High-Temp SiC Heating Rods & Tubes for Kilns & Furnaces Product Overview Our Silicon Carbide (SiC) Heating Elements are advanced, non-metallic electric heating solutions engineered for extreme-temperature industrial applications. Manufactured from high-purity silicon carbide, these rods and tubes ...
Product Details
Highlight:
Sic Ceramic Heating Elements
,Baking Oven Ceramic Heating Pipes
,Sic Heating Elements 1625C
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description
High-Temp SiC Heating Rods & Tubes for Kilns & Furnaces
Product Overview
Our Silicon Carbide (SiC) Heating Elements are advanced, non-metallic electric heating solutions engineered for extreme-temperature industrial applications. Manufactured from high-purity silicon carbide, these rods and tubes are formed into precise blanks and sintered at 2200°C through a specialized siliconization and recrystallization process. Ideal for oxidizing atmospheres, they deliver reliable performance at temperatures up to 1450 °C with a service life of up to 2000 hours.
These elements are essential components in high-temperature furnaces, kilns, and baking ovens across various sectors, offering superior thermal stability, corrosion resistance, and energy efficiency.
Key Features & Benefits
- Exceptional High-Temperature Performance: Stable operation up to 1450°C (2642°F)
- Extended Service Life: Designed for durability, providing up to 2000 hours of continuous use
- Superior Thermal & Mechanical Properties: High thermal conductivity, excellent thermal shock resistance, and high strength at elevated temperatures
- Anti-Oxidation & Corrosion Resistance: Reliable performance in harsh and oxidizing environments

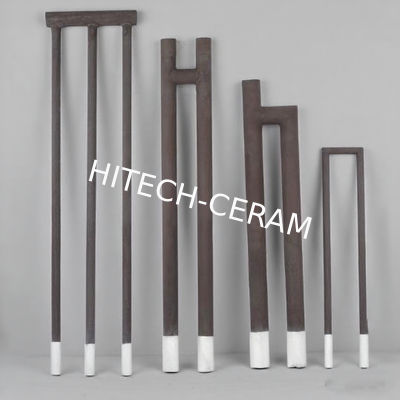

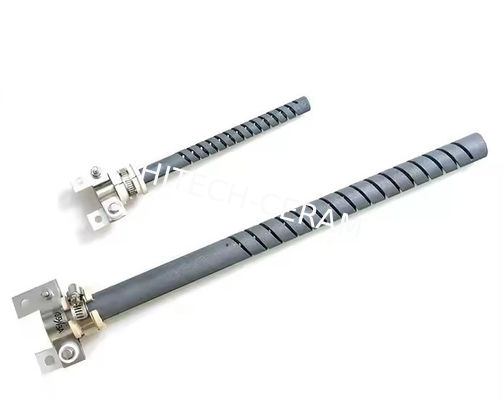

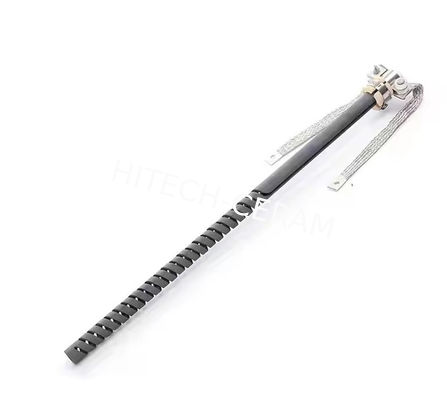

- Customizable Designs: Available in standard and custom shapes (ED, SC, SCR, U, W, Dumbbell) and sizes to meet specific furnace requirements
Our Silicon Carbide Product Range
- Silicon Carbide Tubes, Pipes, Beams, Rollers, Pillars & Heating Elements
- Reaction Sintered Silicon Carbide (RBSIC)
- Recrystallized Silicon Carbide (RSIC)
- Nitride Bonded Silicon Carbide (NBSIC)
- Sintered Silicon Carbide (SSiC)
Technical Specifications
| Specification | Details |
|---|---|
| Available Shapes | ED, SC, SCR, Dumbbell, U, W, and other custom configurations |
| Maximum Operating Temperature | Up to 1400°C - 1450°C |
| Manufacturing Process | High-temperature siliconization and recrystallization |
Applications
- Industrial heat treatment electric furnaces
- Metallurgy, non-ferrous metal smelting, and steel plant applications
- Power generation and coal chemical industries
- Sanitary ceramics, electric ceramics, and advanced ceramics kilns
- Tunnel kilns, shuttle kilns, and sintering furnaces
- Baking ovens and medium-frequency heating forging furnaces
