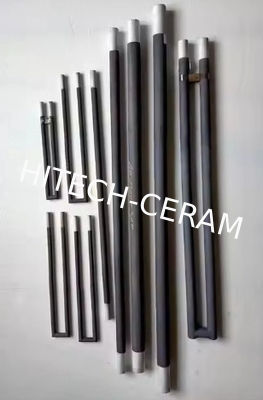

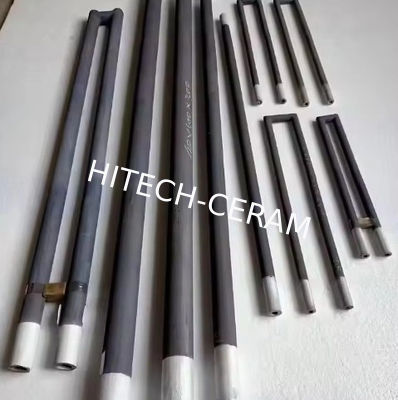

1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications

1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications
1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications 1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications 1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications 1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications

Large Image :  1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

1400°C U-Type SiC Tube Furnace: Customized Silicon Carbide Heating Elements for High-Temperature Applications

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: 2.5~2.6g/cm³
Max. Service Temp: 1380℃ Flexural Strength: 70-90 MPa
Size: Customized Heat Conduction: 23.26 W/(m·℃)
Resistivity: 1000～2000 Ω·mm2/m Tensile Strength: 39.2～49 MPa
Max. Service Temp.: 1500℃ Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

1400C Furnace Heater Elements

,

SiC Water Heater Elements

,

Electric SiC Tube Dia20mm

High-Temperature Industrial Heater: 1400°C U-Type SiC Tube Furnace
This advanced U-Type SiC (Silicon Carbide) Electric Tube Furnace serves as a highly efficient electric air heater, ideal for demanding applications in manufacturing plants and laboratories. Crafted from high-purity silicone carbide (SiC) heating elements, it delivers exceptional performance with a maximum operating temperature of 1400°C.

Key Features & Specifications
  • High-Temperature Performance: Robust heating up to 1400°C, with a standard working range of 600°C to 1300°C
  • Durable SiC Heating Elements: Silicon carbide core ensuring long life and consistent, reliable heat
  • Flexible Power Options: Compatible with wide voltage range from 110V to 480V
  • Customizable Dimensions: Length x Width x Height manufactured to your specifications
  • Condition & Weight: Brand new design at approximately 1KG
  • Key Selling Point: High-end performance at competitive pricing
Primary Applications
This U-Type SiC Tube Furnace is designed for industrial process heating in manufacturing plants, laboratory research, testing, material synthesis, and any application requiring reliable high-temperature electric air heating.

Company Information & Services
Who We Are
We are a specialized manufacturer based in Xi'an, China, with expertise in high-temperature heating solutions since 2007. Our global reach extends to North America, South America, Europe, Asia, Africa, and the Middle East, supported by a dedicated team of 11-50 professionals.
Our Quality Guarantee
We ensure product excellence through rigorous two-step quality control: pre-production sampling approval and final inspection of every shipment before dispatch.
Our Product Range
We specialize in high-temperature components including Silicon Carbide (SiC) Heating Elements, Silicon Molybdenum (MoSi2) Bars, and custom fixtures and furnace accessories.
Why Choose Us
We distinguish ourselves through commitment to quality, competitive pricing, and reliable customer support.
Services We Provide
Delivery Terms FOB, EXW, and others (please inquire)
Payment Currency USD, EUR, CNY
Payment Methods T/T (Bank Transfer), L/C

Tag:

Silicon Carbide Heating Elements,

Sic Heating Elements,

Sic Heater Elements
