Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C

Large Image : Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C

Product Details:

Place of Origin:	China
Brand Name:	KEGU
Model Number:	Customizable

Payment & Shipping Terms:

Price:	200-500 yuan/kg
Packaging Details:	Strong wooden box for Global shipping
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2,000 pcs/month

Contact Now

Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C

Description

Material:	SiC	Composition:SiC:	＞85%
Color:	Black	Density:	2.5~2.6g/cm³
Max. Service Temp:	1380℃	Flexural Strength:	70-90 MPa
Size:	Customized	Heat Conduction:	23.26 W/(m·℃)
Resistivity:	1000～2000 Ω·mm2/m	Tensile Strength:	39.2～49 MPa
Max. Service Temp.:	1500℃	Linear Thermal Expansion Coefficient (20-1500℃):	5×10⁻⁶/℃
Electrical Resistivity:	1000~2000Ω·mm²/m
Highlight:	U Type Mosi2 Heater , Furnace Mosi2 Heater , Molybdenum Disilicide Heater 1500C

Customized 1500C L W U Type Disilicide Molybdenum Mosi2 Heater Furnace Heating Element

Description

Feature:	High Temperature	Oxidation Resistance:	High
Type:	U Shape (U Type)	Working Lifetime:	10000h
Usage:	Electrical Furnace	Length:	As Requested
Product Type:	Electric Heating Elements	Max Max Temperature:	1700c
Corrosion Resistance:	Excellent	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Highlight:	Customized Mosi2 Heater Furnace , 1500C Mosi2 Heater Furnace , Mosi2 Heater Furnace Sic Heating Elements

Product details

Factory customized 1800C 1700C L W U Type Disilicide Molybdenum Mosi2 Heater Furnace Heating Element

Molybdenum disilicide(MoSi2) heating element:
Mosi heating element is a kind of resistance heating element basically made of pure molybdenum Disilicide. In oxidizing
atmosphere, a layer of compact quartz protective film is formed on the surface of Mosi 2 element owing to the high temperature combustion, which prevents Mosi 2 from continuously oxidizing.

In oxidizing atmosphere, its Max temperature can reach 1800 c and its applicable temperature is 500-1700. It can be widely used in such applications as sintering and heat treatment of ceramics, magnet, glass, metallurgy, refractory etc. the commercial name of our Mosi 2 heating element is KERONE Mosi 2 Heating Element.

mosi2 heating element

1. According to temperature: 1700C and 1800C

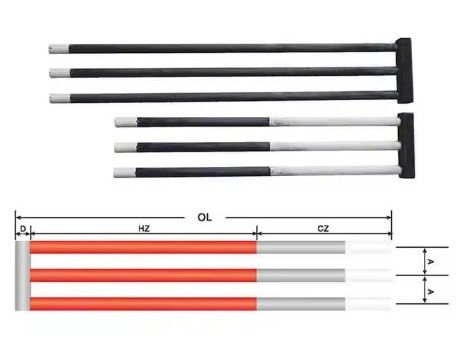

2. According to Shape: U, W, I, U type L shape, W type L shape, Spiral types.

mosi2 heating element standard size
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

Physics characters of mosi2 heating element

Bulk density	Bending strength	Hardness	Apparent porosity	Drawing water rate	Thermal elongation
5.6~5.8g/cm3	20MPa(20℃)	(hv)570kg/mm²	0.5~2.0%	0.5%	4%

Recommend surface load:

Furnace Temp(°c)	1400	1500	1600	1650	1700
Surface load of hot zone(W/cm²)	<18	<15	<12	<10	<8

Installation of mosi2 heating element

1)Vertically hanging
Under normal temperature, MoSi2 element is very brittleness, while under high temperature, it is plasticity, so the better way to install U Shape element is to hang it vertically from the furnace top through the support clamping chuck. The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end; otherwise the element will easily be broken.

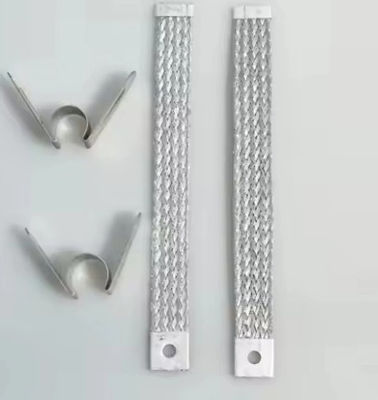

2) Support clamp
Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. The support clamp supports the whole weight of the element and the position of the element is also determined by it, therefore, it must be installed carefully to assure the element vertically hung. In order to prevent the element from being over heated locally, the taper part of the element lower end must put into the furnace chamber.

mosi2 heating element Application:

Item	name	distinction criterion	specification
Heating elements	1700 type	Element operating temperature 1700℃ is acceptable	Le Φ 6-12W type/U type/L type/all kinds of heating element
	1800 type	Element operating temperature 1800℃ is acceptable	Le Φ 6-12W type/U type/L type/all kinds of heating element
	1800J type	Element operating temperature≥1800℃	Le Φ 3-12W type
	1800T type	Element operating temperature≤1800℃	Le Φ 3-12W type U type

Small furnace (power100KW)		Large furnace(Power 100-500KW)
Furnace temperature	Voltage	furnace temperature℃	Voltage
20-150	1/3 Operating voltage	1/3 Operating voltage200-300	1/3 Operating voltage
150-500	2/3 Operating voltage	300-700	2/3 Operating voltage
500-operating temperature	The Whole-Operating Voltage	700-Operating temperature	The Whole-Operating Voltage
