High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs

High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs
High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs

Large Image :  High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: 2.5~2.6g/cm³
Bend Strength: >300kg Size: Customized
Hardness: >9 MOH 'S Tensile Strength: >150kg/cm3
Max. Service Temp.: 1500℃ Linear Expansion Coefficient: 5.2×10⁻⁶m/℃
Porosity Rate: <30% Radiancy: 0.85
Heat Conductivity: 10-14 Kcal/M Hr℃
Highlight:

Furnaces SiC Heating Elements

,

Corrosion Resistant SiC Heating Elements

,

U Shape Sic Element

China SiC Heating Elements with High Corrosion Resistance
Premium silicon carbide (SiC) heating elements engineered for superior performance in high-temperature and corrosive environments. Ideal for industrial heating, heat treatment, and furnace applications, these elements offer exceptional durability, rapid heating, and long-term reliability.
Key Features & Benefits
  • Exceptional Corrosion Resistance: Specially formulated to withstand aggressive atmospheres and chemical exposure.
  • High-Temperature Performance: Stable operation up to 1500 °C, ensuring consistent heat delivery.
  • Long Service Life: Designed for a working lifetime of up to 10,000 hours, reducing downtime and replacement costs.

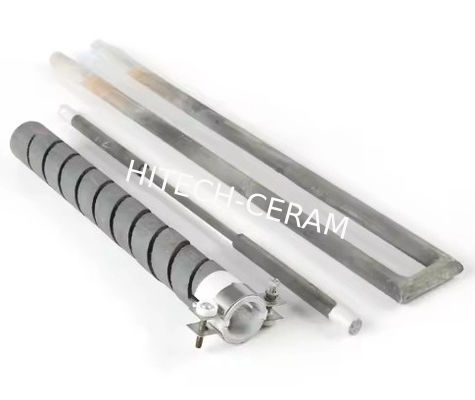

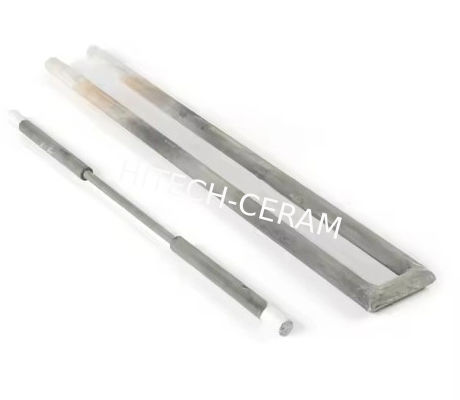

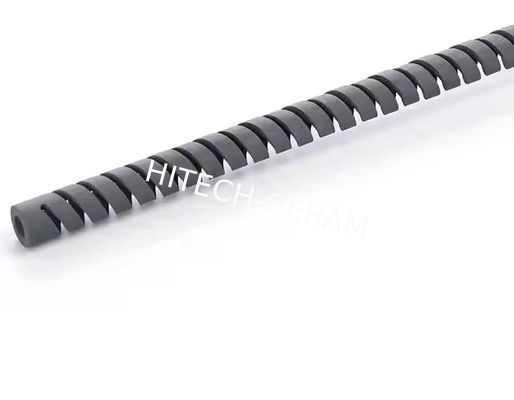

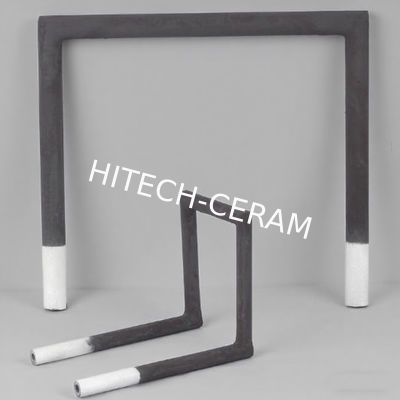

  • Customizable Designs: Available in multiple shapes (ED, U, W, spiral, double-spiral) and sizes to fit specific equipment requirements.
  • Pollution-Free Heating: Provides clean, noise-free heat without air pollution.
  • Easy Installation & Maintenance: Simplified design for quick integration and minimal upkeep.
Technical Specifications
Outer Diameter (mm) Hot Zone (mm) Cold Zone (mm) Overall Length (mm) Range of Resistance
8100-30060-200240-7002.1-8.6
12100-400100-350300-11000.8-5.8
14100-500150-350400-12000.7-5.6
16200-600200-350600-13000.7-4.4
18200-800200-400600-16000.7-5.8
20200-800250-600700-20000.6-6.0
25200-1200250-700700-26000.4-5.0
30300-2000250-800800-36000.4-4.0
35400-2000250-800900-36000.5-3.6
40500-2700250-8001000-43000.5-3.4
45500-3000250-7501000-45000.3-3.0
50600-2500300-7501200-40000.3-2.5
54600-2500300-7501200-40000.3-3.0
Applications
  • Industrial Heating Systems
  • Heat Treatment Furnaces
  • Thermoforming & Vacuum Forming Machines
  • PVC Pipe Belling / Socketing Equipment
  • Hot Stamping Machinery
  • Heat Therapy Devices
  • Shrink Packaging Systems
How to Order
To place an order or request a custom quote, please provide the following details:
  1. Type: Rod, U, W, H, spiral, or double-spiral.
  2. Dimensions: Outer diameter (OD), hot zone (HZ), cold zone (CZ), and overall length (OL).
  3. Terminal Distance (for U/W types).
  4. Resistance Requirements (if specified).
  5. Quantity.
Why Choose Our SiC Heating Elements?
  • 30+ Years of Manufacturing Expertise: We are a factory-direct supplier with extensive experience in producing high-quality SiC heating elements.
  • Customization Support: Our skilled engineers can tailor products to your exact specifications.
  • Competitive Pricing & Fast Delivery: Enjoy cost-effective solutions and reliable lead times.
Contact Us
Elevate your heating processes with our high-performance SiC heating elements. Reach out today for pricing, technical support, or custom product solutions!
High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs 0 High Corrosion Resistance SiC Heating Elements with 1500°C Max Service Temp and Customizable Designs 1
