U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Silicon Carbide SIC Heating Elements U Type For Muffle Furnace Our U-Shape (U-Type) Silicon Carbide (SiC) heating elements are high-performance, cost-effective solutions designed for extreme environments in muffle furnaces and various electrical furnaces. Manufactured from high-purity silicon ...
Product Details
Highlight:
Muffle Furnace Sic Heating Elements
,Muffle Furnace Silicon Carbide Elements
,U Type Sic Heating Elements
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5.2×10⁻⁶/℃
Product Description

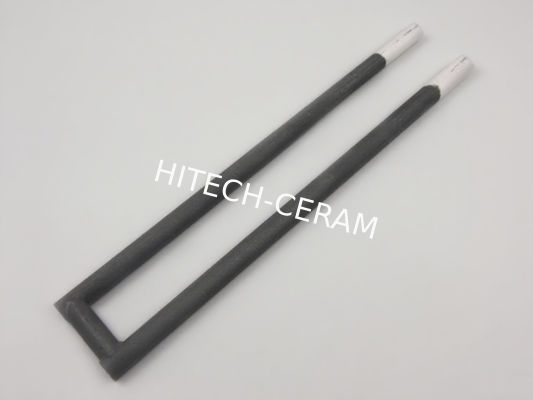

Silicon Carbide SIC Heating Elements U Type For Muffle Furnace
Our U-Shape (U-Type) Silicon Carbide (SiC) heating elements are high-performance, cost-effective solutions designed for extreme environments in muffle furnaces and various electrical furnaces. Manufactured from high-purity silicon carbide, these elements offer exceptional thermal stability, minimal deformation, and a long service life, even at temperatures up to 1600°C in air without a protective atmosphere.
Key Features & Benefits
- High-Temperature Performance: Reliable operation in environments ranging from 600°C to 1600°C
- Superior Oxidation Resistance: Excellent resistance to oxidation, ensuring durability and consistent performance
- Customizable Sizing: Available in custom lengths and configurations (OEM support available) to perfectly fit your specific furnace design and requirements
- High Thermal Conductivity: Efficient heat transfer with thermal conductivity of >18 W/m*K at 800°C
- Mechanical Strength: High cold crushing strength (150 MPa) and good rupture strength at elevated temperatures (>50 MPa at 1200°C)
- Low Thermal Expansion: Coefficient of thermal expansion <4.7x10⁻⁶/°C minimizes deformation and extends lifespan
- Easy Installation & Maintenance: Designed for straightforward installation and reliable long-term use
Applications
- Metallurgy Processing
- Ceramics Firing and Sintering
- Glass Manufacturing
- Laboratory & Research Muffle Furnaces
- Mechanical Testing Furnaces
- Analysis and Testing
- Semiconductor Processing
Technical Specifications
| Property | Value / Description |
|---|---|
| Type | U-Shape (U Type) |
| Usage | Muffle Furnace, Electrical Furnace |
| Max Operating Temperature | 1600°C (in air) |
| SiC Content | > 85% |
| Si₃N₄ Content | > 22% |
| Fe₂O₃ Content | < 0.5% |
| Bulk Density | 2.6 - 2.7 g/cm³ |
| Apparent Porosity | < 16% |
| Cold Crushing Strength | 150 MPa |
| Rupture Strength (at 1200°C) | > 50 MPa |
| Thermal Conductivity (at 800°C) | > 18 W/m*K |
| Thermal Conductivity (at 1200°C) | > 14 W/m*K |
| Thermal Expansion Coefficient | < 4.7 x 10⁻⁶ /°C |
Custom OEM Services Available: We specialize in producing custom-sized silicon carbide heating elements to meet your exact specifications. Contact us with your requirements.

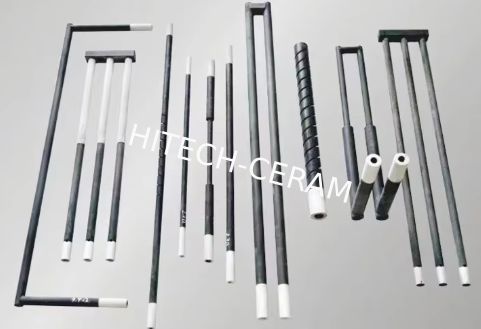

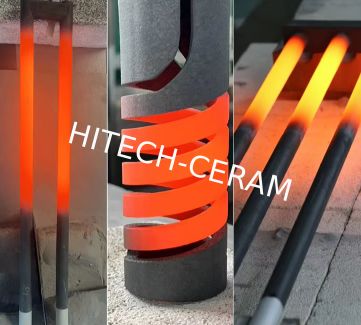

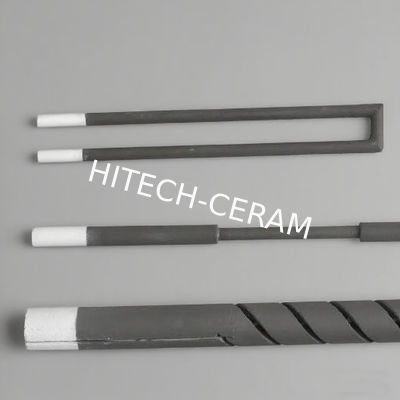

Product Images
Packaging & Shipping
Miss. Scarlett.S
Deputy Head of Foreign Trade Department
- Email: scarlett.s@kegugroup.com
- Tel: 8616602956098
- WhatsApp: 8613390790728
-
WeChat:
Scarlettseren533
