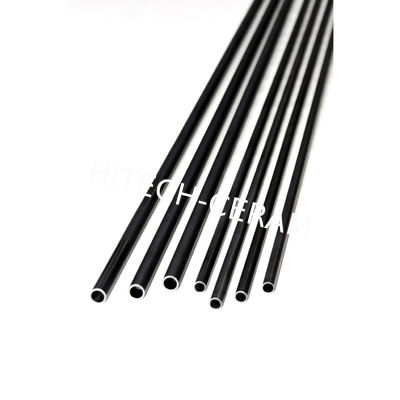

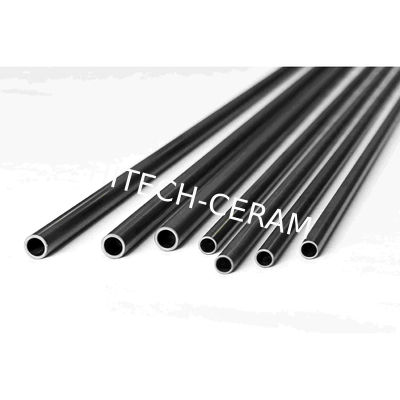

Pressureless Sintered SiC Heat Exchange Tubes with High-Temperature Resistance, Corrosion Resistance, and High Thermal Conductivity

Pressureless Sintered SiC Heat Exchange Tubes with High-Temperature Resistance, Corrosion Resistance, and High Thermal Conductivity
Pressureless Sintered SiC Heat Exchange Tubes with High-Temperature Resistance, Corrosion Resistance, and High Thermal Conductivity Pressureless Sintered SiC Heat Exchange Tubes with High-Temperature Resistance, Corrosion Resistance, and High Thermal Conductivity

Large Image :  Pressureless Sintered SiC Heat Exchange Tubes with High-Temperature Resistance, Corrosion Resistance, and High Thermal Conductivity

Product Details:
Place of Origin: China
Brand Name: KeGu
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Pressureless Sintered SiC Heat Exchange Tubes with High-Temperature Resistance, Corrosion Resistance, and High Thermal Conductivity

Description
Material: SiC Composition:SiC: >98%
Color: Black Density: >3.05g/cm3
Max. Service Temp.: 1650℃ Flexural Strength: 380MPa
Highlight:

Corrosion Proof Pressureless Sintered SiC

,

Pressureless Sintered SiC Heat Exchange Tube

,

Industrial Furnaces Sintered SiC Tube

Pressureless Sintered SiC Heat Exchange Tubes
Our pressureless sintered silicon carbide (SSiC) heat exchange tubes are engineered for extreme industrial environments. Manufactured through automated extrusion and sintered at ultra-high temperatures (2100-2200°C), they deliver unmatched thermal performance, exceptional corrosion resistance, and long-term structural stability. As the core component in shell-and-tube heat exchangers, they are the superior choice for maximizing efficiency and minimizing downtime in the most demanding applications.
Key Material Properties & Performance Data
The following table details the superior physical and thermal properties of our SSiC material that guarantee reliable performance.
Physical Properties Unit SSiC Value
Composition: SiC Vol% ≥ 98
Density @ 20 ℃ g/cm³ ≥ 3.05
Open Porosity Vol% ≈ 0
Hardness (Vickers HV1) kg/mm² 2350
Flexural Strength (20 °C) MPa 320 - 400
Flexural Strength (1300 °C) MPa 300 - 400
Coefficient of Thermal Expansion 10⁻⁶/K 4.0
Thermal Conductivity @ 20 °C W/(m*K) 196
Modulus of Elasticity @ RT GPa 410
Max. Service Temperature (in air) °C 1650
Why Choose Our SiC Heat Exchange Tubes?
  • Superior Corrosion Resistance: Withstands harsh acids, alkalis, and solvents, making it ideal for aggressive chemical processes where metals and alloys fail.
  • Exceptional High-Temperature Stability: Maintains mechanical strength and integrity in continuous operation at temperatures up to 1650°C in air.
  • High Thermal Conductivity: Excellent heat transfer (196 W/m*K at room temperature) ensures maximum efficiency in heating or cooling applications.
  • Outstanding Thermal Shock Resistance: Withstands rapid temperature changes (>350 ΔT), preventing cracking and failure.
  • Excellent Wear & Erosion Resistance: The extreme hardness (2350 HV) provides a long service life in applications with abrasive slurries or particulates.
  • Fully Dense & Impermeable: Near-zero open porosity prevents gas or fluid permeation, ensuring product purity and structural reliability.
Standard Product Sizes
We offer a range of standard sizes for rapid delivery. All dimensions are customizable to your specifications.
SN Outer Diameter (OD) Inner Diameter (ID) Wall Thickness
1 14 mm 11 mm 1.5 mm
2 16 mm 12 mm 2.0 mm
3 19 mm 14.5 mm 2.25 mm
4 25 mm 20 mm 2.5 mm
5 34 mm 24 mm 5.0 mm
Customization & Engineering Services
We provide comprehensive customization to meet your exact system requirements:
  • Custom Dimensions: Tubes can be produced in bespoke lengths, diameters, and wall thicknesses.
  • Precision End Machining: Options include flanged, threaded, or ground ends for perfect sealing and integration.
  • Advanced Drilling Services: Custom axial or radial hole patterns can be machined to meet specific flow distribution needs.
Industrial Applications
Our SiC tubes are critical components across multiple industries:
  • Petrochemical: High-temperature cracking furnaces; Sulfuric acid concentration systems.
  • Energy & Power: Waste heat recovery boilers; Advanced nuclear reactor cooling circuits.
  • Environmental Engineering: Flue gas desulfurization (FGD) scrubbers; Hazardous waste incineration systems.
  • Metallurgy: Heat recovery from non-ferrous metal smelting; Molten salt heat transfer systems.
