Si3N4 Nozzle Silicon Nitride Ceramic with High Temperature Strength Customizable and High Chemical Stability
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Si3N4 Nozzle Silicon Nitride Ceramics Oxidation Resistance High Toughness Silicon nitride nozzles and covers feature oxidation resistance, high temperature strength and minimal sputter adhesion, significantly extending the service life of welding components. Among the five silicon nitride production ...
Product Details
Highlight:
High Temperature Strength Si3N4 Nozzle
,Customizable Silicon Nitride Nozzle
,High Chemical Stability Ceramic Nozzle
Material:
Silicon Nitride
Composition:SiC:
＞85%
Color:
Black
Density:
3.20-3.26g/cm3
Max. Service Temp:
1450℃
Flexural Strength:
250MPa
Sample:
Customizable
Chemical Stability:
High
Apparent Porosity:
0-0.1%
Elastic Modulus:
300-320GPa
Compression Strength:
>1500MPa
Vickers Hardness(hv0.5):
15-16GPa
Thermal Conductivity:
20-25W/(m.k)
Specific Resistivity:
10^14Ω·cm
Product Description

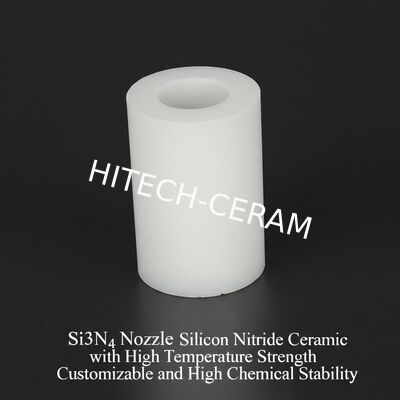

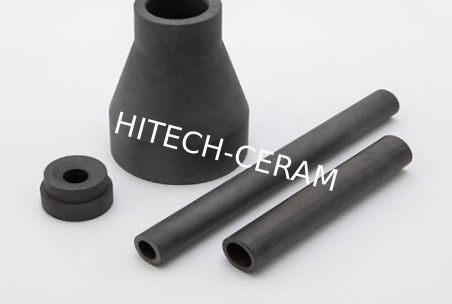

Si3N4 Nozzle Silicon Nitride Ceramics Oxidation Resistance High Toughness
Silicon nitride nozzles and covers feature oxidation resistance, high temperature strength and minimal sputter adhesion, significantly extending the service life of welding components.
Among the five silicon nitride production methods, Gas Pressure Sintering (GPS) is most commonly used for manufacturing Si3N4 components:
Gas pressure sintering of silicon nitride is performed at 1-10 MPa pressure and approximately 2000°C. The high nitrogen pressure prevents silicon nitride pyrolysis. This high-temperature sintering process enables Si3N4 grain growth with minimal sintering aids, producing high-toughness ceramics with long columnar grains and in-situ growth density exceeding 99%. The resulting material offers high toughness, strength, and wear resistance, allowing direct production of complex-shaped products that minimize production and processing costs.
Silicon Nitride Nozzle & Covers Specifications
| Size | Customized |
|---|---|
| Color | Black |
| Density | 3.22 g/cm³ |
| Flexural strength | 800 MPa |
| Fracture toughness | 6.5 MPa m^1/2 |
| Thermal stress parameters | 569 K |
Material Properties of Silicon Nitride
| Item | Unit | Si3N4 |
|---|---|---|
| Type | - | Gas pressure sintered |
| Density | g/cm³ | 3.22 |
| Color | - | Dark grey |
| Water Absorption | % | 0 |
| Young Modulus | Gpa | 290 |
| Vickers Hardness | Gpa | 18-20 |
| Compressive Strength | Mpa | 2200 |
| Flexural Strength | Mpa | 650 |
| Thermal Conductivity | W/m.K | 25 |
| Thermal Shock Resistance | Δ(°C) | 450-650 |
| Max. Working Temp. | °C | 1200 |
| Volume Resistivity | Ω*cm | > 10^14 |
| Dielectric Constant | - | 8.20 |
| Dielectric Strength | kV/mm | 16 |
* Tests conducted under room temperature environment
* Properties may vary depending on manufacturing method
Key Characteristics of Silicon Nitride Ceramics
- High strength across wide temperature ranges
- Exceptional fracture toughness
- High hardness rating
- Superior wear resistance
- Low thermal expansion with high thermal conductivity
- Excellent thermal shock resistance
- Strong resistance to chemical and oxidation effects
For more information or inquiries, please contact sales@industrial-ceramicparts.com.
Packaging Information
As a ceramic material, silicon nitride requires careful handling to prevent damage during storage and transportation. Our silicon nitride nozzles and covers are packaged with protective outer boxes and cushioning materials, with vacuum packing employed for certain components.
Miss. Scarlett.S
Deputy Head of Foreign Trade Department
- Email: scarlett.s@kegugroup.com
- Tel: 8616602956098
- WhatsApp: 8613390790728
-
