Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance

Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance
Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance

Large Image :  Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance

Product Details:
Contact Now

Silicon Carbide Ceramic Tubes & Fittings with 1380°C Long-term Service Temperature, Excellent Thermal Conductivity, and Superior Corrosion Resistance

Description
Highlight:

1380°C Long-term Service Temperature Silicon Carbide Ceramic Tubes

,

Excellent Thermal Conductivity Silicon Carbide Fittings

,

Superior Corrosion Resistance Reaction Bonded Silicon Carbide

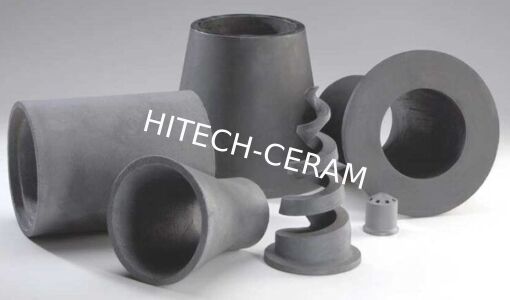

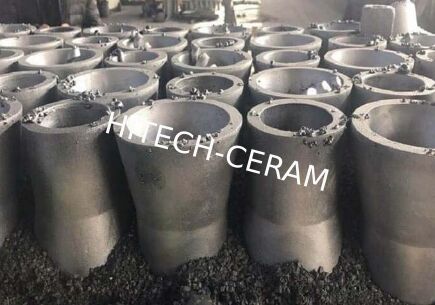

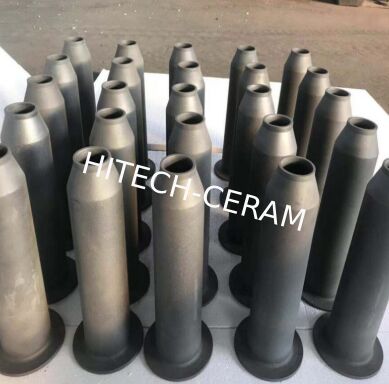

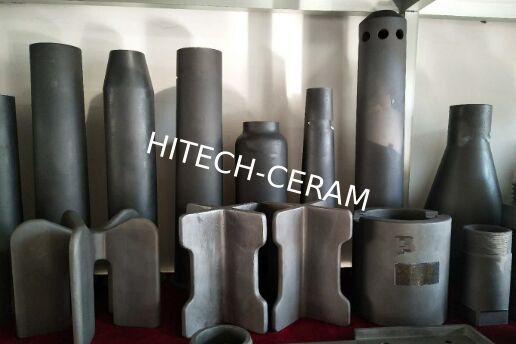

Silicon Carbide Ceramic Tubes & Fittings
Engineered for extreme high-temperature and corrosive environments in metallurgical, chemical, and energy sectors. Our silicon carbide ceramic tubes and fittings withstand extreme temperatures, corrosion, and wear, offering a superior alternative to traditional metals and refractory materials.
Core Material & Properties
Manufactured using high-purity reaction-bonded or pressureless sintered silicon carbide, our tubes and fittings provide exceptional performance characteristics:
  • Exceptional High-Temperature Performance: Operates long-term in oxidizing or reducing atmospheres at temperatures ≤1380°C
  • Excellent Thermal Conductivity: High thermal conductivity ensures efficient heat transfer and distribution
  • Outstanding Thermal Shock Resistance: Low thermal expansion coefficient and high strength provide strong resistance to thermal cycling
  • Superior Density & Corrosion Resistance: Near-zero porosity effectively blocks penetration of corrosive gases and melts
Key Performance Data
Item Unit Typical Value / Data
Long-term Service Temperature °C ≤ 1380
Density g/cm³ ≥ 3.02
Apparent Porosity % ≤ 0.1
Flexural Strength MPa 250 (20°C); 281 (1200°C)
Elastic Modulus GPa 332 (20°C); 300 (1200°C)
Thermal Conductivity (1200°C) W/m*K 45
Coefficient of Thermal Expansion K⁻¹ * 10⁻⁶ 4.5
Mohs Hardness - 9
Acid & Alkali Resistance - Excellent
Primary Application Scenarios
  • Sintering Furnace Tubes for Metallurgy: Ideal furnace tube material for sintering processes involving iron ore powder, ceramic powder, magnetic materials, with service life far exceeding traditional heat-resistant alloys
  • High-Temperature Corrosive Gas Transport in Chemical Industry: Used for conveying corrosive high-temperature gases or as heat exchanger tubing
  • Kiln Atmosphere Ducts: Serve as gas conduits or radiant tubes in kilns requiring precise atmosphere control
Application Value
  1. Significantly Extends Service Life: Life expectancy increased several-fold to tens of times compared to traditional materials, reducing downtime for replacements
  2. Enhances Product Quality: High purity and inertness ensure sintered products remain uncontaminated, while stable thermal properties guarantee process consistency
  3. Reduces Total Cost of Ownership: Higher initial investment offset by exceptionally long service life and minimal maintenance requirements, providing significant life-cycle cost advantages
Technical Support & Service
We provide complete solution packages including tube/fitting design, connection solutions, and installation guidance tailored to your furnace type, process atmosphere, and temperature profile requirements.

Tag:

Sintered Silicon Carbide,

Reaction Bonded SIC,

Silicon Carbide Ceramics
