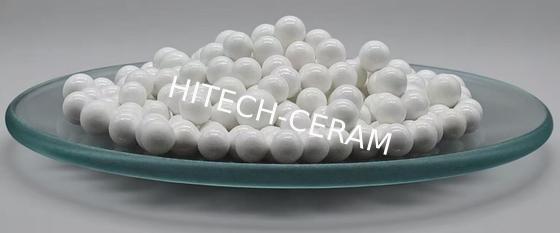

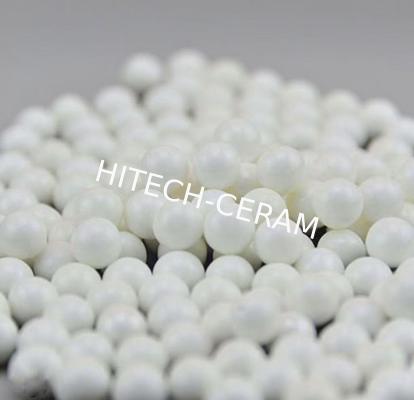

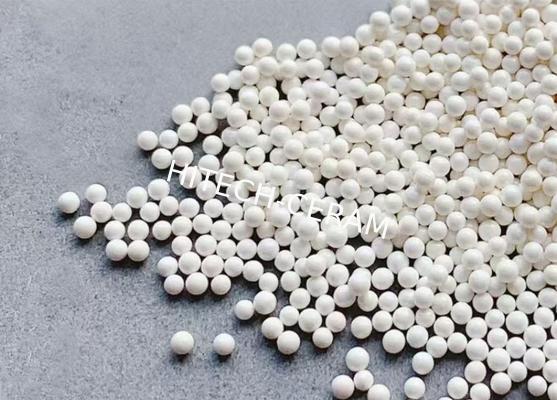

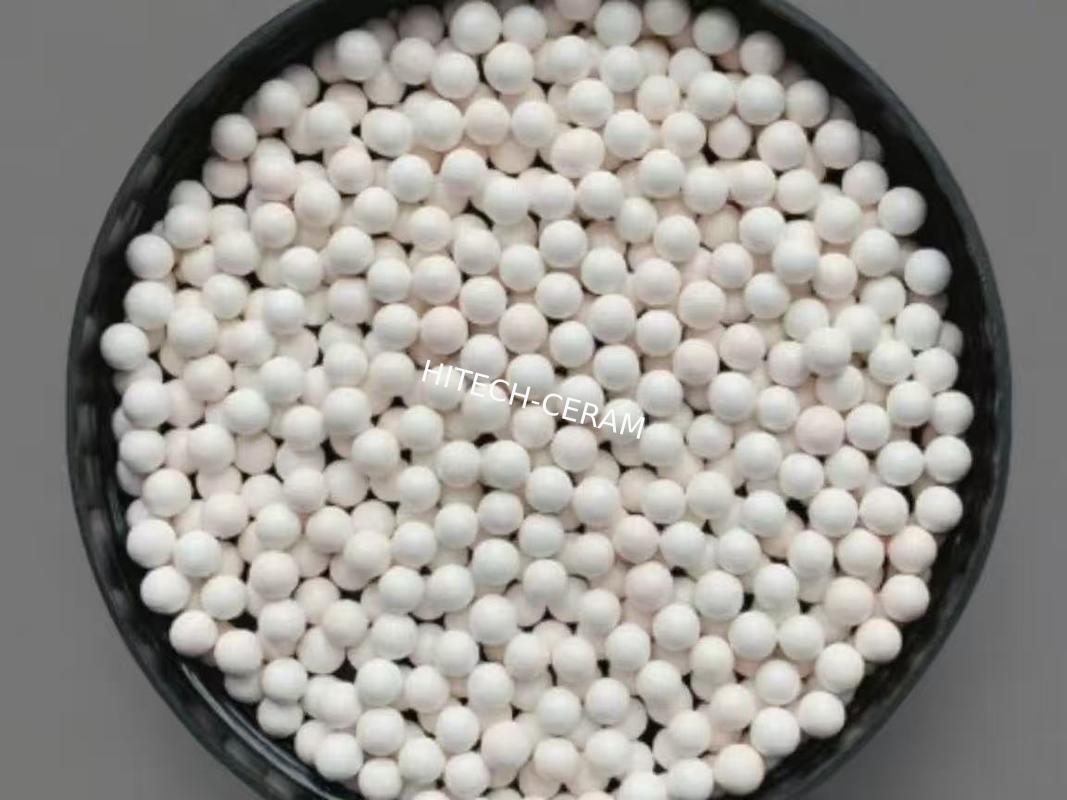

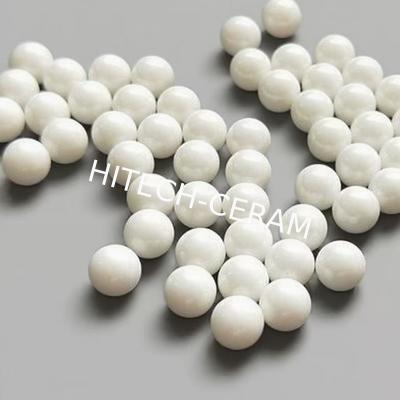

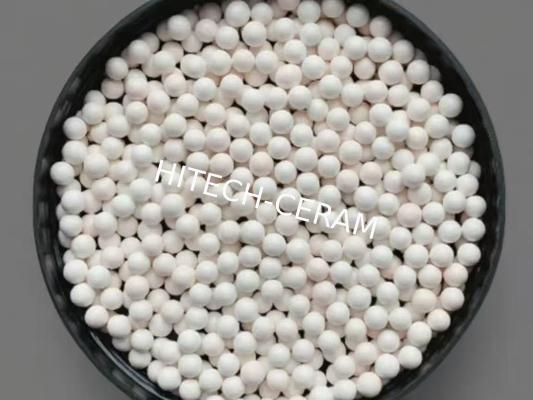

Zirconia Toughened Alumina Beads K-380 | High-Density Grinding Media

Product Description

Our K-380 Zirconia Toughened Alumina (ZTA) Beads are high-performance composite ceramic grinding media engineered for high-speed and high-energy milling processes, such as agitator and sand mills. They deliver exceptional wear resistance and grinding efficiency for a wide range of hard-to-grind materials.

Key Features & Benefits

• Superior Hardness & Wear Resistance: With a Vickers Hardness of 1350 kg/mm², the K-380 beads significantly reduce media consumption and prevent product contamination, ensuring a longer service life and lower operational costs.

• High Density & Impact Force: A density of ≥3.70 g/cm³ provides greater impact energy per bead, leading to faster particle size reduction and improved milling efficiency, especially for viscous slurries.

• Precision Engineering & Structural Integrity: Featuring high sphericity (>95%) and a uniform, void-free internal crystalline structure, these beads guarantee consistent grinding results, minimize slurry viscosity increase, and offer exceptional fracture toughness.

• Proven Chemical Inertness: Highly resistant to acids and alkalis, they are ideal for demanding chemical environments in industries like paints, inks, and ceramics, ensuring product purity.

Technical Specifications

Primary Industrial Applications

• Mineral Processing: Ideal for grinding metallic ores (copper, gold, PGM, zinc) and non-metallic minerals (graphite, calcium carbonate, kaolin).

• Paints, Inks & Dyes: Achieves fine particle sizes and brilliant color development.

• Advanced Ceramics & Electronic Materials: Used in the preparation of glazes, frits, structural ceramics, and electronic ceramics.

Packaging & Shipping

• Packaging: Available in woven bags or ton bags with net weights of 25 kg, 500 kg, or 1000 kg.

• Shipping: Approximately 20-24 metric tons can be loaded into a 20-foot container.
