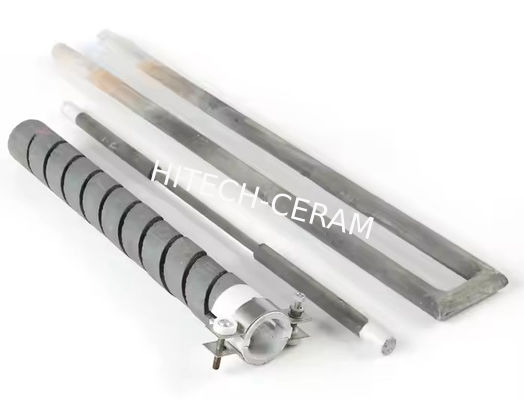

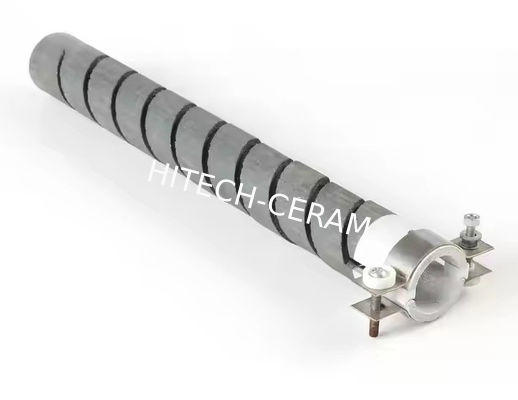

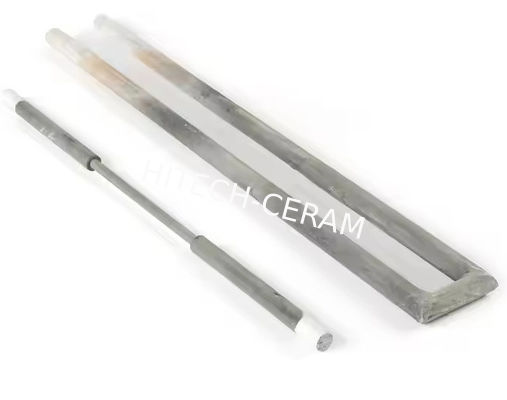

Industrial Grade Silicon Carbide Heating Element Rods with High-Temp to 1600°C and Customized Size
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Silicon Carbide (SiC) Heating Element Rods | High-Temp to 1600°C | Industrial Grade Product Overview Silicon Carbide (SiC) Heating Elements are advanced, non-metallic electric heaters renowned for their exceptional performance in high-temperature environments. Manufactured primarily from high-purity ...
Product Details
Highlight:
customized heating elements
,customized sic heater elements
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description
Silicon Carbide (SiC) Heating Element Rods | High-Temp to 1600°C | Industrial Grade
Product Overview
Silicon Carbide (SiC) Heating Elements are advanced, non-metallic electric heaters renowned for their exceptional performance in high-temperature environments. Manufactured primarily from high-purity Silicon Carbide, these heater rods offer a unique combination of low thermal expansion, minimal deformation, and outstanding chemical stability. This translates to reliable heat, extended service life, and low maintenance in demanding applications. They operate effectively in air atmospheres from 600°C to 1600°C without the need for protective gas, making them a versatile and cost-efficient heating solution.
Ideal for a wide range of industrial and scientific processes, they are extensively used in sectors such as metallurgy, ceramics, glass manufacturing, machinery, analytical testing, semiconductor processing, and R&D laboratories.
Key Features & Benefits
- Withstand Extreme Temperatures: Reliable operation up to 1600°C (2912°F)
- Exceptional Longevity & Stability: Superior oxidation and corrosion resistance ensure long service life and consistent performance
- High Mechanical Strength: Excellent thermal shock resistance and cold crushing strength prevent cracking and deformation under stress
- Energy Efficient: High thermal conductivity provides rapid heat-up and efficient energy transfer
- Easy Installation & Maintenance: Simple integration into existing furnace systems with minimal upkeep
Technical Specifications
| Parameter | Value / Rating |
|---|---|
| SiC Content | > 75% |
| Si₃N₄ Content | > 22% |
| Fe₂O₃ Content | < 0.5% |
| Bulk Density | 2.6 - 2.7 g/cm³ |
| Apparent Porosity | < 16% |
| Cold Crushing Strength | 150 MPa |
| Rupture Strength (at 1200°C) | > 50 MPa |
| Thermal Conductivity (at 800°C) | > 18 W/m*K |
| Thermal Conductivity (at 1200°C) | > 14 W/m*K |
| Thermal Expansion Coefficient | < 4.7 x 10⁻⁶ /°C |
All standard sizes are available. We specialize in customizing dimensions and specifications to meet your unique furnace and application requirements.
Product Images

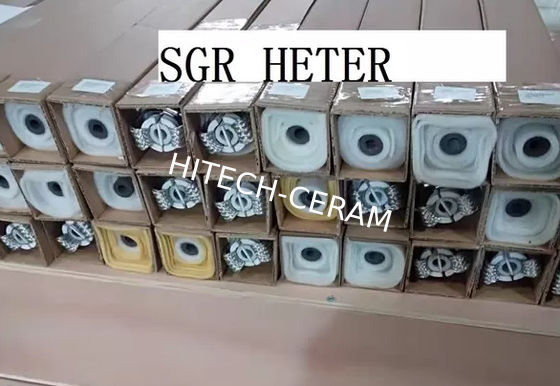

Packaging & Shipping
