1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Large Image :  1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Description
Material: SiC Composition:SiC: ＞98%
Color: Black Density: ≥3.05g/cm3
Max. Service Temp: 1650℃ Flexural Strength: 380MPa
Composition:SiC: ＞85% Density: ≥3.0g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Size: Customized Density: 2.5～2.6 G/cm3
Heat Conduction: 23.26 W/(m·℃) Resistivity: 1000～2000 Ω·mm2/m
Tensile Strength: 39.2～49 MPa Flexural Strength: 70～90 MPa
Density: 2.5~2.6g/cm³ Max. Service Temp.: 1500℃
Flexural Strength: 70-90 MPa Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

1400c silicon carbide rod

,

1400c silicon carbide heating rod

,

furnace silicon carbide rod

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln

Products Description

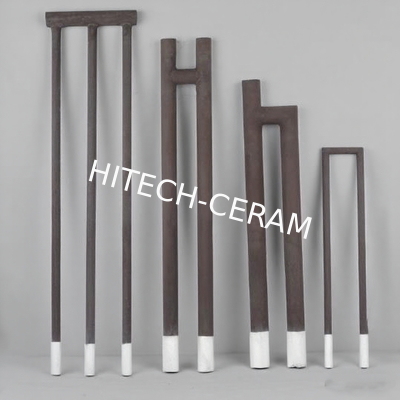

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 0
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 1
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 2
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 3
Silicon carbide heating element is a non-metallic high-temperature heating element. It is made of high-quality green silicon carbide as the main material, made into blanks, siliconized at high temperature, and recrystallized. It is the most popular economical heating element, capable of operating in hot and harsh environments.
Specification
Outer Diameter
(OD, mm)
Hot zone
(HZ, mm)
Cold zone
(CZ, mm)
Overall length
(OL, mm)
Range of resistance
(ohms)
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0
Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.
Details Images

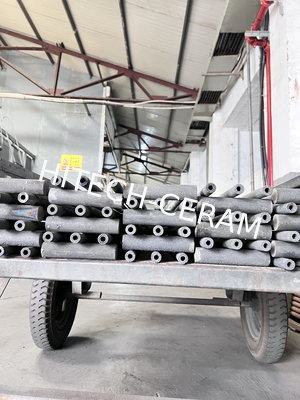

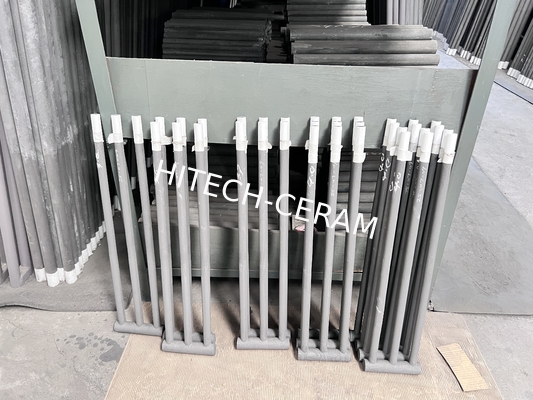

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 4
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 5
Types

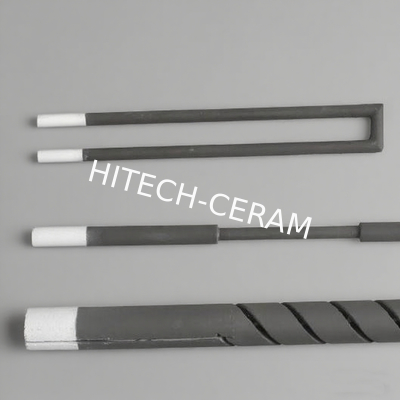

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 6
1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 7
Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)


Quality control:

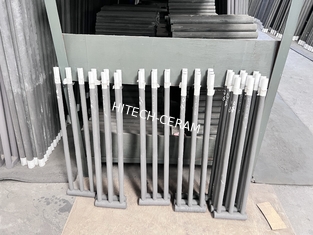

1400c U W Rod Shape Type Silicon Carbide Rod Heating Element For Furnace Or Kiln 8


Feature:

 High Temperature Oxidation Resistance: High
Type: U Shape (U Type) Working Lifetime: 10000h
Usage: Electrical Furnace Length: As Requested
Product Type: Electric Heating Elements Max Max Temperature: 1400c
Corrosion Resistance: Excellent
Highlight:

Furnace Silicon Carbide Rod Heating Element

,

Carbide Rod Heating Element For Kiln

Tag:

Silicon Carbide Heating Elements,

Sic Heating Elements,

Sic Heater Elements
