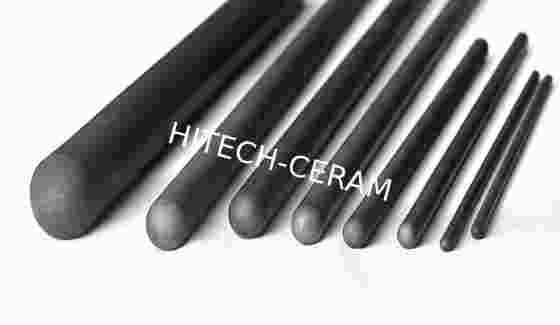

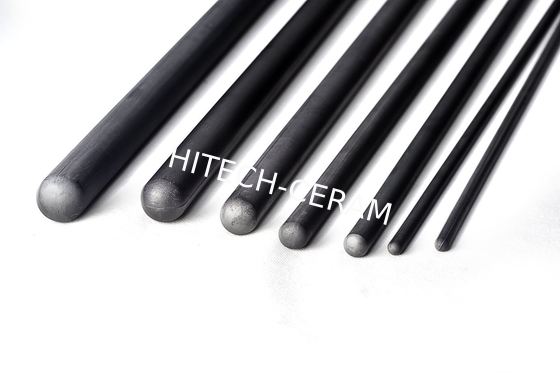

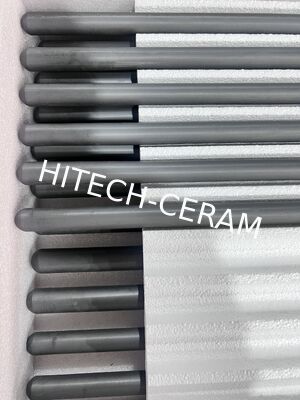

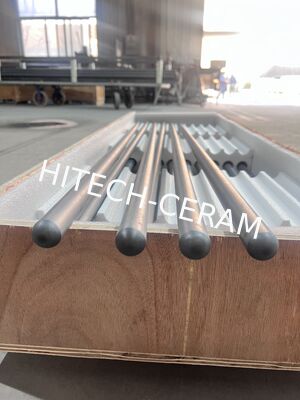

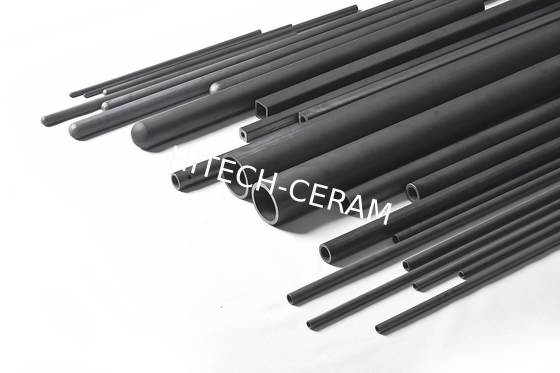

Pressureless Sintered SiC Thermocouple Protection Tube with 1650°C Max Service Temp 380MPa Flexural Strength and 98% SiC Composition

Our pressureless sintered silicon carbide (SSiC) thermocouple protection tubes are engineered to provide reliable and durable temperature measurement in the most demanding industrial environments. Manufactured from high-purity SiC, they offer a superior combination of extreme temperature resistance, exceptional corrosion resistance, and outstanding thermal shock performance. These tubes effectively shield thermocouples from harsh conditions, ensuring measurement accuracy and significantly extending service life compared to traditional metal or ceramic alternatives.

• Withstand Extreme Temperatures
  • 1650 °C in air & 1900°C in inert atmospheres, far exceeding the limits of stainless steel (600-800°C).
  • Maintains high mechanical strength, with a flexural strength of 380 MPa even at elevated temperatures.
• Superior Corrosion & Erosion Resistance
  • Excellent resistance to strong acids (HCl, HNO₃, H₂SO₄), molten metals (Zn, Sn, Pb), and corrosive gases.
  • Oxidation resistance is 7 times stronger than alumina ceramics at 1300°C.
  • Ideal for harsh environments with sulfur, tar, and high-velocity particulates.
• Exceptional Thermal Shock & Wear Resistance
  • Low thermal expansion coefficient (4.85 * 10⁻⁶/°C) minimizes cracking risks during rapid temperature changes.
  • Extreme hardness (Vickers Hardness 2350 kg/mm²) ensures long-lasting performance in abrasive conditions.
• Optimized Thermal Response
  • High thermal conductivity (160 W/(m *K)) ensures rapid heat transfer, leading to faster response times and more accurate temperature readings.

• Maximum Operating Temperature: 1,650°C (in air)
• Maximum Standard Length: Up to 3 meters
• Maximum Outer Diameter: Up to 190 mm
• Customization: We specialize in producing tubes to your exact specifications. Contact us with your requirements for length, diameter, and wall thickness.

• Metallurgy: Temperature measurement in molten steel, iron, copper, and aluminum.
• Chemical & Energy: High-temperature gas turbines, waste incinerators, and sulfur recovery units.
• Ceramics & Glass: Internal temperature monitoring in kilns and glass melting furnaces.
• Semiconductors & New Energy: High-temperature reactors for lithium-ion battery and photovoltaic manufacturing.
