High Temperature Resistant Silicon Nitride Siphon Tube with Exceptional Thermal Shock Resistance and Long Service Life

High Temperature Resistant Silicon Nitride Siphon Tube with Exceptional Thermal Shock Resistance and Long Service Life
High Temperature Resistant Silicon Nitride Siphon Tube with Exceptional Thermal Shock Resistance and Long Service Life

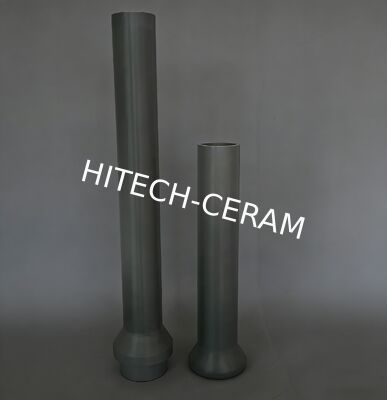

Large Image :  High Temperature Resistant Silicon Nitride Siphon Tube with Exceptional Thermal Shock Resistance and Long Service Life

Product Details:
Contact Now

High Temperature Resistant Silicon Nitride Siphon Tube with Exceptional Thermal Shock Resistance and Long Service Life

Description
Density: 3.20 - 3.26 G/cm³ Apparent Porosity: 0 - 0.1%
Elastic Modulus: 300 - 320 GPa Compression Strength: > 1500 MPa
Vickers Hardness (HV0.5): 15 - 16 GPa Fracture Toughness: > 8.0 MPa*m¹/²
Bending Strength: > 700 MPa Linear Expansion Coefficient: 3.1 - 3.3 ×10⁻⁶/°C
Thermal Conductivity: 20 - 25 W/(m*K)
Highlight:

High Temperature Resistance Silicon Nitride Siphon Tube

,

Exceptional Thermal Shock Resistance Si3N4 Siphon Tube

,

Long Service Life Ceramic Siphon Tube

Durable Silicon Nitride Siphon Tubes for Long-Lasting Performance
In modern industrial applications where efficiency, durability, and energy savings are paramount, material selection directly impacts equipment performance and production costs. Silicon nitride ceramic, an advanced material with exceptional comprehensive properties, delivers irreplaceable value across critical sectors including coal chemical engineering, new energy, and precision manufacturing. Its outstanding wear resistance, high-temperature resistance, high strength, and excellent chemical stability make it the ideal choice for demanding applications.
The Silicon Nitride Siphon Tube exemplifies this exceptional performance. Manufactured using advanced isostatic pressing and gas pressure sintering processes, this product achieves extremely high density and uniformity. In harsh high-temperature, high-pressure environments, it maintains superior mechanical strength over extended periods, eliminating the risks of breakage and gas leakage common with traditional materials. With an average service life over ten times longer than conventional siphon tubes, it significantly reduces maintenance and replacement costs in aluminum casting while dramatically improving casting quality and production stability.
Core Performance Advantages

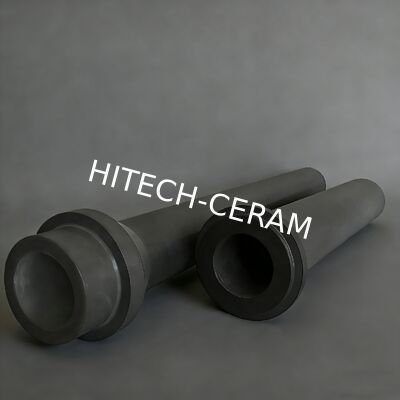

High Temperature Resistant Silicon Nitride Siphon Tube with Exceptional Thermal Shock Resistance and Long Service Life 0
The exceptional performance of silicon nitride siphon tubes stems from the material's superior inherent properties:
  • Exceptional Thermal Shock Resistance: Withstands drastic temperature changes without cracking
  • Very Low Coefficient of Thermal Expansion (3.1-3.3×10⁻⁶/°C): Ensures highly stable dimensions at elevated temperatures
  • Excellent Corrosion Resistance: Not wetted or corroded by molten metals such as aluminum and zinc; resistant to slag buildup for easy cleaning and maintenance
  • Outstanding Mechanical Properties: Combines high hardness (15-16 GPa), high bending strength (>700 MPa), and high fracture toughness (>8.0 MPa*m¹/²) for robust durability
Authoritative Performance Parameters
Our gas pressure sintered silicon nitride material undergoes rigorous testing with leading comprehensive performance indicators:
Test Item Value Range Unit
Density 3.20 - 3.26 g/cm³
Apparent Porosity 0 - 0.1 %
Elastic Modulus 300 - 320 GPa
Compression Strength > 1500 MPa
Vickers Hardness (HV0.5) 15 - 16 GPa
Fracture Toughness > 8.0 MPa*m¹/²
Bending Strength > 700 MPa
Linear Expansion Coefficient 3.1 - 3.3 ×10⁻⁶/°C
Thermal Conductivity 20 - 25 W/(m*K)
Product Specifications
To meet various working condition requirements, our silicon nitride siphon tubes offer flexible size options:
Size Max. Diameter Wall Thickness Max. Length
Specification (Unit: mm) 430 10 - 15 1350
Why Choose Our Silicon Nitride Siphon Tubes?
  • Tenfold Lifespan, Drastically Lower Costs: Extremely long service life directly reduces your per-unit production cost
  • Enhance Quality, Reduce Waste: Exceptional stability and corrosion resistance ensure continuous production of high-quality castings
  • Robust and Reliable, Safe Operation: High mechanical strength and toughness prevent unexpected breakage and safety hazards
  • Easy Maintenance, Improved Efficiency: Slag-resistant characteristic reduces downtime for cleaning, boosting overall operational efficiency
Silicon nitride ceramic represents not just a material upgrade, but a strategic investment for industrial future. Choosing our silicon nitride siphon tubes means opting for higher reliability, lower total cost of ownership, and more competitive production solutions.

Contact us today for dedicated technical consultation and product solutions. Let's advance together toward a new era of efficient and durable production.

Tag:

Silicon Nitride Riser Tube,

Si3N4 Ceramics,

Silicon Nitride Tube
