Description

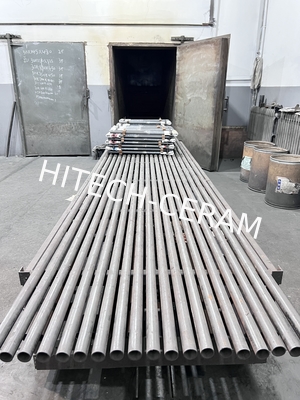

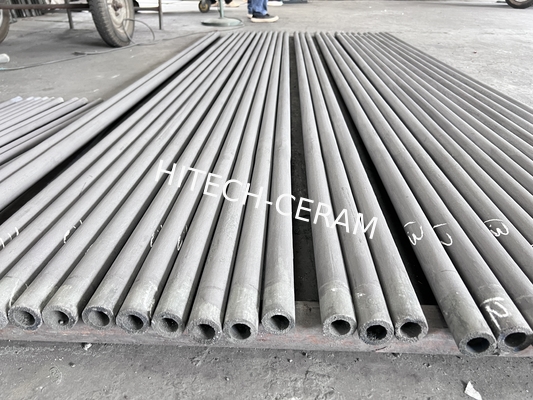

ED Series Equal Diameter Silicon Carbide Rods represent the next generation of high-performance non-metallic heating elements. Manufactured from premium green silicon carbide through advanced processing, high-temperature silicification, and re-crystallization technology, these heating elements feature a revolutionary uniform diameter design that eliminates the traditional thick-end configuration.

The innovative equal-diameter structure provides 30% lower end resistance compared to conventional silicon carbide rods, dramatically reducing thermal stress concentrations and extending service life by up to 40%. Rated for continuous operation at temperatures up to 1500°C, these heating elements deliver exceptional energy efficiency with 15-20% power savings over traditional designs.

Key Features & Benefits

• Uniform Diameter Design: Eliminates resistance concentration points

• Enhanced Durability: 40% longer service life than conventional SiC rods

• Superior Energy Efficiency: 15-20% reduced power consumption

• High-Temperature Performance: Reliable operation up to 1450°C

• Reduced Thermal Stress: Even heat distribution minimizes failure points

• Quick Thermal Response: Optimized heat transfer characteristics

Technical Specifications

• Maximum Operating Temperature: 1500°C

• Diameter Range: Standard and custom sizes available

• Power Savings: 15-20% compared to traditional SiC rods

• End Resistance: 30% lower than conventional designs

• Life Expectancy: 40% longer operational lifespan

These advanced heating elements are specifically engineered for industrial furnaces requiring precise temperature control, consistent performance, and reduced operating costs. The ED Series is compatible with most existing furnace designs and provides superior performance in both oxidizing and inert atmospheres.

Physical properties of SiC Heating Elements

Temperature-Dependent Properties of SiC Heating Elements

Temperature and Surface Load Ratings for SiC Heating Elements by Atmosphere
