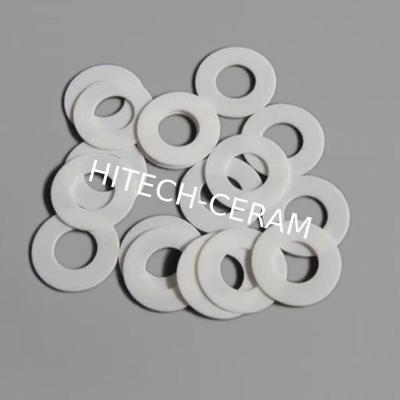

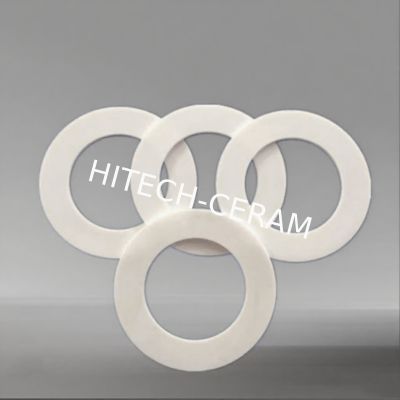

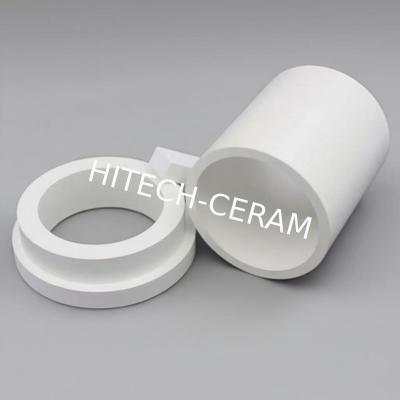

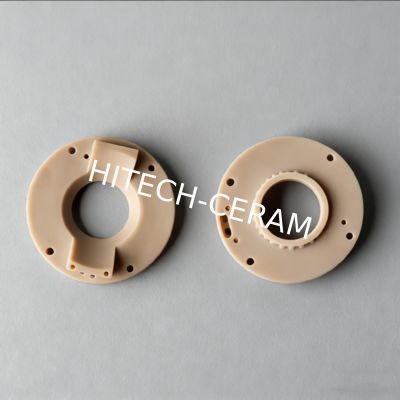

Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications

Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications
Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications

Large Image :  Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications

Description
Feature: Boron Nitride Crucibl Composition: BN>99%
Attribute: Pyrolytic Boron Nitride Crucible Advantage: Stable
Corrosion Resistance: Excellent Compressive Strength: 200-300 MPa
Maximum Operating Temperature: 1000-1800°C Working Temperature: About 2200 Celsius Degree
Chemical Inertness: High Color: White
Shape: Irregular Thermal Conductivity: 30-40 W/mK
Volume Resistivity: 1014-1015 Ω·cm Usage: Gas Atomization
Material: Boron Nitride
Highlight:

BN99 Boron Nitride Ring

,

Hot Pressed Boron Nitride Ring

,

BN99 Aluminum Nitride Plate

High-Performance Hot-Pressed Boron Nitride (BN99) Rings & Components for Semiconductor Applications
We specialize in manufacturing precision hot-pressed boron nitride rings and components using advanced sintering technology. Our product line includes both pure BN99 (99% purity) and custom composite formulations with silicon carbide, calcium borate, aluminum nitride, and zirconia, engineered to meet specific thermal, mechanical, and chemical requirements in demanding semiconductor and industrial environments.
Hot-Pressed BN99 Purity Boron Nitride Rings with 650mm Diameter for Semiconductor Applications 0
Material Properties & Technical Advantages
  • Ultra-High Purity: BN99 grade ensures minimal contamination in sensitive processes
  • Exceptional Thermal Management: High thermal conductivity with excellent electrical insulation
  • Superior Chemical Resistance: Withstands corrosive gases and molten metals
  • Low Porosity Structure: Hot-pressed manufacturing ensures dense, reliable performance
  • Thermal Shock Resistance: Maintains integrity under rapid temperature fluctuations
  • Machining Capability: Can be precision-formed into complex geometries up to 650mm diameter
Product Specifications
Parameter BN99 Pure Boron Nitride ZSBN Zirconia Composite
Purity ≥ 99% Custom formulations
Maximum Diameter 650mm 650mm
Density 1.9-2.1 g/cm³ 2.8-3.2 g/cm³
Thermal Conductivity 25-40 W/m*K 15-25 W/m*K
Dielectric Strength 30-40 kV/mm 20-30 kV/mm
Key Applications in Semiconductor & Industrial Equipment
Semiconductor Manufacturing Components
  • Gas distribution plates (showerheads)
  • Plasma etch components
  • Wafer processing fixtures
  • Semiconductor heater insulators
Thermal Management Systems
  • Heat spreaders and insulators
  • Pedestal heaters
  • Thermal barrier plates
  • High-temperature furnace components
Specialized Industrial Components
  • Crucibles for metal evaporation
  • RF microwave windows
  • Chemical processing nozzles
  • High-temperature research applications
Custom Engineering Solutions
Our technical team provides comprehensive support for:
  • Custom composite development for specific application requirements
  • Net-shape sintering to minimize machining and reduce costs
  • Precision machining of complex geometries
  • Technical consultation for material selection and design optimization
Need boron nitride components for your semiconductor equipment or high-temperature process? Contact our engineering team to discuss custom solutions tailored to your specific operational requirements and performance criteria.
