Sic Heat Exchanger Block Hole with Vertical And Horizontal Hole

Large Image : Sic Heat Exchanger Block Hole with Vertical And Horizontal Hole

Product Details:

Place of Origin:	China
Brand Name:	KeGu
Model Number:	Customizable

Payment & Shipping Terms:

Price:	200-500 yuan/kg
Packaging Details:	Strong wooden box for Global shipping
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2,000 pcs/month

Contact Now

Sic Heat Exchanger Block Hole with Vertical And Horizontal Hole

Description

Material:	SiC	Composition:SiC:	>98%
Color:	Black	Density:	>3.05g/cm3
Max. Service Temp:	1650°C	Flexural Strength:	380MPa
Highlight:	Sic Heat Exchanger Block Hole , Silicon Carbide Heat Exchanger Block Hole , Horizontal Hole Sic Heat Exchanger Block

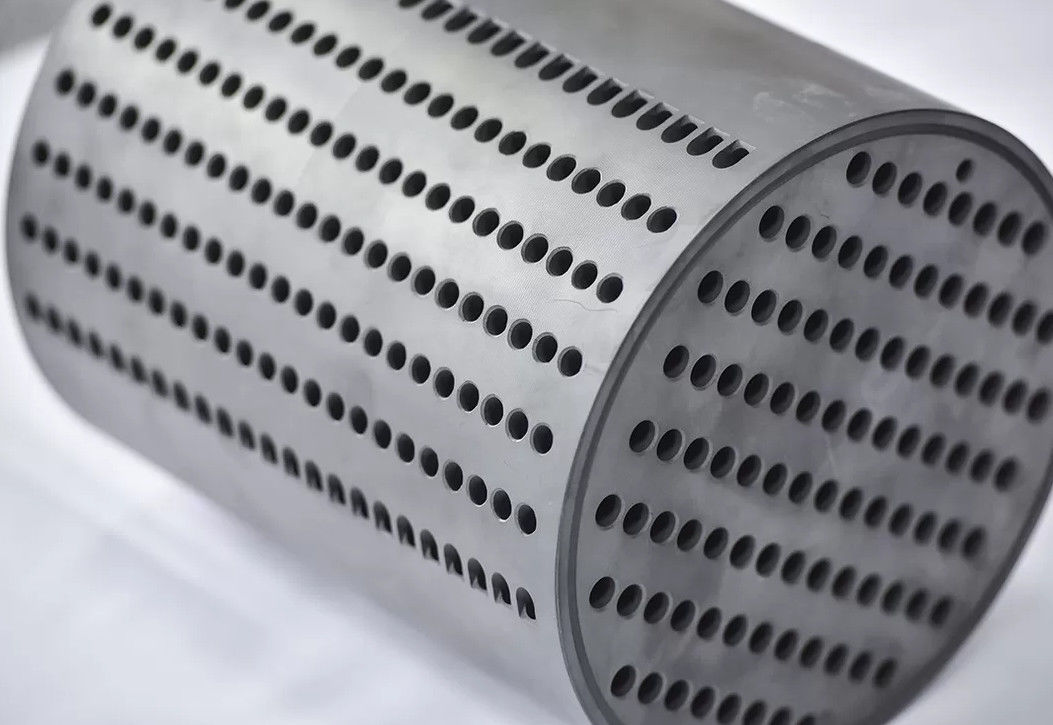

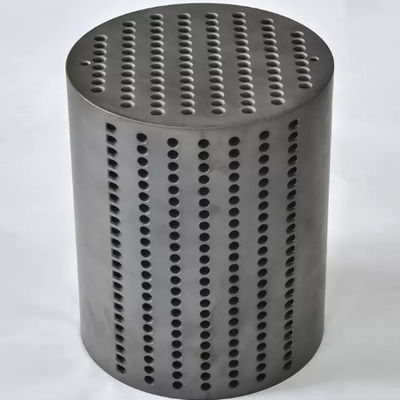

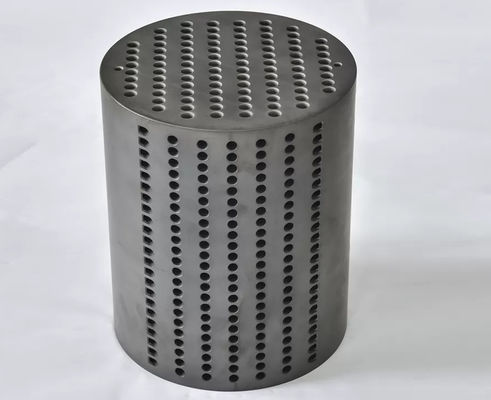

Sic Heat Exchanger Block Hole, The Wall Of The Vertical Hole And Horizontal Hole To Achieve Two Media Heat Transfer

Description:

Silicon carbide heat exchanger block holes are made by direct isostatic pressing, pressure-free sintering, through the wall of the vertical hole and horizontal hole to achieve two media heat transfer. Aperture size can be designed according to the design requirements, the minimum aperture up to 6mm, the most hole wall thickness up to 2.5mm.

Typical applications:

1. Block hole heat exchanger under strong acid and strong alkali corrosion.

2. Application industries: fine chemical industry, pharmaceutical industry, environmental protection engineering.

Features and advantages:

1. Silicon carbide heat exchanger block hole size accuracy ±1.0mm, thickness ±0.1mm, can also be finished according to customer requirements, higher accuracy.

2. Silicon carbide heat exchanger blocks have excellent heat transfer efficiency with a thermal conductivity of up to 140W/m•K.

3. Silicon carbide heat exchange block hole has a comprehensive corrosion resistance, can be used in sulfuric acid, hydrochloric acid, sulfuric acid, hydrofluoric acid and a variety of mixed acid, life is much longer than graphite and metal materials.

4. SiC Heat Exchanger Holes are designed with sealing waterlines and are pressure-sealed with a corrosion resistant material.

5. Silicon carbide heat exchange block holes are factory tested for strict dimensions, water pressure resistance (40BAR), air pressure resistance (15BAR) and surface fluorescence penetration.

Specifications:

1.At present, the maximum size of the outer diameter can reach 300mm, and the height can reach 300mm.

2.By the end of 2021, the maximum outer diameter can reach 600mm, and the height can reach 400mm.
