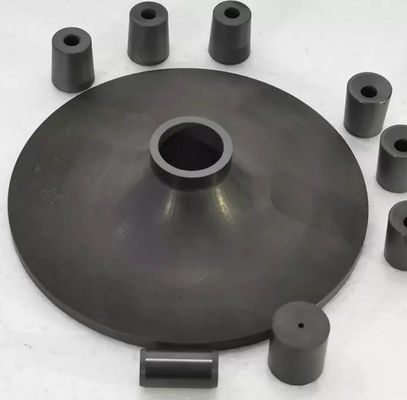

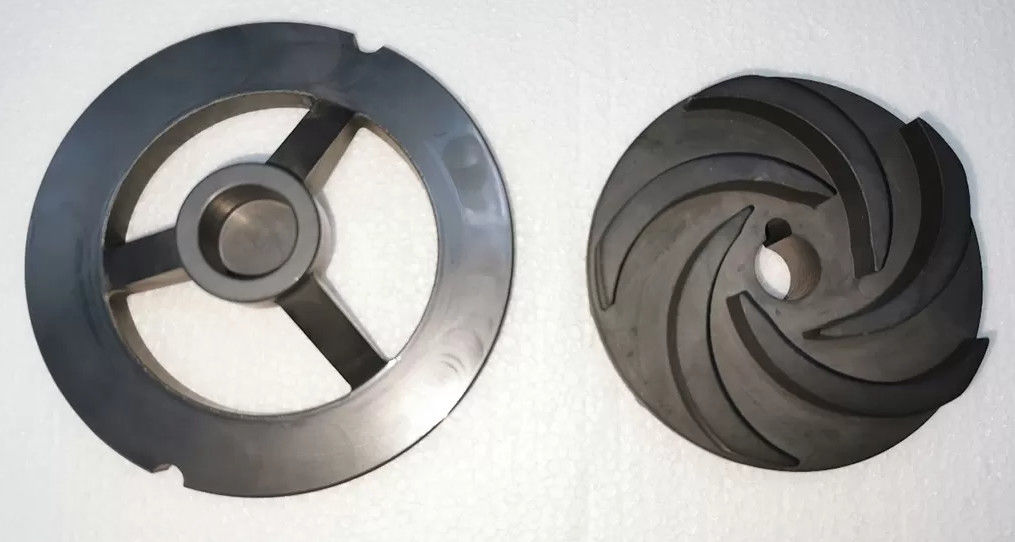

• The centrifugal atomizing disc and nozzle for spray granulation of silicon carbide slurry can also be used for spray granulation of other ceramic slurries

• Application industries: technical ceramics, lithium battery materials.


Features and advantages:

• The maximum diameter of the silicon carbide slurry atomization disc can achieve OD300mm, with an accuracy of 0.02mm.

• The silicon carbide slurry nozzle can be surface polished, and the surface roughness Ra is less than 0.2.

• The service life of silicon carbide ceramic nozzles can reach more than one year, which is more than 2 times longer than that of alloy nozzles (varies depending on the medium).

• Silicon carbide ceramic has a density of 3.15g/cm3, a Vickers hardness of more than 23GPa, high wear resistance and no introduction of metal ions.


specifications:

• Customize according to customer drawings;

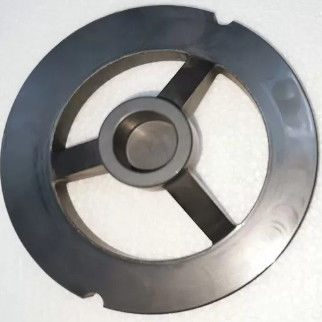

Silicon carbide slurry atomization disc:
