Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace

Large Image : Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace

Product Details:

Place of Origin:	China
Brand Name:	KEGU
Model Number:	Customizable

Payment & Shipping Terms:

Price:	200-500 yuan/kg
Packaging Details:	Strong wooden box for Global shipping
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2,000 pcs/month

Contact Now

Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace

Description

Material:	SiC	Composition:SiC:	＞98%
Color:	Black	Density:	≥3.05g/cm3
Max. Service Temp:	1650℃	Flexural Strength:	380MPa
Composition:SiC:	＞85%	Density:	≥3.0g/cm3
Max. Service Temp:	1380℃	Flexural Strength:	250MPa
Size:	Customized	Density:	2.5～2.6 G/cm3
Heat Conduction:	23.26 W/(m·℃)	Resistivity:	1000～2000 Ω·mm2/m
Tensile Strength:	39.2～49 MPa	Flexural Strength:	70～90 MPa
Density:	2.5~2.6g/cm³	Max. Service Temp.:	1500℃
Flexural Strength:	70-90 MPa	Linear Thermal Expansion Coefficient (20-1500℃):	5×10⁻⁶/℃
Electrical Resistivity:	1000~2000Ω·mm²/m
Highlight:	industrial sic heater elements , industrial sic heating elements , furnace sic heater elements

Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace

Products Description

1500°C ED Type SIC Heating Elements is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It can usually make use for furnance which temperature from 600C-1600ºC. It is widely used in various electric heating element of glass,chemical, electronic material and so on.
According to the market demand,we produce different types of silicon carbide heating elements.

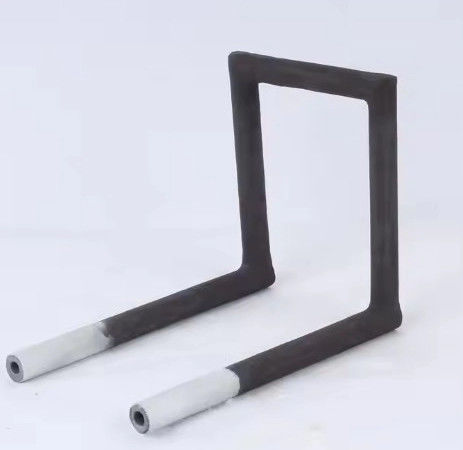

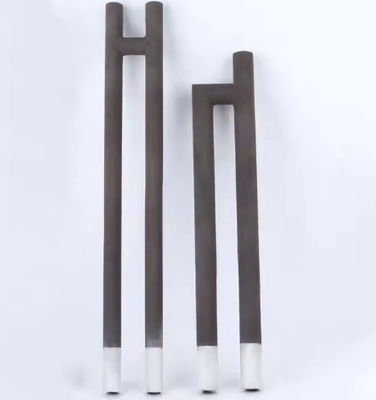

(diameter: 8mm to 60mm,length:300mm to 450mm), while direct at the glass heating with electricity,we have such products as equal diameter ones,groove-shaped,u-shaped,gun-shaped and so on.

Features of SIC Heater Compare the other heating element
1	Max working temperature 1600°C
2	raise the temperature faster and stable longer working life
3	free of noise and no air pollution
4	easy to install and maintenance
