Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod

Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod
Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod

Large Image :  Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod

Description
Material: SiC Composition:SiC: ＞98%
Color: Black Density: ≥3.05g/cm3
Max. Service Temp: 1650℃ Flexural Strength: 380MPa
Composition:SiC: ＞85% Density: ≥3.0g/cm3
Max. Service Temp: 1380℃ Flexural Strength: 250MPa
Size: Customized Density: 2.5～2.6 G/cm3
Heat Conduction: 23.26 W/(m·℃) Resistivity: 1000～2000 Ω·mm2/m
Tensile Strength: 39.2～49 MPa Flexural Strength: 70～90 MPa
Density: 2.5~2.6g/cm³ Max. Service Temp.: 1500℃
Flexural Strength: 70-90 MPa Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

industrial heating elements

,

industrial sic heater elements

,

ed type heating elements

Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod

Overview

Product Description
Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod 0
Outer Diameter (mm)
Hot zone ( mm)
Cold zone (mm)
Overall length(mm)
Range of resistance
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0

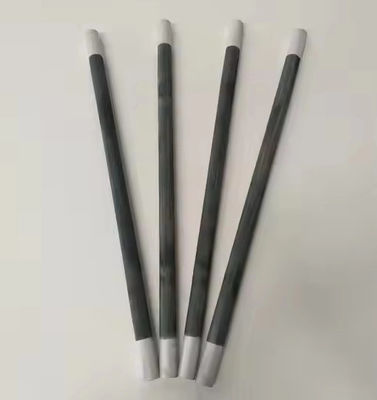

Photo Shows
Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod 1


Features of silicon carbide rod

1 withstands as high as 1500°C
2 high strength and excellent shock resistance
3 heat source is free of noise and air pollution
4 anti-oxidization, anti- corrosion
5 easy to installation and maintenance


How to order ? Pls provide this informations:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

Application

Thermoforming & Vacuum Forming Machines
PVC Pipe Belling / Socketing Machines
Hot Stamping Machines
Heat Therapy Equipment
Shrink Packaging

1.What's your advantage to other suppliers?


We have our own factory which has more than 20years experience in producing and exporting silicon carbide heaters,

we also have good business relations with some other factories.

Our goods’quality is high and price is reasonable and delivery is fast.


2.Can you produce as our drawing?


Yes,we have skilled technical engineer who can make products according to your photos or drawings.


3.After-Sale service:


1) 24 hours service for customers.

2) quality issue, we accept reworking if quality is not reach your requirements.

3) sample available for free


Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod 2



Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod 3


Quality control:

Silicon Carbide Sic Heating Element Ed Type Industrial Nitrogen-Resistant Silicon Carbide Sic Heating Element Rod 4
