Reaction-bonded silicon carbide setter plate with 1380℃ max service temp, 250MPa flexural strength, and ≥3.0g/cm3 density for kiln trolley support
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Reaction-bonded silicon carbide fish-shaped refractory setter plate for kiln trolley support This reaction-bonded silicon carbide (RSiC) fish-shaped refractory setter plate for kiln trolley support is the ideal choice for high-temperature firing processes. Its unique fish-shaped design not only ...
Product Details
Highlight:
reaction bonded silicon carbide setter plate
,fish-shaped refractory kiln plate
,silicon carbide trolley support plate
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
≥3.0g/cm3
Max. Service Temp:
1380℃
Flexural Strength:
250MPa
Product Description

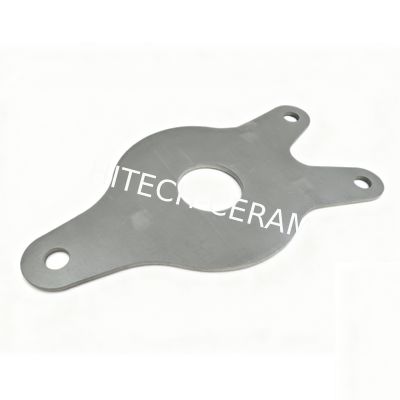

Reaction-bonded silicon carbide fish-shaped refractory setter plate for kiln trolley support
This reaction-bonded silicon carbide (RSiC) fish-shaped refractory setter plate for kiln trolley support is the ideal choice for high-temperature firing processes. Its unique fish-shaped design not only enhances structural strength but also optimizes heat distribution, ensuring uniform temperature during the firing process. Manufactured using advanced reaction-bonding technology, this setter plate offers exceptional high-temperature resistance, thermal shock resistance, and corrosion resistance, enabling long-term stable operation under extreme working conditions. Suitable for various kiln trolley systems, it effectively supports and carries ceramic, refractory, and other products, improving firing efficiency and product quality.
Typical Applications
- Ceramic Firing Field
- Refractory Material Production
- Electronic and Functional Ceramics Processing
- Other High-Temperature Process Scenarios
Key Features
- Unique Fish-Shaped Design
- Advanced Manufacturing Process
- Excellent High-Temperature Resistance
- Outstanding Thermal Shock Resistance
- Good Corrosion Resistance
- High-Precision Dimensions and Surface Quality
- Strong Adaptability
Physical Properties of Reaction Sintered Silicon Carbide Ceramics
| Physical properties | Unit | SSiC |
|---|---|---|
| Density | g/cm3 | ≥3.0 |
| Open Porosity | Vol% | 0.2 |
| Vickers Hardness HV1 | kg/mm2 | ≥2100 |
| Thermal Conductivity(1200°C) | Wm-1K-1 | 45 |
| Modulus of Elasticity @ RT | GPa | 330 |
| Flexural Strength 20°C | MPa | 250 |
| Flexural Strength 1200°C | MPa | 280 |
| Coefficient of Thermal Expansion | 10-6K-1 | 4.5 |
| Max. Temperature of Application | ℃ | 1380 |
Customized Services
Product shape, size, and thickness can be customized.
