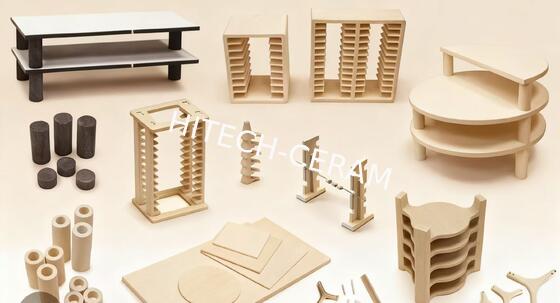

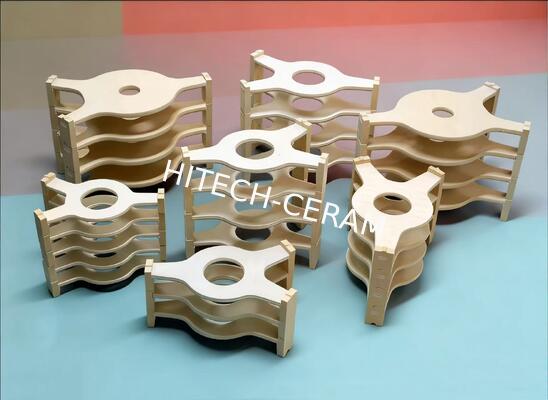

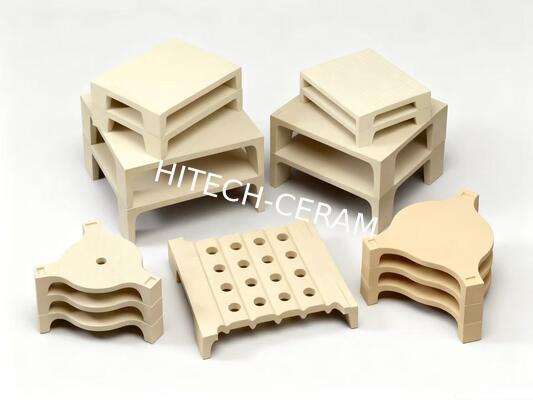

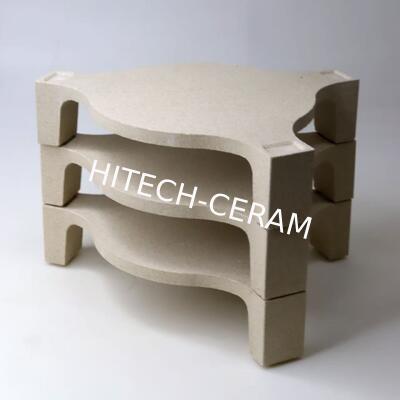

High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature

High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature
High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature

Large Image :  High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature

Product Details:
Contact Now

High Purity Zirconia Kiln Furniture with Ultra-Thin 2mm Plates for 1600°C Working Temperature

Description
Highlight:

Ultra-Thin 2mm Zirconia Kiln Furniture

,

1600°C Working Temperature Zirconia Plates

,

High Purity Kiln Furniture

High Purity Zirconia Kiln Furniture | Ultra-Thin 2mm Plates for Advanced Ceramic Sintering
Engineered for Excellence in High-Temperature Sintering
Our high-purity zirconia kiln furniture sets a new standard for reliability and performance in advanced ceramic manufacturing. Specially formulated for demanding sintering applications, these ultra-thin plates deliver unmatched thermal stability and chemical inertness where it matters most.
Why Choose Our Zirconia Kiln Furniture?
  • Exceptional Purity & Consistency: Manufactured from imported high-purity zirconia with superior material homogeneity
  • Advanced Thermal Shock Resistance: Withstands extreme thermal cycling without degradation or cracking
  • Perfect Chemical Inertness: Zero chemical reaction with fired components ensures product purity and performance consistency
  • Optimized Air Permeability: Controlled porosity enables uniform atmosphere distribution during critical firing processes
  • Ultra-Thin Profile: Revolutionary 2mm thickness replaces imported solutions while enhancing heat transfer efficiency
Technical Specifications
Material Composition (%)
Component ZR-99Y ZR-99C
ZrO₂ + Y₂O₃ ≥99% -
ZrO₂ + CaO - ≥99%
Al₂O₃ ≤0.2% ≤0.2%
SiO₂ ≤0.15% ≤0.15%
Fe₂O₃ ≤0.15% ≤0.15%
TiO₂ ≤0.1% ≤0.1%
MgO ≤0.1% ≤0.1%
Physical Properties
  • Maximum Working Temperature: ≥1600°C
  • Bulk Density: 4.3-4.4 g/cm³
  • Apparent Porosity: 22-25%
  • Thermal Expansion (1000 °C): 1.3-1.5%
  • Refractoriness Under Load: ≥1700°C
  • Color: White
  • Thickness: 2mm (custom sizes available)
Industry Applications
Thermistor Manufacturing
Ideal for PTC electronic material sintering, ensuring high purity and extended service life
Soft Ferrite Cores
Proven performance in magnetic core production with industry-validated reliability
MLCC Components
Ultra-thin design with superior permeability meets stringent electrical parameter requirements
Custom Refractory Solutions
Tailored zirconia formulations developed for specific customer operating conditions
Performance Advantages
  • Enhanced Product Yield: Minimizes contamination and ensures batch-to-batch consistency
  • Extended Service Life: Superior resistance to thermal fatigue reduces replacement frequency
  • Improved Thermal Efficiency: Thin profile enables faster heating/cooling cycles and energy savings
  • Process Optimization: Controlled material properties enable tighter process control parameters
Ideal For: Electronic ceramic manufacturers, research institutions, and advanced material producers requiring reliable high-temperature processing solutions.
