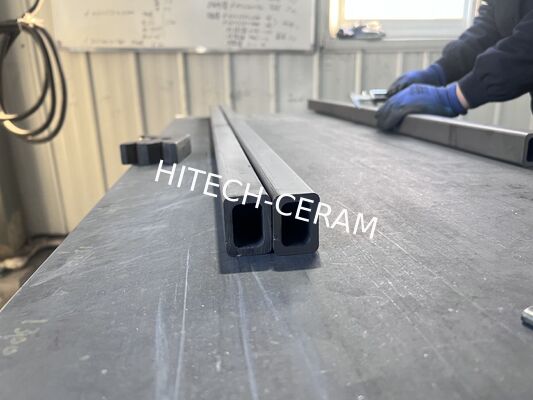

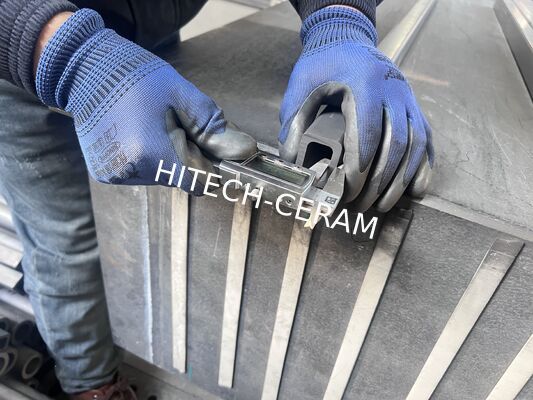

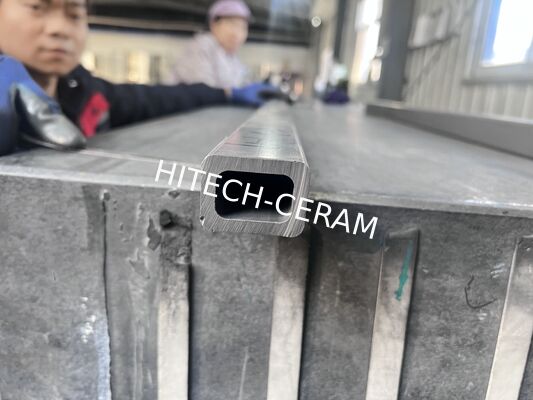

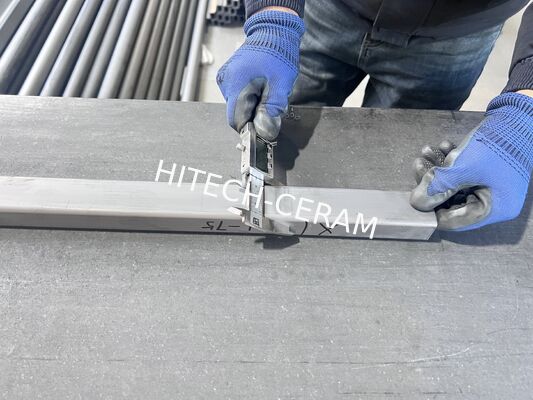

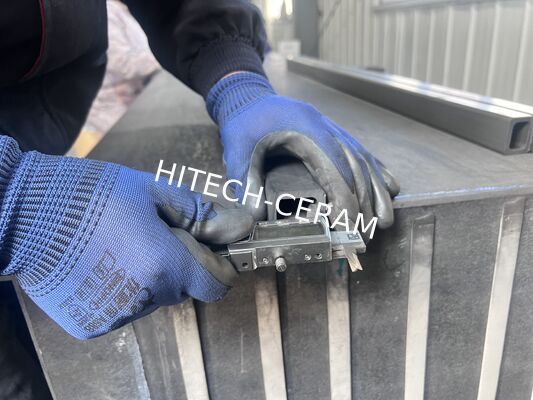

Premium-Grade Sintered Silicon Carbide (SSiC) Structural Beams 30 mm × 40 mm × 900 mm | Wall Thickness: 5 mm
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Summary
Premium-Grade Sintered Silicon Carbide (SSiC) Structural Beams Engineered for extreme‑temperature and high‑load environments, these anti‑creep structural beams are manufactured by extrusion and pressureless sintering at 2100-2200 °C. The resulting SSiC components offer unmatched mechanical strength, ...
Product Details
Highlight:
High-Temperature Structural Integrity SSiC Structural Beam
,Ultra-Low Thermal Expansion Silicon Carbide Ceramic Beam
,Superior Long-Term Creep Resistance Sintered Silicon Carbide Structural Beam
Usage:
Industry Usage
Chemical Composition:
Al2O3, SiO2
Sic Content:
85%
Maximum Temperature:
1600℃
Characteristics:
High Wear Resistance
Thermal Expansion Coefficient:
4.0-4.5 × 10^-6 /K
Material Composition:
4%Si >96%Sic
Working Temperature:
1650
Advantage:
Wear And Abrasion Resistance
Purity:
98%
Material:
Silicon Carbide Ceramic
Acid Alkaline Proof:
Excellent
Solubility:
Insoluble
Open Porosity:
<0.1%
Flexural Strength:
350-550 MPa
Product Description
Premium-Grade Sintered Silicon Carbide (SSiC) Structural Beams
Engineered for extreme‑temperature and high‑load environments, these anti‑creep structural beams are manufactured by extrusion and pressureless sintering at 2100-2200 °C. The resulting SSiC components offer unmatched mechanical strength, near‑zero thermal expansion, and exceptional resistance to creep under sustained thermal and mechanical stress.
Key Features & Engineering Advantages
- High‑Temperature Structural Integrity
Retains flexural strength of 300-400 MPa at temperatures up to 1650 °C. - Ultra‑Low Thermal Expansion
Coefficient of thermal expansion (CTE) of 4.0 × 10⁻⁶/K ensures dimensional stability under repeated thermal cycling. - Superior Long‑Term Creep Resistance
Maintains shape and load‑bearing capacity under continuous static loads at high temperature, guaranteeing kiln framework stability. - Exceptional Thermal Shock Resistance
Withstands rapid temperature differentials exceeding 350 °C, supported by high thermal conductivity (196 W/(m*K) at 20 °C). - Corrosion & Oxidation Resistance
Resistant to strong acids and alkalis; forms a self‑healing SiO₂ surface layer in oxidizing atmospheres at elevated temperatures.
Technical Specifications
Material: Pressureless Sintered SiC (SSiC)
| Property | Unit | Value |
|---|---|---|
| SiC content | vol% | ≥98 |
| Density (20 °C) | g/cm³ | ≥3.05 |
| Flexural strength (1300 °C) | MPa | 300-400 |
| Coefficient of thermal expansion | 10⁻⁶/K | 4.0 |
| Thermal conductivity (20 °C) | W/(m*K) | 196 |
| Maximum service temperature (in air) | °C | 1650 |
| Open porosity | vol% | ≈0 |
Load‑Bearing Performance
Custom load‑vs‑temperature curves and safety factors available upon request.
Primary Industrial Applications
SSiC square beams are employed as critical support elements in high‑temperature kilns and furnaces, including tunnel kilns and shuttle kilns, for the production of:
- Lithium‑ion & sodium‑battery cathode materials
- Advanced technical ceramics & electronic components
- Magnetic materials & powder‑metallurgy products
- High‑temperature refractories
Customization & Machining Services
We tailor beams to your specific kiln layout and mechanical requirements:
- Precision Machining
Drilling, slotting, end‑finishing, and surface grinding according to supplied drawings. - Profile Customization
Available in standard and bespoke geometries:- U‑section beams
- L‑section beams
- Beams with custom internal bore patterns
Standard Product Matrix
| Profile Type | Height (h) mm | Width (b) mm | Wall (δ) mm | Max. Length (mm) |
|---|---|---|---|---|
| Square‑hole standard | 30-55 | 20-50 | 5-6 | 3000-4000 |
| Round‑hole standard | 50-55 | 40-50 | 5-6 | Custom |
| Large square‑hole | 70-80 | 50-60 | 8-12 | Custom |
| Large round‑hole | 70-80 | 50-60 | 5-8 | Custom |
All dimensions can be customized. Standard tolerances: ±0.5 mm to ±0.8 mm.
Let us provide a solution tailored to your high‑temperature structural needs.
