Silicon Carbide Heating Elements (SiC) with 1625°C High-Temp Resistance, Corrosion Resistant, and Customized Sizes for Industrial Furnaces
Basic Properties
Place of Origin:
China
Brand Name:
KEGU
Model Number:
Customizable
Trading Properties
Price:
200-500 yuan/kg
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
2,000 pcs/month
Product Summary
Silicon Carbide (SiC) Heating Elements Silicon Carbide (SiC) Heating Elements are premium non-metallic electric heating components engineered for extreme-temperature industrial applications. Manufactured from high-quality green SiC powder, these elements undergo high-temperature siliconization and ...
Product Details
Highlight:
furnace sic bar
,furnace sic heater
,i type sic bar
Material:
SiC
Composition:SiC:
＞85%
Color:
Black
Density:
2.5~2.6g/cm³
Max. Service Temp:
1380℃
Flexural Strength:
70-90 MPa
Size:
Customized
Heat Conduction:
23.26 W/(m·℃)
Resistivity:
1000～2000 Ω·mm2/m
Tensile Strength:
39.2～49 MPa
Max. Service Temp.:
1500℃
Linear Thermal Expansion Coefficient (20-1500℃):
5×10⁻⁶/℃
Electrical Resistivity:
1000~2000Ω·mm²/m
Product Description

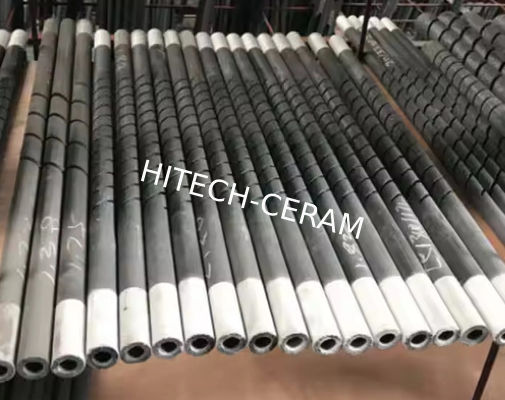

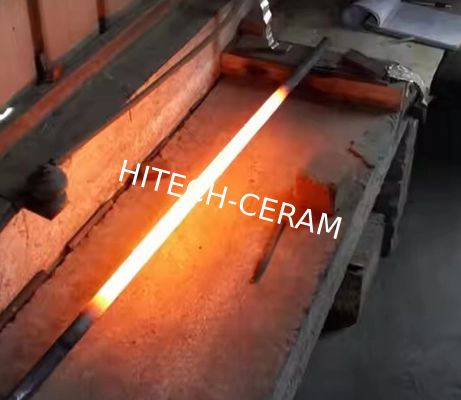

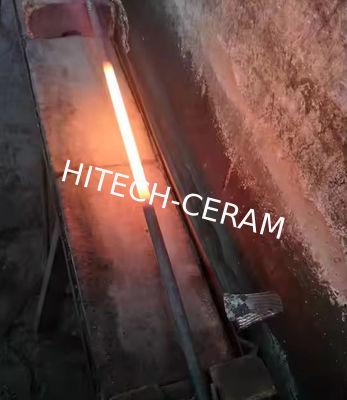

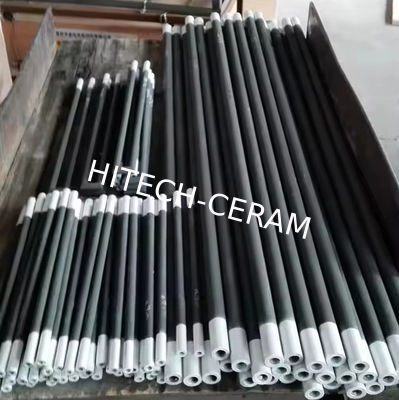

Silicon Carbide (SiC) Heating Elements
Silicon Carbide (SiC) Heating Elements are premium non-metallic electric heating components engineered for extreme-temperature industrial applications. Manufactured from high-quality green SiC powder, these elements undergo high-temperature siliconization and recrystallization processes. With exceptional temperature resistance up to 1625°C, they are ideal for ceramic firing, metallurgy, glass production, and laboratory furnaces.
Key Features & Advantages
- Extreme temperature resistance (up to 1625°C)
- Excellent oxidation and corrosion resistance
- Rapid heating capability
- Low thermal expansion coefficient
- High mechanical strength and durability
Technical Specifications
Physical Properties
| Specific Gravity | Bend Strength | Hardness | Tensile Strength | Porosity Rate | Radiancy |
|---|---|---|---|---|---|
| 2.6-28 g/cm³ | >300 kg | >9 MOH'S | >150 kg/cm³ | <30% | 0.85 |
Thermal Performance Data
| Temperature (°C) | Linear Expansion Coefficient (10⁻⁶/°C) | Heat Conductivity (kcal/m·h·°C) | Specific Heat (cal/g·°C) |
|---|---|---|---|
| 0 | / | / | 0.148 |
| 300 | 3.8 | / | / |
| 400 | / | / | 0.255 |
| 600 | 4.3 | 14-18 | / |
| 800 | / | / | 0.294 |
| 900 | 4.5 | / | / |
| 1100 | / | 12-16 | / |
| 1200 | 4.8 | / | 0.325 |
| 1300 | / | 10-14 | / |
| 1500 | 5.2 | / | / |
Product Range & Customization
We supply silicon carbide heating elements in various forms:
- Standard shapes: rods, tubes, bars with single or multiple legs
- Special configurations: dumbbells, double/single spirals
- Standard sizes: 0.5-3 inches diameter, 1-10 feet length
- Custom shapes and sizes available upon request
Industrial Applications
- Ceramic firing and construction materials
- Float glass production
- Non-ferrous metal melting
- Powder metallurgy and sintering
- Brazing processes
- Laboratory and research furnaces
Additional Offerings
We also provide other silicon carbide forms including bricks, foam, honeycomb, powders (micron and submicron), whiskers, nanoparticles, sponges, sputtering targets, and wool.
Quality Control
Miss. Scarlett.S
Deputy Head of Foreign Trade Department
- Email: scarlett.s@kegugroup.com
- Tel: 8616602956098
- WhatsApp: 8613390790728
-
WeChat:
Scarlettseren533
