High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces

High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces
High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces

Large Image :  High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces

Product Details:
Contact Now

High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces

Description
Highlight:

1625°C Working Temperature Silicon Carbide Heating Elements

,

Long Lifespan SiC Heating Elements

,

Customizable Configurations Industrial Heating Elements

High-Temperature Silicon Carbide Heating Elements for Industrial Furnaces
Silicon Carbide (SiC) heating elements are advanced non-metallic electric heaters engineered for extreme-temperature industrial applications. Manufactured from premium-grade green silicon carbide powders through high-temperature siliconization and recrystallization processes, these elements deliver superior performance in environments reaching up to 1625°C.
Key Features & Benefits
  • Exceptional Temperature Range: Continuous operation from 800°C to 1625°C
  • Extended Service Life: Superior oxidation and corrosion resistance for reduced replacement frequency
  • Rapid Heating Capability: High thermal conductivity enables fast temperature ramp-up

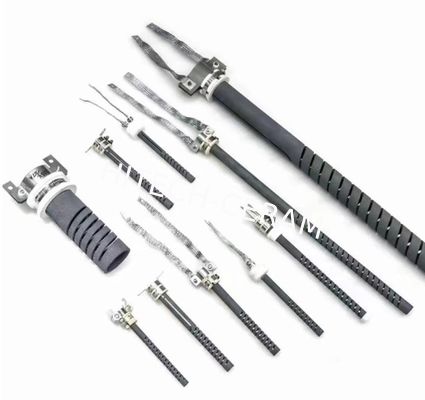

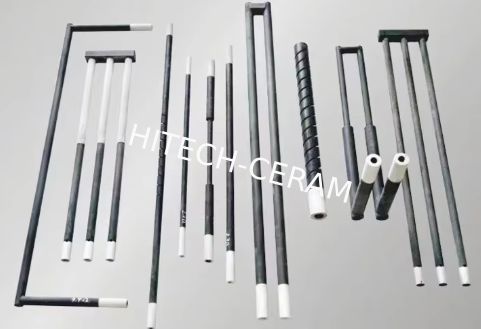

  • Versatile Configurations: Available in straight rods, U-type, W-type, H-type, and spiral designs
  • Custom Engineering: Tailored dimensions, resistance values, and shapes for specific furnace requirements
  • Proven Durability: Withstands harsh industrial atmospheres including reducing and oxidizing environments
Technical Specifications
Physical Properties
Property Value Unit
Specific Gravity 2.6-2.8 g/cm³
Bend Strength >300 kg
Hardness >9 Mohs
Tensile Strength >150 kg/cm³
Porosity Rate <30 %
Radiancy 0.85 -
Electrical & Thermal Characteristics
Parameter Specification
Working Temperature 800°C - 1625°C
Maximum Temperature 1500°C (Continuous)
SiC Content >99%
Power Source Electric (220V & Custom)
Voltage Compatibility Customizable to your requirements
Resistance Range Manufactured to your specifications
Dimensional Range
Dimension Available Range
Outer Diameter 0.5-3 inches (12-76 mm)
Hot Zone Length 150-1500 mm
Overall Length 1-10 feet (300-3000 mm)
Installation Options Vertical or Horizontal
Industrial Applications
  • Ceramic Firing & Kilns
  • Float Glass Production
  • Non-Ferrous Metal Melting
  • Powder Metallurgy Sintering
  • Brazing Operations
  • Magnetic Material Processing
  • Laboratory & Research Furnaces
  • Construction Materials Manufacturing
  • Energy & Mining Equipment
Product Variations & Customization
Beyond standard heating elements, we offer comprehensive SiC solutions including:
  • Multiple Configurations: U, W, H, spiral, and straight designs
  • Custom Dimensions: Tailored diameters, lengths, and hot/cold zone ratios
  • Specialized Forms: Bricks, foam, honeycomb structures, powders (micron and submicron), whiskers, nanoparticles, sponges, and sputtering targets
  • Electrical Customization: Specific resistance values, voltage compatibility, and terminal designs
Quality Assurance & Packaging
  • Quality Control: Rigorous testing of physical, electrical, and thermal properties
  • Secure Packaging: Multi-layer protective packaging ensuring damage-free delivery
  • Global Availability: Most configurations available for immediate shipment in volume quantities
  • Technical Support: Complete MSDS documentation and technical guidance provided
Ordering Information
When requesting a quote or placing an order, please specify:
  • Configuration Type: Straight rod, U, W, H, or spiral design
  • Critical Dimensions: Outer diameter, hot zone length, overall length
  • Electrical Requirements: Target resistance, operating voltage
  • Quantity Needed: From single units to volume production
  • Application Details: Operating temperature, atmosphere, and installation method
High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces 0 High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces 1 High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces 2 High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces 3 High-Temperature 1625°C Silicon Carbide Heating Elements with Long Lifespan and Customizable Configurations for Industrial Furnaces 4
Why Choose Our SiC Heating Elements?
  • Proven Performance: Trusted by manufacturers in ceramics, metallurgy, glass, and construction industries
  • Technical Expertise: Decades of experience in high-temperature element engineering
  • Custom Solutions: Ability to design elements for unique furnace configurations
  • Global Standards: Manufactured to international quality specifications
  • Comprehensive Support: From design consultation to installation guidance
