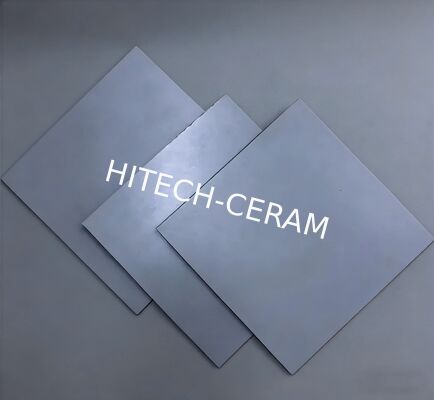

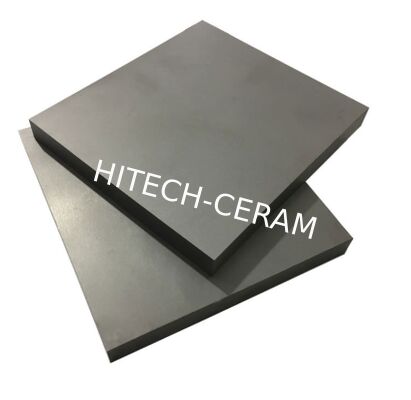

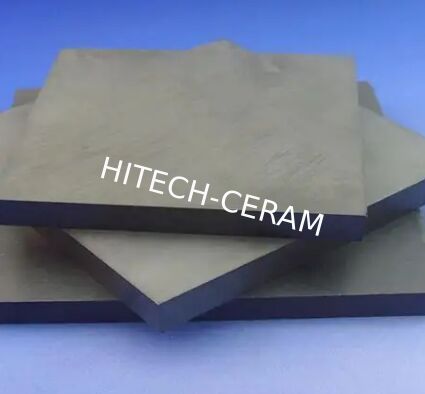

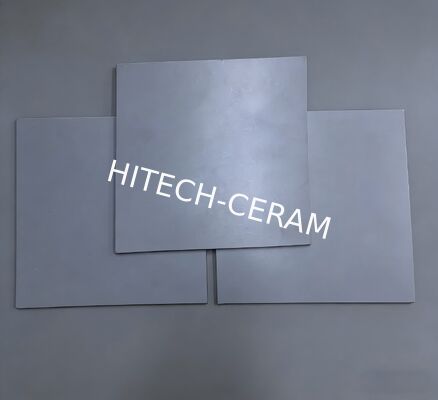

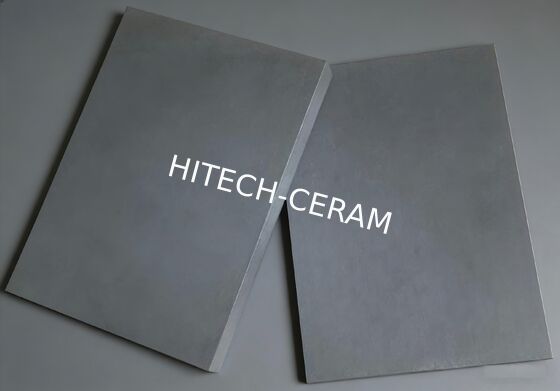

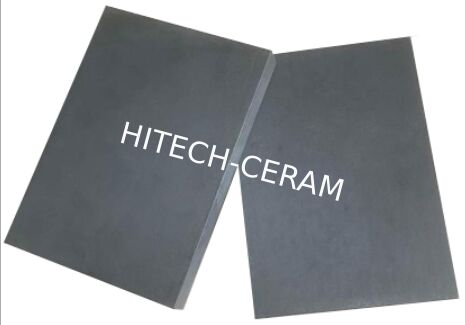

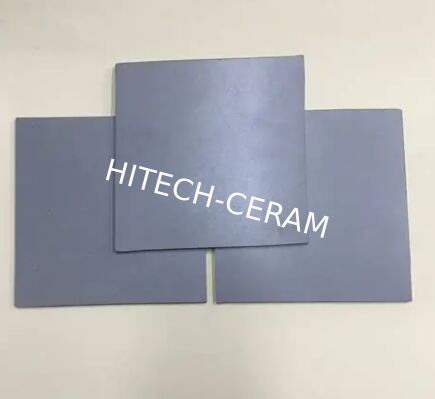

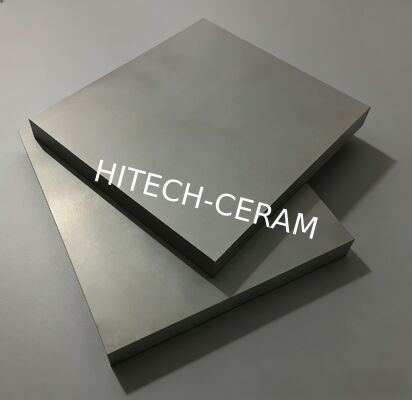

RBSiC Batt Plates with 1380°C Long-term Service Temperature, Exceptional Thermal Shock Resistance, and High Load-Bearing Capacity for Kiln Furniture

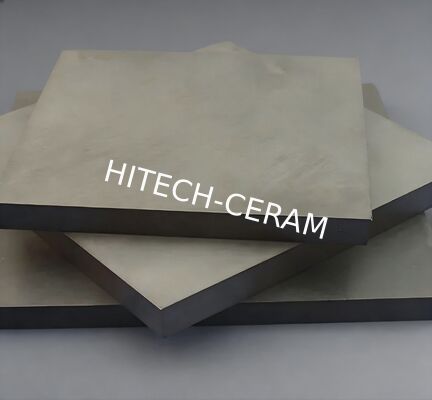

Large Image : RBSiC Batt Plates with 1380°C Long-term Service Temperature, Exceptional Thermal Shock Resistance, and High Load-Bearing Capacity for Kiln Furniture

Product Details:

Contact Now

RBSiC Batt Plates with 1380°C Long-term Service Temperature, Exceptional Thermal Shock Resistance, and High Load-Bearing Capacity for Kiln Furniture

Description

Long-term Service Temperature:	≤ 1380°C	Density:	≥ 3.02 G/cm³
Apparent Porosity:	≤ 0.1%	Flexural Strength:	250MPa (20°C); 281MPa (1200°C)
Elastic Modulus:	332 GPa(20°C); 300 GPa (1200°C)	Thermal Conductivity (1200 °C):	45W/m*K
Coefficient Of Thermal Expansion:	4.5K⁻¹ * 10⁻⁶	Mohs Hardness:	9
Acid & Alkali Resistance:	Excellent
Highlight:	1380°C Long-term Service Temperature RBSiC Batt Plates , Exceptional Thermal Shock Resistance Silicon Carbide Batt Plates , High Load-Bearing Capacity Kiln Furniture

Silicon Carbide (RBSiC) Batt Plates: High-Performance Kiln Furniture for Advanced Ceramics

In the demanding world of advanced ceramic firing—from sanitaryware to technical ceramics—the choice of kiln furniture is critical to achieving superior product quality, operational efficiency, and long-term cost-effectiveness. Our Reaction-Bonded Silicon Carbide (RBSiC) Batt Plates represent the pinnacle of material engineering, designed to meet the exacting standards of modern industrial kilns.

Engineered for Excellence in Extreme Environments

Manufactured using advanced reaction-bonding technology, our RBSiC batt plates are inherently suited to withstand the most challenging firing cycles. They offer exceptional structural stability and thermal performance under continuous high-temperature operation, making them the ideal choice for:

Sanitaryware Production
Fine Ceramics & Technical Ceramics
General Industrial Kiln Applications

Key Performance Data

Property	Unit	Typical Value / Data
Long-term Service Temperature	°C	≤ 1380
Density	g/cm³	≥ 3.02
Apparent Porosity	%	≤ 0.1
Flexural Strength	MPa	250 (20°C); 281 (1200°C)
Elastic Modulus	GPa	332 (20°C); 300 (1200°C)
Thermal Conductivity (1200 °C)	W/m*K	45
Coefficient of Thermal Expansion	K⁻¹ * 10⁻⁶	4.5
Mohs Hardness	-	9
Acid & Alkali Resistance	-	Excellent

Why Choose RBSiC Batt Plates?

Unmatched Thermal Stability & Low Creep: Maintain precise dimensional integrity over thousands of firing cycles, ensuring consistent product quality and reducing warping-related losses.
Superior Thermal Conductivity: Enables faster and more uniform heat distribution throughout the kiln, contributing to reduced energy consumption and shorter cycle times.
Exceptional Thermal Shock Resistance: Withstands rapid temperature changes without cracking, ideal for modern fast-fire schedules and reducing downtime.
High Load-Bearing Capacity & Mechanical Strength: Supports significant weight even at extreme temperatures, allowing for optimized kiln car loading and improved throughput.
Outstanding Chemical & Oxidation Resistance: Highly resistant to corrosive atmospheres and oxidation, leading to a dramatically extended service life compared to traditional alumina or cordierite materials.

Transform Your Kiln Performance

Upgrade to RBSiC batt plates to achieve:

Extended Service Life: Reduce the frequency and cost of kiln furniture replacement.
Increased Productivity: Enable faster firing cycles and higher loading densities.
Enhanced Product Quality: Minimize deformation and contamination for superior ceramic finishes.
Lower Total Cost of Ownership: Maximize operational uptime and energy efficiency for a stronger return on investment.

Technical Support & Custom Solutions

We provide comprehensive support, from product selection and kiln layout optimization to technical consultation. Our team can help you integrate RBSiC batt plates seamlessly into your existing or new kiln setups.

Ready to Elevate Your Firing Process?

Contact us today for detailed specifications, pricing, or to discuss a tailored solution for your specific ceramic application.
