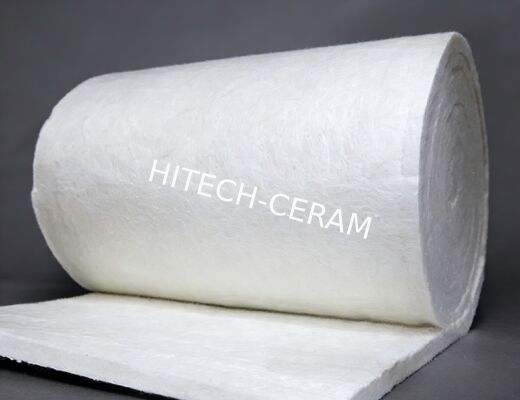

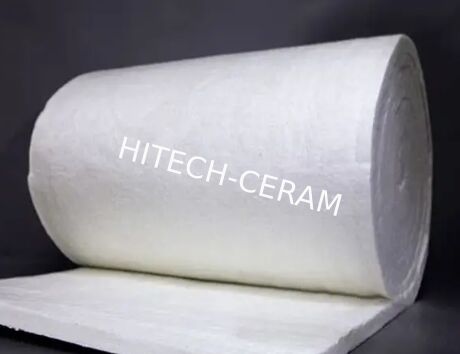

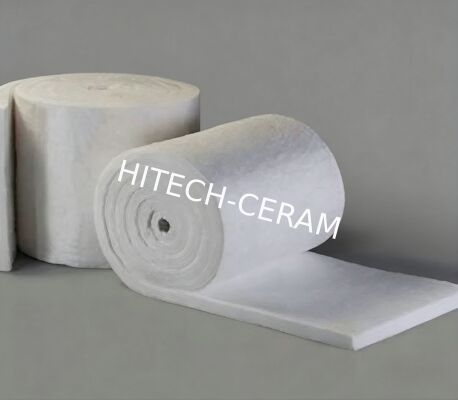

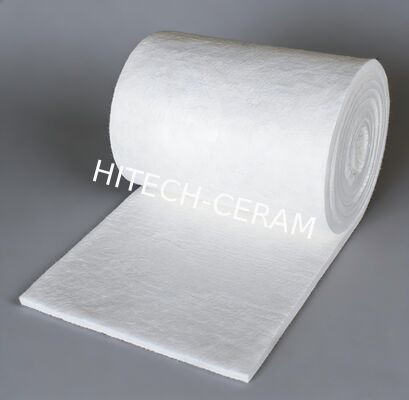

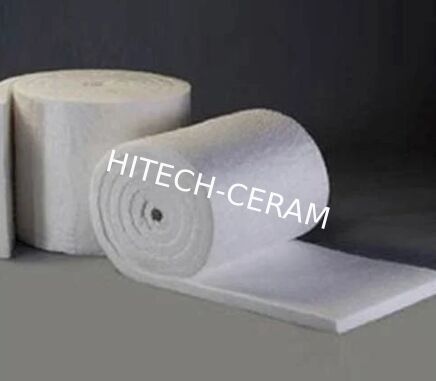

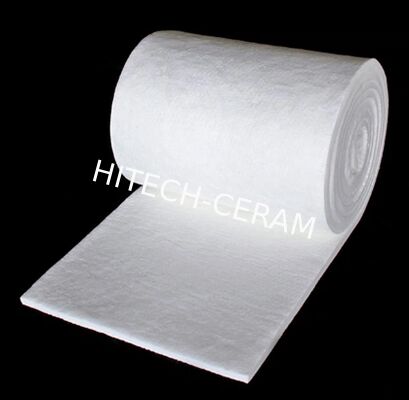

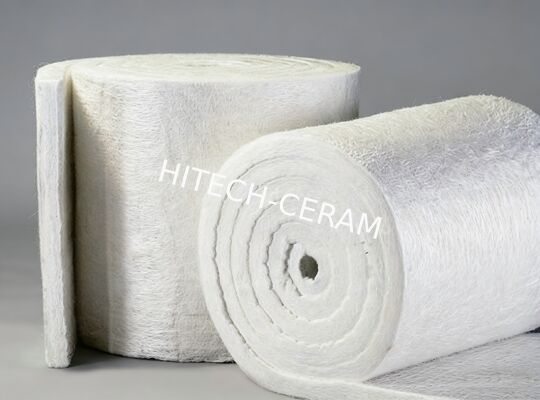

DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications

DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications
DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications

Large Image :  DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications

Product Details:
Contact Now

DH100/1600 Alumina Fiber Felt with 1600 g/m² Areal Density, 1300 °C Temperature Resistance, and 10.7 mm Thickness for High-Performance Applications

Description
Product Model: DH100/1600 Nominal Areal Density: 1600 G/m² (±10%)
Nominal Thickness: 10.7 Mm (±1.1 Mm) Recommended Installation Gap: 2.9 - 4.8 Mm
Gasket Bulk Density (GBD): 0.35 - 0.55 G/cm³ Long-Term Temperature Resistance: Up To 1300 °C
Composition: Alumina Fiber Content 90 - 97%, Binder Content 3 - 10% (average Approx. 5.5%)
Highlight:

1600 g/m² Areal Density Alumina Fiber Felt

,

1300 °C Temperature Resistance Aluminum Oxide Ceramic Felt

,

10.7 mm Thickness Al2O3 Fiber Felt

DH100/1600 Alumina Fiber Felt
Enhanced Performance, Providing Greater Support and Durability for Demanding Applications
Product Overview
The DH100/1600 model, with an increased areal density of 1600 g/m², represents a performance upgrade in our alumina fiber felt product line. Building upon the standard model, it significantly enhances mechanical strength, load-bearing capacity, and durability. Its thicker felt (nominal 10.7mm) and greater installation gap tolerance (2.9-4.8mm) enable it to withstand harsher vibration environments and greater thermal expansion, making it the ideal choice for heavy-duty engines and large substrate encapsulation.
Core Features
  • Enhanced Support and Fixation: Higher areal density and bulk density provide stronger radial holding force, securely fixing large or heavy catalyst substrates and effectively preventing displacement.
  • Outstanding Durability and Sealing: The thicker fibrous structure improves resistance to erosion and mechanical fatigue, maintaining excellent sealing for longer periods in high-backpressure, high-vibration environments like diesel engines, preventing exhaust gas leakage.
  • Greater Process Adaptability: The wider recommended installation gap range (2.9-4.8mm) offers higher design flexibility and fault tolerance for complex encapsulation processes and dimensional tolerances.
Key Performance Parameters
Parameter Specification
Nominal Areal Density 1600 g/m² (±10%)
Nominal Thickness 10.7 mm (±1.1 mm)
Recommended Installation Gap 2.9 - 4.8 mm
Gasket Bulk Density (GBD) 0.35 - 0.55 g/cm³
Long-Term Temperature Resistance Up to 1300 °C
Ideal Applications
Particularly suitable for Three-Way Catalytic Converters in higher-displacement gasoline engines and light/medium-duty diesel engines, as well as industrial high-temperature sealing applications with higher requirements for encapsulation reliability and service life.
Get Your Solution
Facing more demanding application environments? The DH100/1600 may provide the enhanced performance you need. Contact us for an in-depth discussion.
