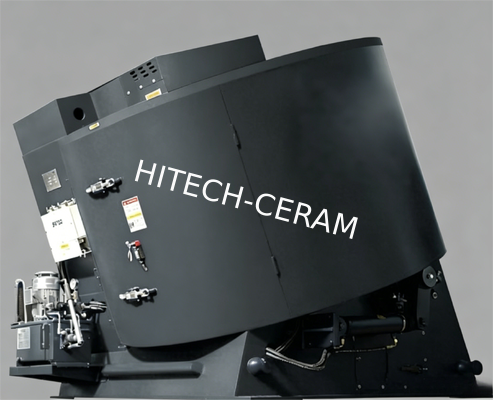

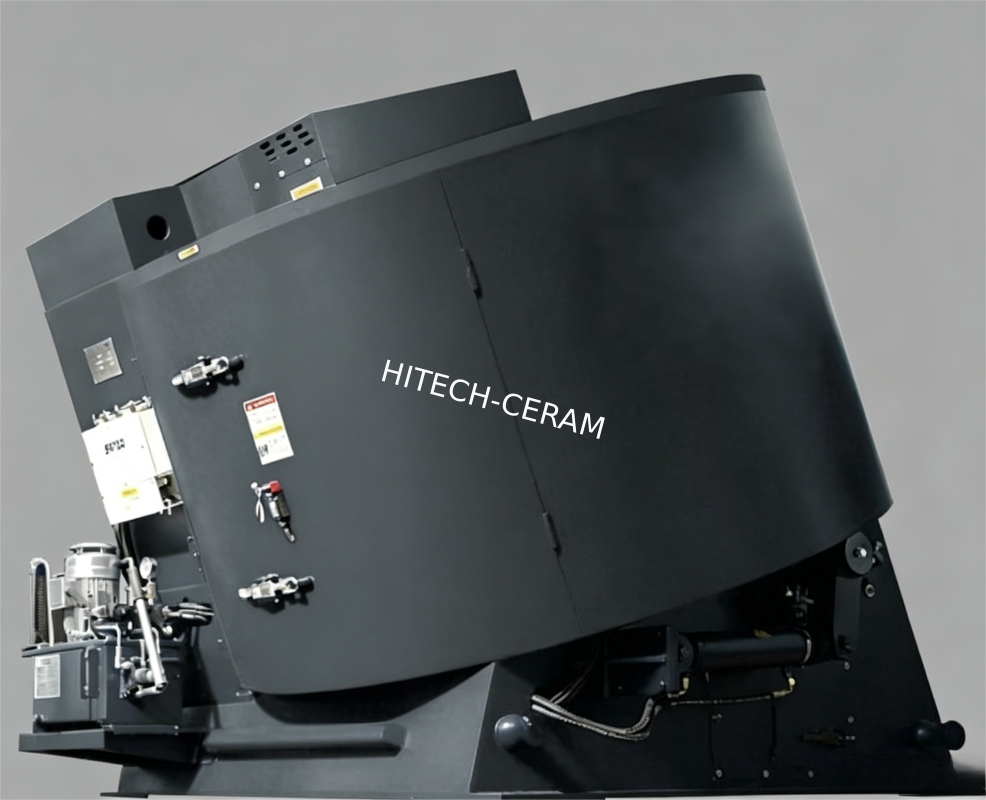

Heavy Duty High Intensity Mixer Industrial Grade

Heavy Duty High Intensity Mixer Industrial Grade
Heavy Duty High Intensity Mixer Industrial Grade

Large Image :  Heavy Duty High Intensity Mixer Industrial Grade

Product Details:
Place of Origin: China
Brand Name: KeGu
Model Number: High Intensity Mixer
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Price is negotiable
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: Negotiable
Contact Now

Heavy Duty High Intensity Mixer Industrial Grade

Description
Highlight:

Heavy Duty High Intensity Mixer

,

Industrial Grade High Intensity Mixer

High Intensity Mixer
Function Overview
Functions: Mixing, homogenizing, kneading, plasticizing, dispersing, granulating, agglomerating, emulsifying, coating, pulping, balling, and more.
Applications: Refractory materials, lithium batteries, ceramics, foundry, metallurgy, environmental protection, building materials, chemical industry, compound fertilizer.
Working Principle
The heavy-duty mixer achieves optimal mixing uniformity in the shortest possible time through the coordinated action of the high-speed rotor, mixing pan, and multi-functional scraper.
The mixing pan, tilted at a specific angle, conveys material upward during rotation. When material reaches a certain height, it falls downward due to gravity, forming a coarse mix through horizontal and vertical movement.
Material is then conveyed upward into the mixing zone of the eccentrically positioned high-speed rotor, where it undergoes high-intensity mixing motion, resulting in a fine, high-precision mix.
The fixed multi-functional scraper disrupts material flow during mixing and directs material toward the high-speed rotor's mixing zone. It also prevents material from adhering to pan walls and bottom, ensuring 100% material participation in the mixing process.
Typically, the rotating mixing pan and high-speed rotor rotate in opposite directions for the most intense mixing motion. However, to meet specific process requirements, they can also be set to rotate in the same direction.
During material mixing, rotational speeds of the rotating drum and high-speed rotor can be preset according to process requirements. Speed adjustments can also be made during operation to achieve interleaved mixing processes.
Key Characteristics
  • Efficient and stable mixing and homogenizing effect - Utilizes counter-current mixing principle with scientifically designed components to ensure optimal mixing uniformity in minimal time.
  • Satisfies preparation requirements of various materials - Mature mixing technology allows independent adjustment of component speeds, offering wide applicability for material mixing and preparation.
  • Adaptable to various installation scenarios - Compact structure, modular design, small footprint, and easy installation and maintenance. Suitable for new production lines and retrofitting existing lines.
Technical Parameters
Model Volume (L) Weight (KG) Discharge Method
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
C Series
Model Volume (L) Weight (KG) Discharge Method
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
SIMT25 1-6 10 Manual Discharge
For further information or to discuss your specific requirements, please contact us directly.
